Spektrum RC A4040 MT/HS Micro Metal Gear Servo (High Voltage)

Sale!

Spektrum RC A4040 MT/HS Micro Metal Gear Servo (High Voltage)

Spektrum RC A4040 MT/HS Micro Metal Gear Servo (High Voltage) - Image 2

Spektrum RC A4040 MT/HS Micro Metal Gear Servo (High Voltage) - Image 3

Spektrum RC A4040 MT/HS Micro Metal Gear Servo (High Voltage) - Image 4

Spektrum RC A4040 MT/HS Micro Metal Gear Servo (High Voltage) - Image 5

Spektrum RC A4040 MT/HS Micro Metal Gear Servo (High Voltage) - Image 6

Spektrum RC A4040 MT/HS Micro Metal Gear Servo (High Voltage) -Furitek shop spmsa4040 1

Spektrum RC A4040 MT/HS Micro Metal Gear Servo (High Voltage) -Furitek shop spmsa4040 2

Spektrum RC A4040 MT/HS Micro Metal Gear Servo (High Voltage) -Furitek shop spmsa4040 3

Spektrum RC A4040 MT/HS Micro Metal Gear Servo (High Voltage) -Furitek shop spmsa4040 4

Spektrum RC A4040 MT/HS Micro Metal Gear Servo (High Voltage) -Furitek shop spmsa4040 5

Original price was: $54.99.Current price is: $38.49.

SKU: 1397461 Categories: Mini & Micro, Servos Tag: Spektrum RC

Risk-Free Shopping with Returns
Experience the difference quality makes.
100% Quality Satisfaction
Streamlined service, designed for your convenience.

Description
Reviews (0)

The Spektrum RC A4040 MT/HS Micro Metal Gear Servo is a great option for high performance smaller sport planes (15-25 size). High voltage capable, this servo can produce 96oz of toque at 0.094sec/60° with 8.4V input. A low wear metal gear drive train is supported by a single ball bearing for smooth operation. Completing the build is a center aluminum band for added reliability and durability. Take to the skies with the Spektrum RC A4040 servo.

Features:

High Voltage (HV) capable (4.8-8.4v input range)
Micro size is perfectly suited for parkflyer and sport size model aircraft
Class leading performance (7.0kg-cm and .094 sec/60° @8.4v)
Aluminum servo case helps keep operating temperatures low
Low wear and tightly meshed all metal gear train
Bearing supported drive train helps maximize smooth operation
Over Current and Temperature protection
Operating Frequency: 200hz to 333hz

Specifications:

Input Voltage: 4.8V-8.4V
Overload Protection: No
Motor Type: Coreless Brushed
Product Weight: 1.2oz (34g)
Spline Count: 23 – Tooth
Deadband: <1us
Servo Speed:

6.0V: 0.14 sec/60 deg
7.4V: 0.11 sec/60 deg
8.4V: 0.094 sec/60 deg

Torque:

6.0V: 84 oz-in (6.05kg-cm)
7.4V: 91 oz-in (6.55kg-cm)
8.4V: 96 oz-in (7.00kg-cm)

Bearing: Single BB

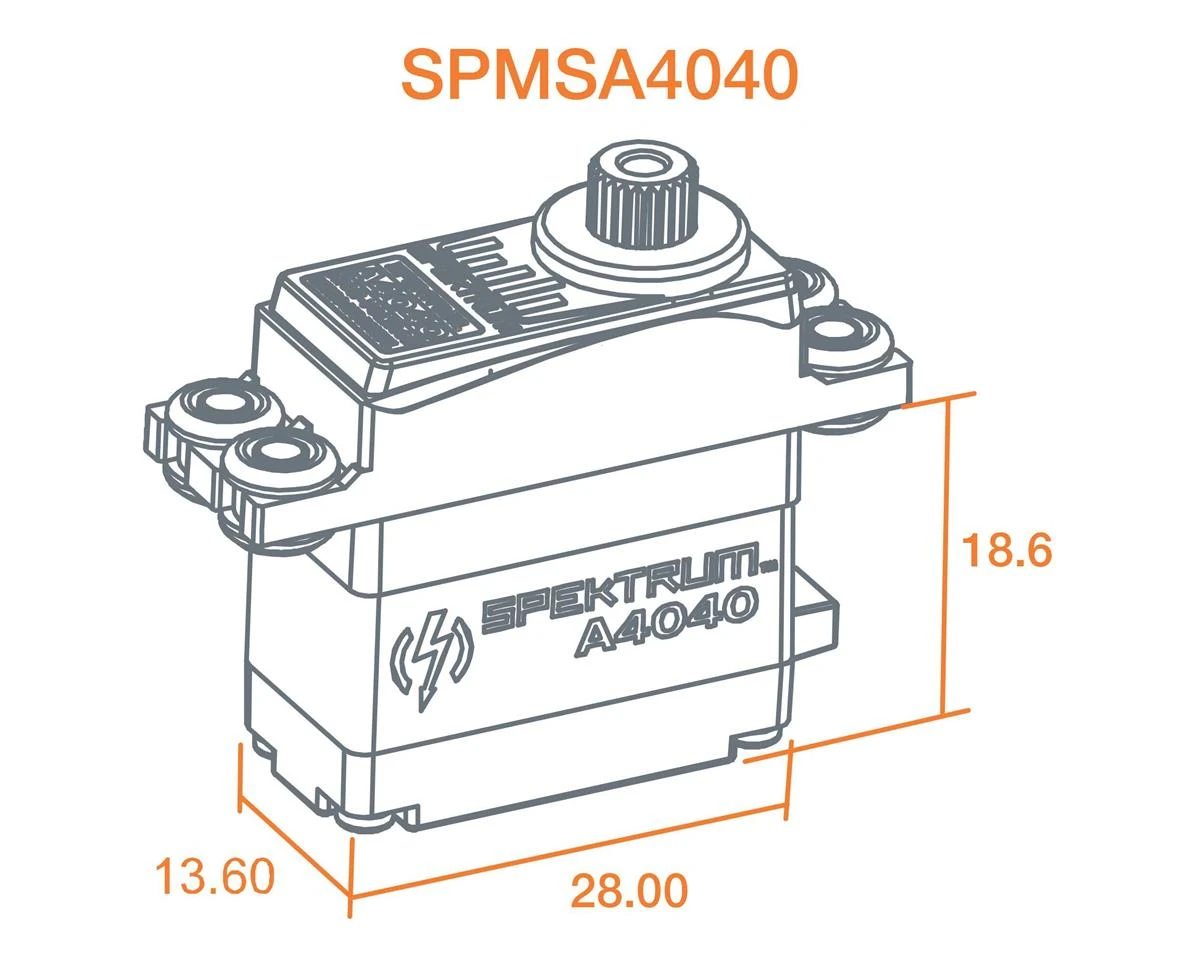

Length: 1.1″ (28 mm)
Width: 0.54″ (13.7 mm)
Height: 1.23″ (31.24 mm)
Programmable: No
Servo Type: Digital
Gear Type: Metal

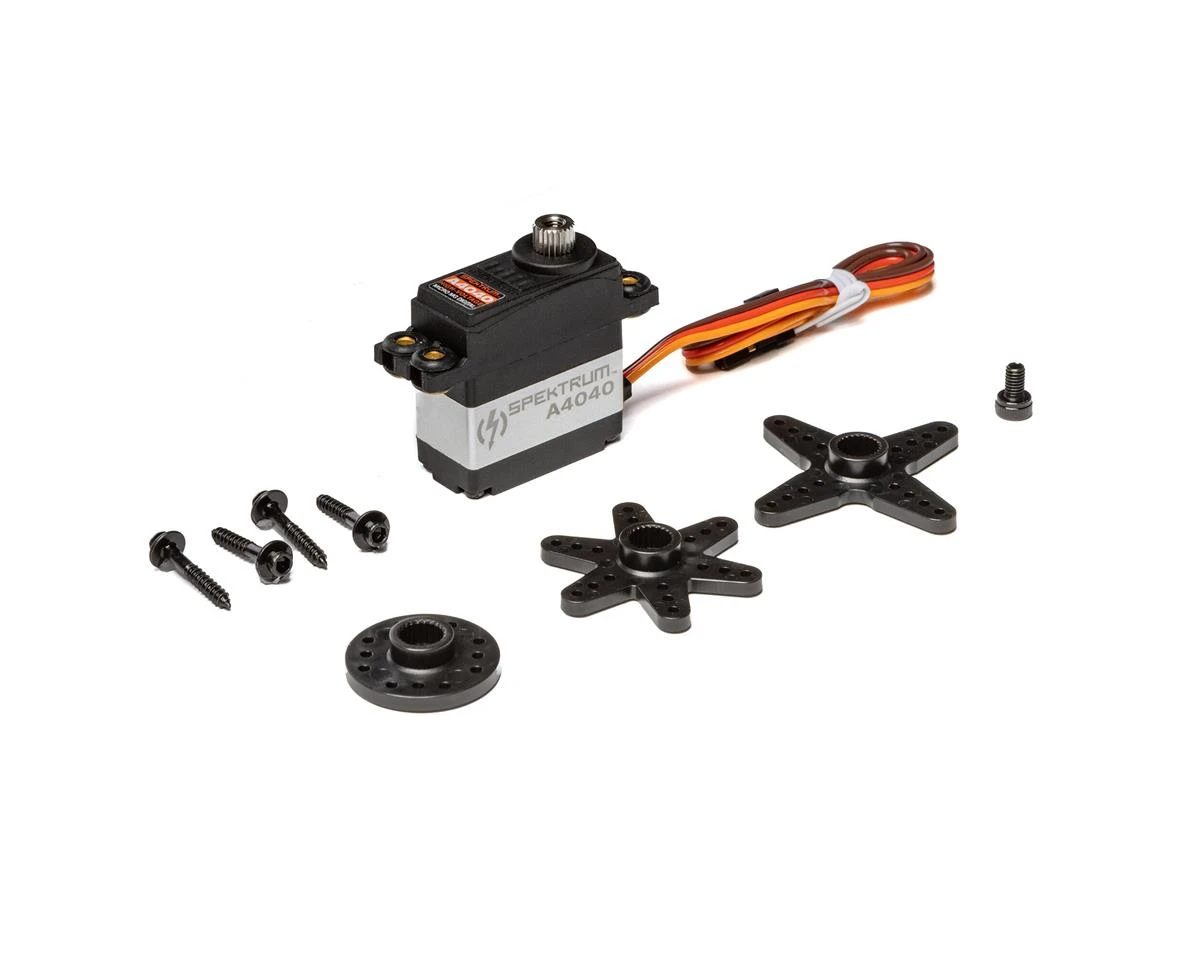

Includes:

(1) A4040 Micro Digital Servo
(4) Pre-installed Mounting Grommets and Eyelets With Hardware
(3) Plastic Servo Arms
(1) Screw
