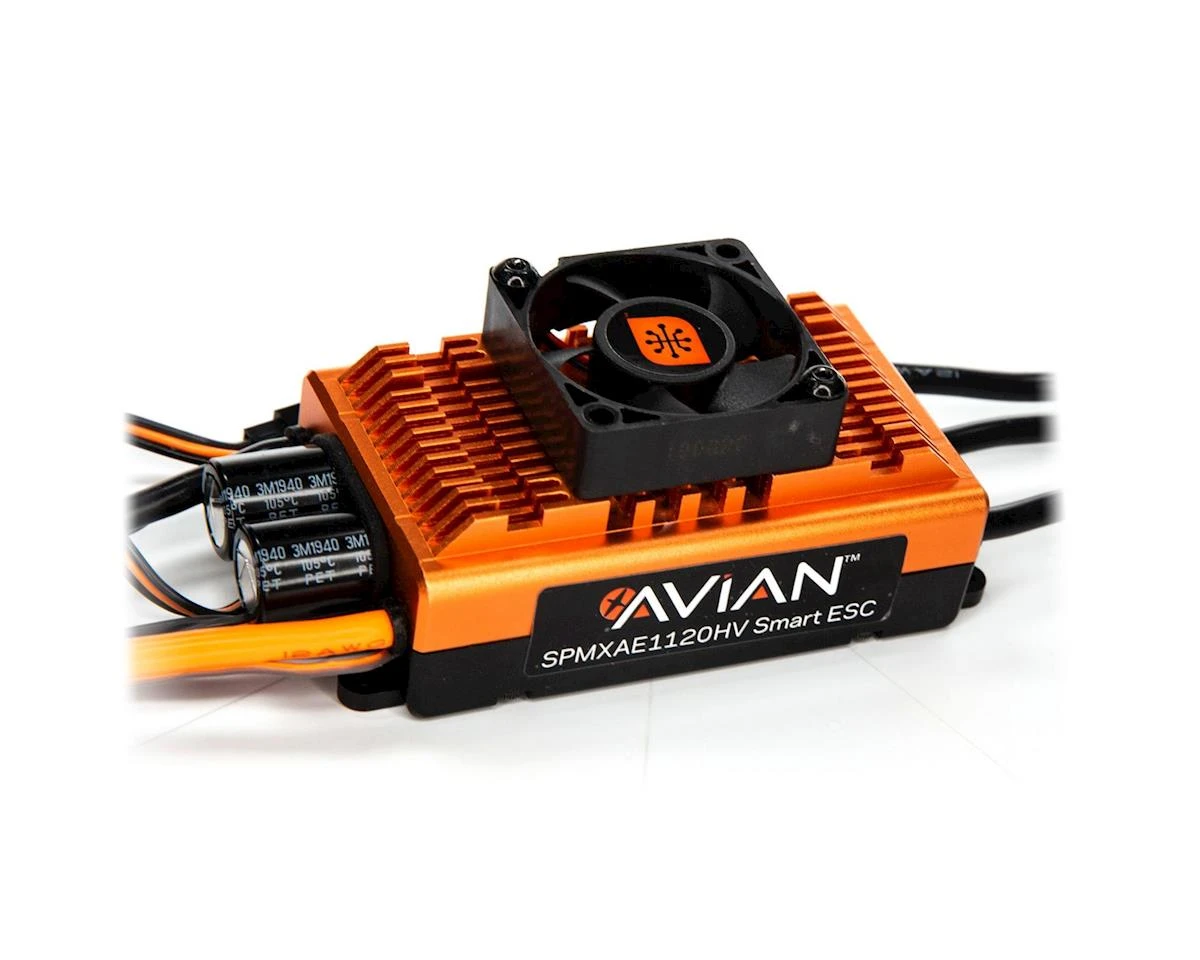

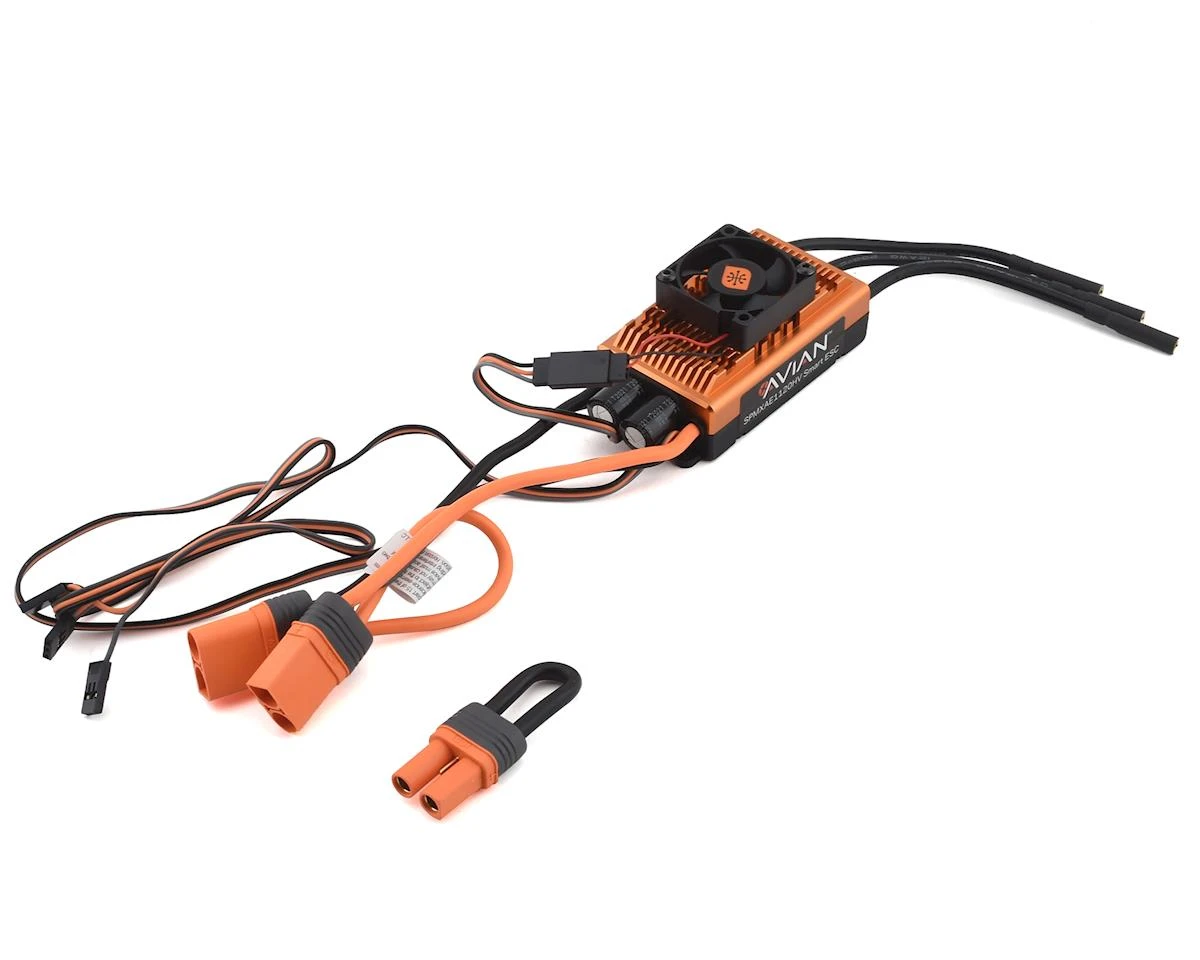

Spektrum Avian 120 Amp Brushless Smart ESC. Like every component in the Spektrum Smart ecosystem, Avian Smart ESCs combine “plug-and-play” simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your aircraft imaginable.
Avian Smart Air ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Avian Smart Air ESCs give you an extra layer of confidence that your electronics are all operating at their best.
With Avian Smart Air ESCs, you’ll be better connected to your aircraft than ever before — without installing extra components that all work independently of each other. You won’t need extra wires, modules, or links. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, cell balance, temperature and RPM.
Avian ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You’re able to adjust settings as needed to boost performance on the go. The Avian Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
Features:
- Smart all-in-one telemetry
- Fast, powerful 32-bit ARM M4 processor
- Multiple options for easy programming:
- Smart ESC Programming Box
- SmartLink USB Updating and Programmer application
- Throttle stick programming
- Multi-point protection:
- Over-current protection
- Automatic LiPo low-voltage cutoff
- Thermal protection
- Failsafe protection
- Developed and designed by Spektrumâ„¢ engineers, in partnership with the industry’s leading ESC manufacturer
- Up to 12S input voltage for high speed and top performance
- Ideal for giant scale fixed wing aircraft and 600 sized and above helicopters
- Compact for easy installation
- Ready to install — no soldering required
- Rugged plastic case
- Heat dissipating design
- Tabs included for a hard mount
- Aluminum heat sink for high efficiency
- Cooling fan
- Adjustable high-power BEC
- Dual BEC power connectors
- Firmware updatable through the Smart ESC Programming Box and SmartLink PC application
- High heat-resistant ICâ„¢ connectors, backwards compatible with ECâ„¢ connectors
- Limited 1-year warranty
Specifications:
Amperage: 120A
Application: Aircraft
Auto Cutoff: Yes
Battery Input Lead: 12 AWG, 5.3″ (135mm)
BEC: Yes
BEC Continuous Current: 8A
BEC Maximum Burst Current: 25A
BEC Type: Switch mode
BEC Voltage: 6.0V / 7.4V / 8.4V
Brakes: Yes
Connector Type: IC5
Forward: Yes
Input Voltage: 22.2 – 44.4V
Low-Voltage Cutoff Programmable: Yes
Maximum Burst Current: 140A
Maximum Continuous Current: 120A
Motor Output Lead: 12 AWG, 4.3″ (110mm)
Output: 120A
Output Connector: 4mm female bullet
Overload Protection: Yes
Product Height: 1.1″ (28 mm)
Product Length: 3.5″ (89 mm)
Product Weight: 0.43lbs (195g)
Product Width: 1.8″ (46 mm)
Programmable: Yes
Reverse: No
Wire Gauge: 12 AWG
Reverse: No
Wire Gauge: 12 AWG
Includes:
- (1) Spektrumâ„¢ Avianâ„¢ Smart ESC
- (1) Spektrum Smart sticker sheet
- (1) Product Manual
Needed to Complete:
- Spektrumâ„¢ Aircraft Receiver
- Spektrum Smart Technology LiPo Battery
- Spektrum TransmitterÂ
This product is expected to become available for purchase on Wednesday, April 5, 2023
