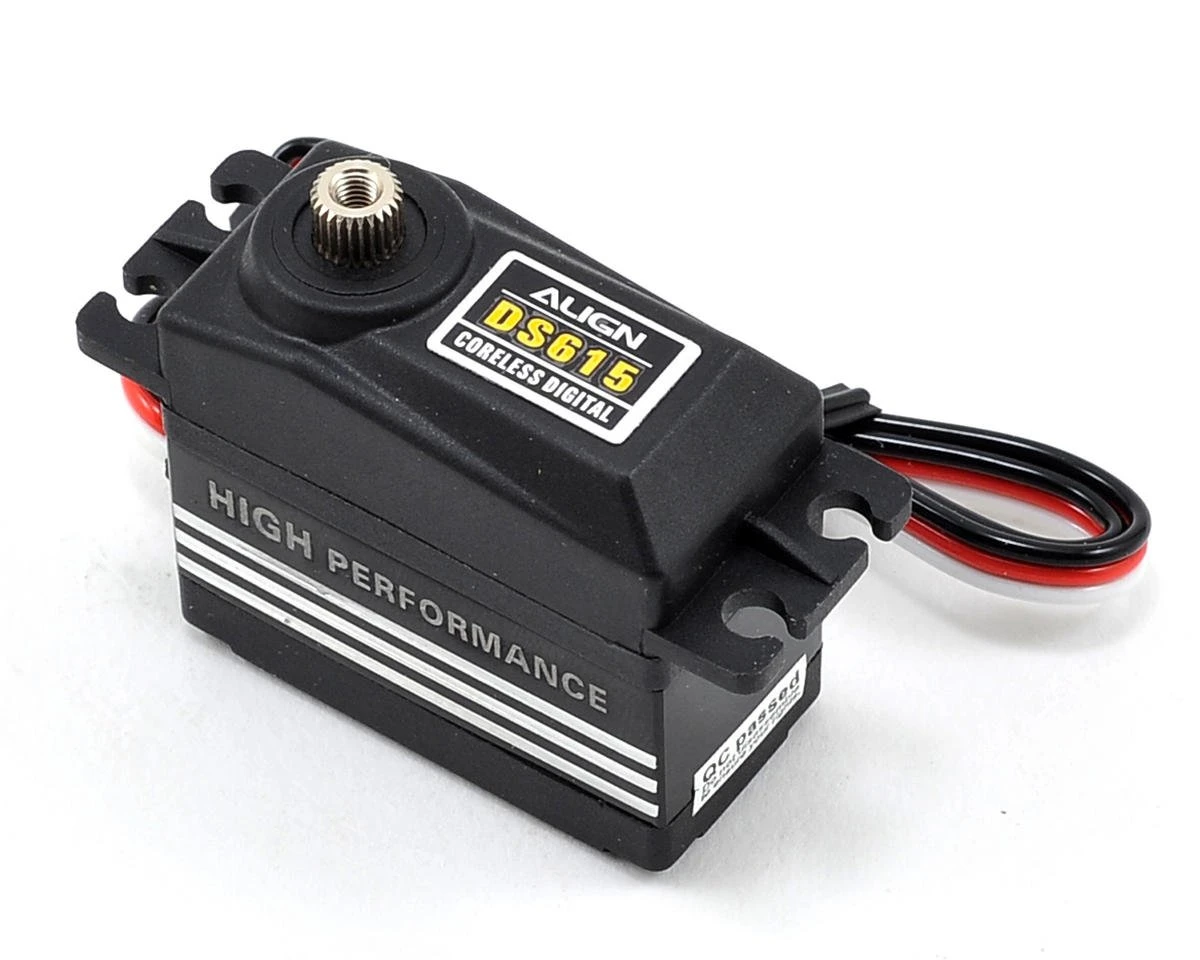

ALIGN DS615 Digital High Torque Coreless Metal Gear Servo

This is an Align DS615 Digital High Torque Coreless Metal Gear Servo.

Features:

• Higher performance, increased output torque, faster reaction time, resulting in higher holding power during momentary pauses between 3D maneuvers, providing precise control feel.
• Coreless Motor Design for fast speed, high efficiency, and low power consumption.
• Hardened high strength super alloy gears that increase the lifespan.
• Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo’s high efficiency.
• Supports digital & analog control signal.
• Powerful and precise servo, suitable for T-Rex 600/700 swashplate and rudder use.

Specifications:

• Stall torque:
• @ 4.8V: 144 oz-in (10.4kg.cm)
• @ 6.0V: 177 oz-in (12.8kg.cm)
• Speed:
• @ 4.8V: 0.09sec/60°
• @ 6.0V: 0.07sec/60°
• Rating voltage: DC 4.8-6V
• Temperature range: -20°C~+60°C
• Dimension: 40.1×20.1×37.3mm
• Weight: 56g
• Band: 1520?s

Includes:

• (2) Servo rudder piece
• (1) Set screw
• (4) Rubber damper
• (4) Brass grommet
• (4) Socket button head tapping screw (T2.6x12mm)
• (1) F Servo horn

This product was added to our catalog on August 20, 2012
