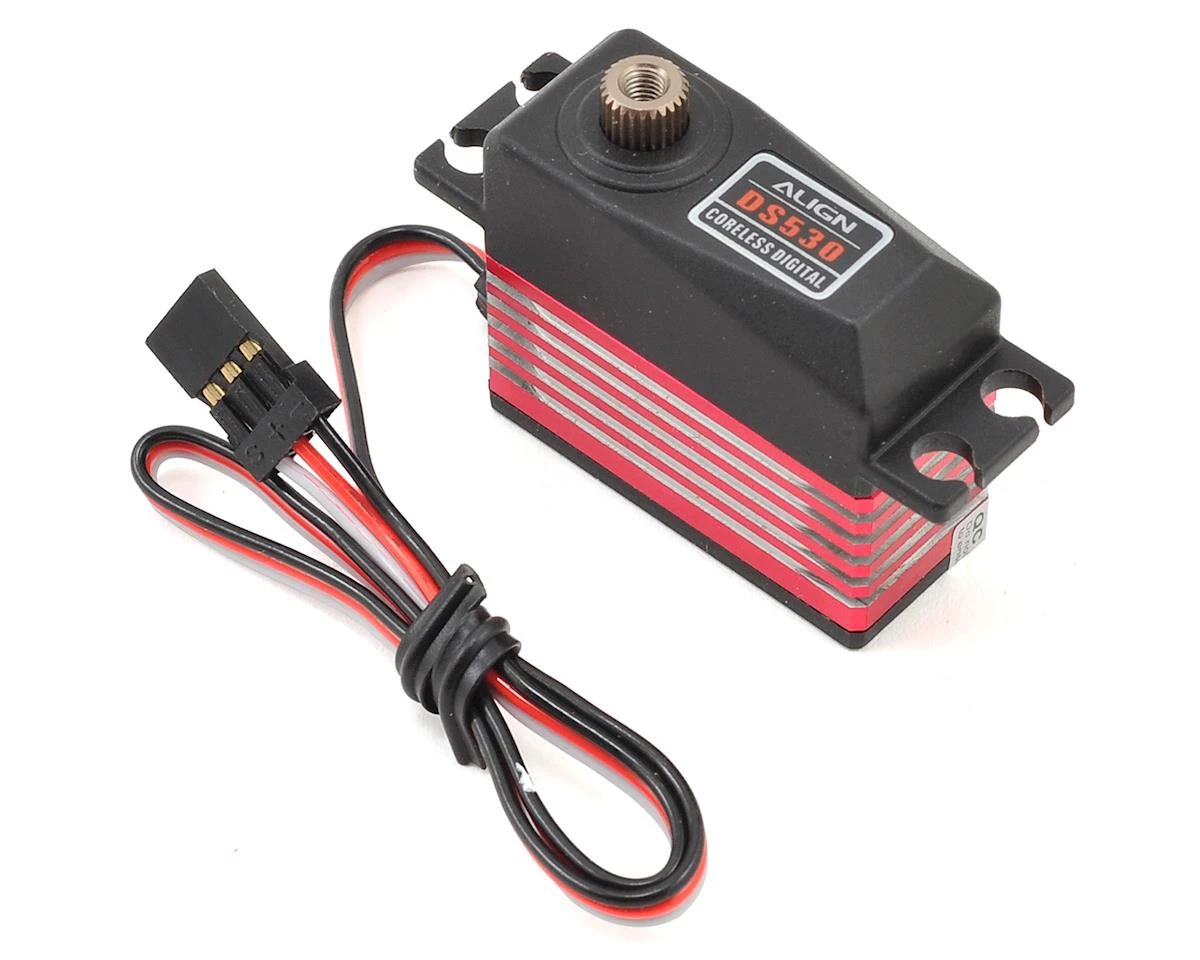

ALIGN DS530 Digital Mini Servo

This is an Align DS530 Digital Servo. This metal gear servo features an aluminum middle case and high resolution for precise movements on cyclic applications for helicopters.

Features:

• Coreless Motor Design for fast speed, high efficiency, and low power consumption
• High Voltage Support
• High rigidity metal gears with high precision and durable structure characteristics
• Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo’s high efficiency
• Powerful and precise servo suitable for T-Rex 500 CCPM cyclic use

Specifications:

• Torque:
• @ 6.0V: 90.22oz-in (6.5kg-cm)
• @ 8.4V: 124.92oz-in (9.0kg-cm)
• Speed:
• @6.0V: 0.085sec/60°
• @8.4V: 0.065sec/60°
• Voltage: DC 4.8-8.4V
• Temperature Range: -F°F ~ 140F° (-20°C ~ +60°C)
• Dimension: 35.1×15.1x29mm
• Weight: 29g
• Band: 1520?s standard band

Included Accessories:

• (4) Rubber damper
• (4) Brass grommet
• (4) Socket button head tapping screw (T2.6x12mm)
• (1) D5AF Servo horn

This product was added to our catalog on October 4, 2016
