Xnova XTS 4530-480KV 5+5YY Brushless Motor W/6mm Shaft (Shaft A)

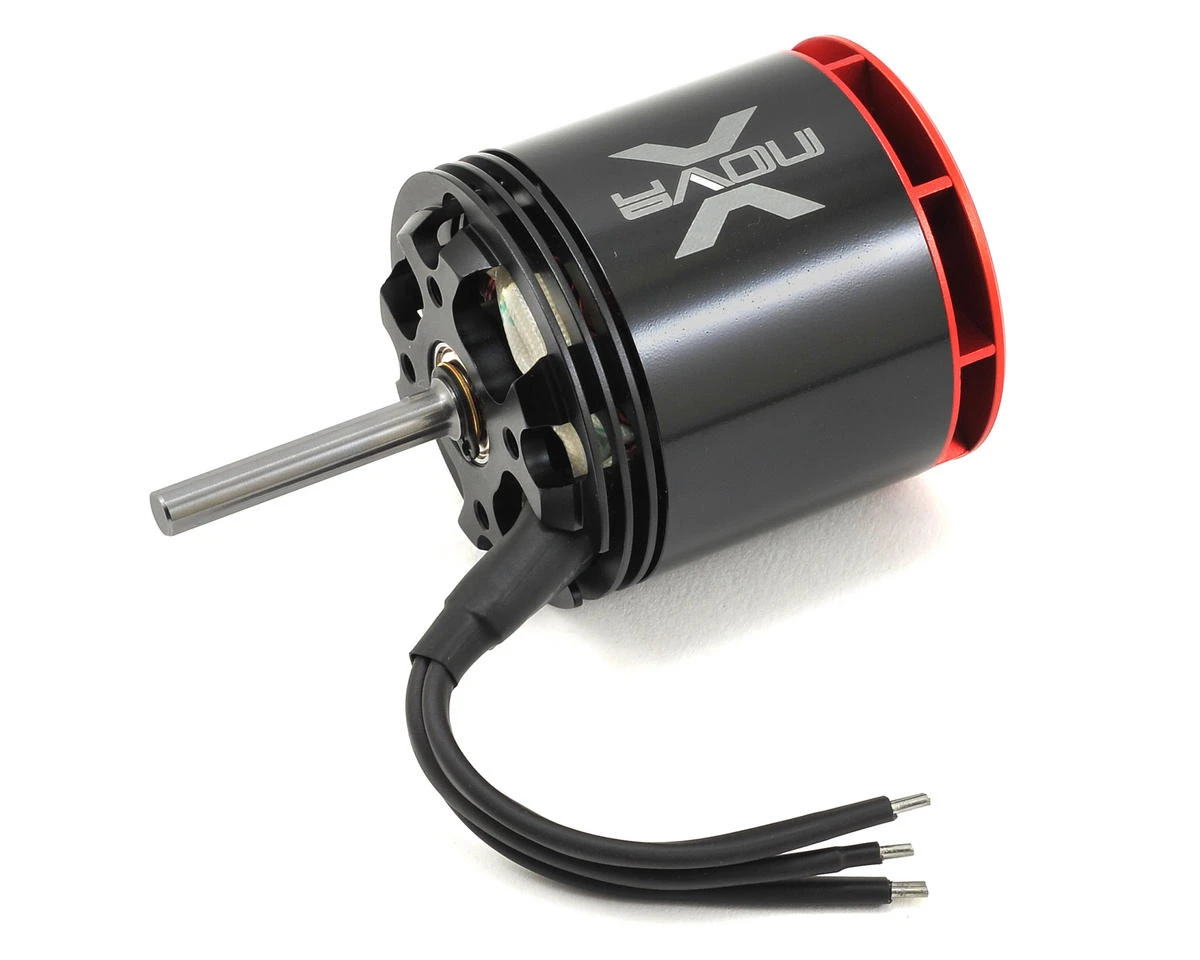

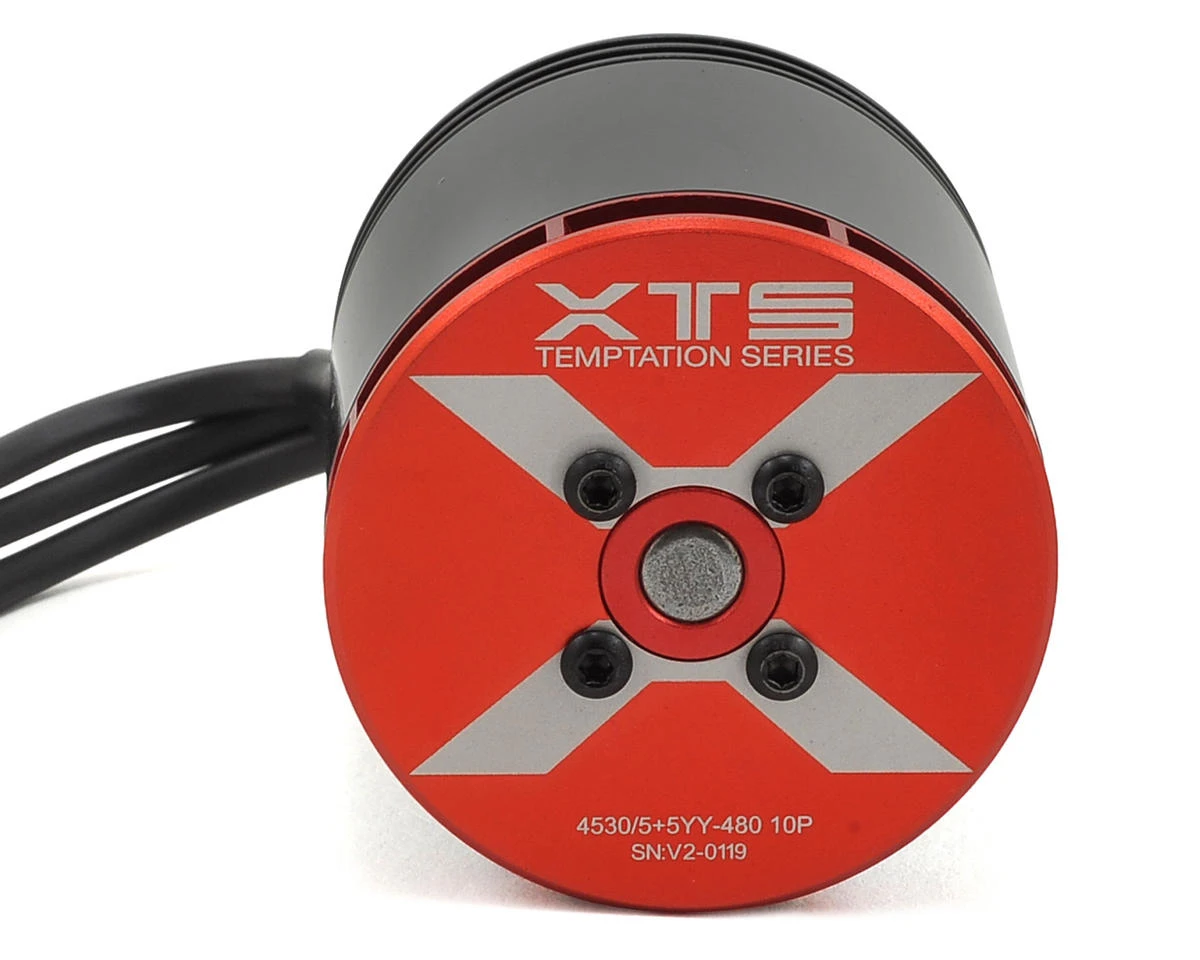

This is the Xnova XTS 4530-480KV 5+5YY Brushless Motor, with a 6mm “Type A” 38mm shaft. The Xnova XTS series motors are developed and optimized for pure performance. The Xnova XTS series 4530 models are specially designed for 700-800mm helicopters to deliver the highest power to weight ratio. The 480kV model is recommended for extreme 3D flying and is optimized for 14S applications, but is compatible with 12S to 14S setups. All XTS motors are 100% hand-wound and each motor runs through a complete quality control test before shipping.

Features:

• Designed for extreme 3D flying
• Developed for 700-800mm helicopters
• Optimized for 14S applications, but is compatible with 12S to 14S setups
• High quality Neo Magnets, heat resistant up to 150 degree C
• Specialized wires, heat resistance up to 300 degree C
• Precise balanced
• High performance stator metal sheet
• High quality NMB bearings
• Marked leading high efficiency up to 93%
• Cooler running
• Superb quality and machining of CNC parts
• Improved torque and power output
• 1.4mm thick wire

Specifications:
Slots & Poles: 12n10p
Winding T: 5+5 YY with 1.4mm thick wire
rpm/V: 480
Volt (V): 10 | 20 | 30 | 40
Io(A): 1.4 | 2 | 2.8 | 3.5
Rm (mohm): 12 | 12 | 12 | 12
Weight (without connector): 535g
Body Length (no shaft): 60.5mm
Diameter: 55.7mm
Shaft Length: 38mm
Shaft Dia.: 6mm
Mounting Holes CTC Distance: 30mm
Mounting Screw: 4×07
Max Eff. Curr.: 34.16 | 57.74 | 83.67 | 108.01
Max Eff.: 91.80 | 93.07 | 93.31 | 93.52
Kt (Nm/A): 0.0199
Km (Nm/sqrt(w)): 0.1816
Max Continuous Power (Watts): 5600
Peak Continuous Power (Watts) (5 sec): 11000 (2sec)
Max cont. current (A): 130



This product was added to our catalog on July 7, 2015
