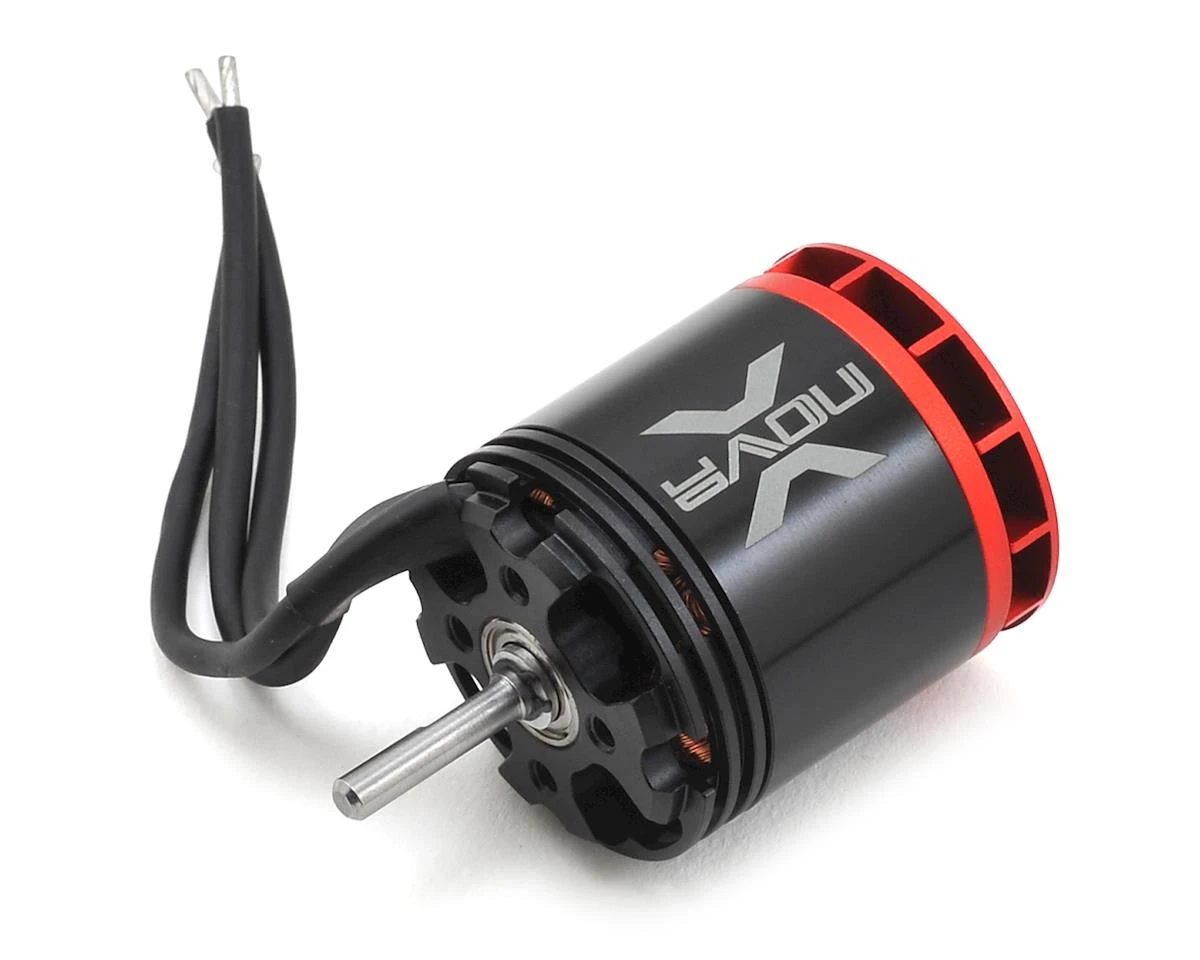

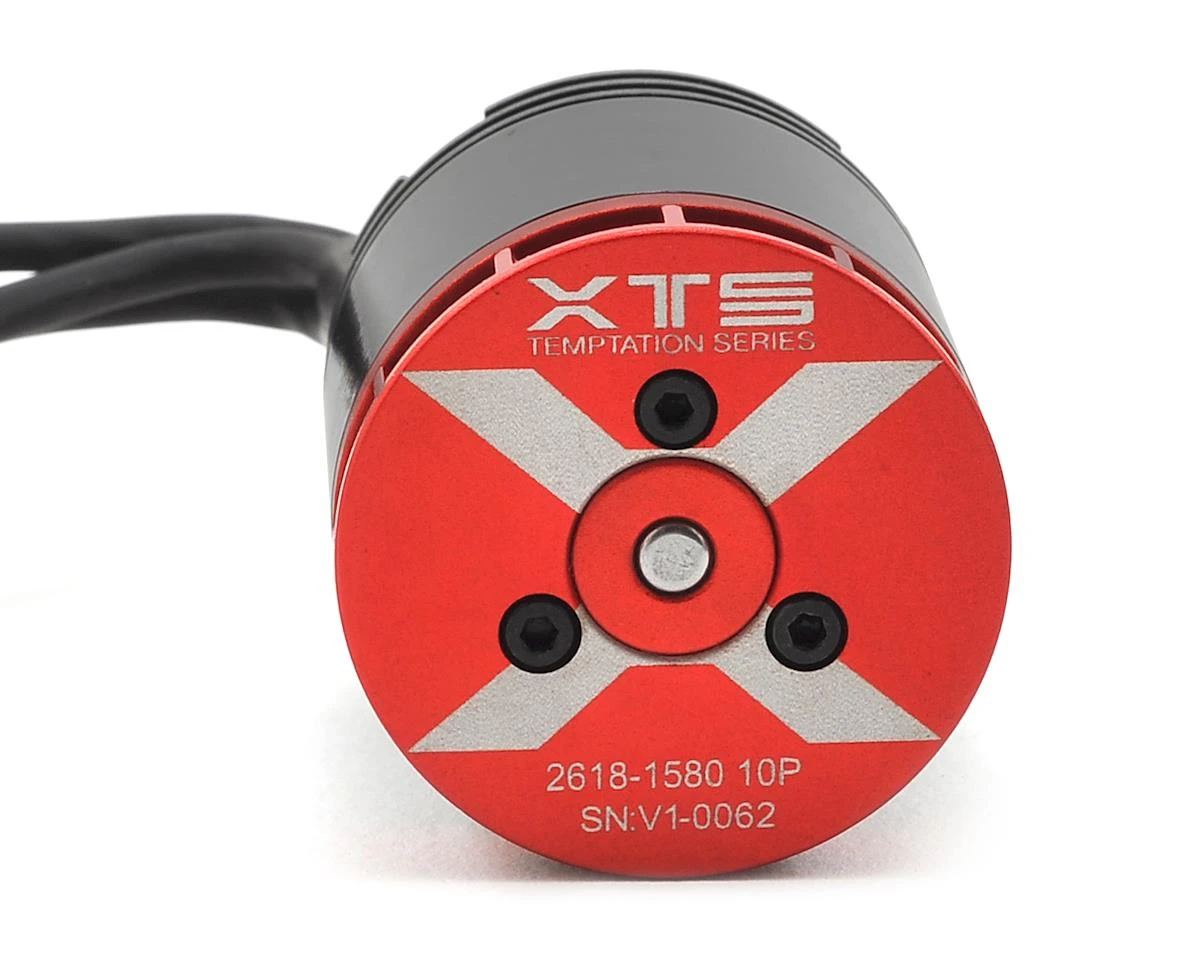

Xnova XTS 2618-1580KV Brushless Motor (Shaft A)

Sale!

Xnova XTS 2618-1580KV Brushless Motor (Shaft A)

Xnova XTS 2618-1580KV Brushless Motor (Shaft A) - Image 2

Xnova XTS 2618-1580KV Brushless Motor (Shaft A) - Image 3

Xnova XTS 2618-1580KV Brushless Motor (Shaft A) - Image 4

Xnova XTS 2618-1580KV Brushless Motor (Shaft A) -Furitek shop xnm2618 1580 a 1

Xnova XTS 2618-1580KV Brushless Motor (Shaft A) -Furitek shop xnm2618 1580 a 2

Xnova XTS 2618-1580KV Brushless Motor (Shaft A) -Furitek shop xnm2618 1580 a 3

Original price was: $93.00.Current price is: $65.10.

SKU: 525355 Categories: Electric Motors, Electric Motors & Esc's, Helicopters Tag: Xnova

Risk-Free Shopping with Returns
Experience the difference quality makes.
100% Quality Satisfaction
Streamlined service, designed for your convenience.

Description
Reviews (0)

This is a Xnova XTS 2618-1580KV Brushless Motor (Shaft A)

Specifications:

Slots & Poles: 12n10p

Winding: T 11D

rpm/V: 1580

Volt: (V) 10 / 22.2

Io(A): 2.0 / 3.5

Rm (mohm): 20

Weight (without connector): 110g

Body Length (no shaft): 38.1mm

Diameter: 33mm

Shaft Length: 17.4mm

Shaft Dia.: A=3.5mm

Mounting Holes CTC Distance: 19*2 & 16*2mm

Mounting Screw: M3x0.5

Max Eff. Curr.: 31.62 / 62.33

Max Eff.: 87.35 / 88.77

Kt (Nm/A: 0.006

Km (Nm/sqrt(w)): 0.0427

Max Continuous Power(Watts): 800

Peak Continuous Power(Watts): (2 sec) 1060

Max Continuous Current(Amps): 40

This product was added to our catalog on August 18, 2016
