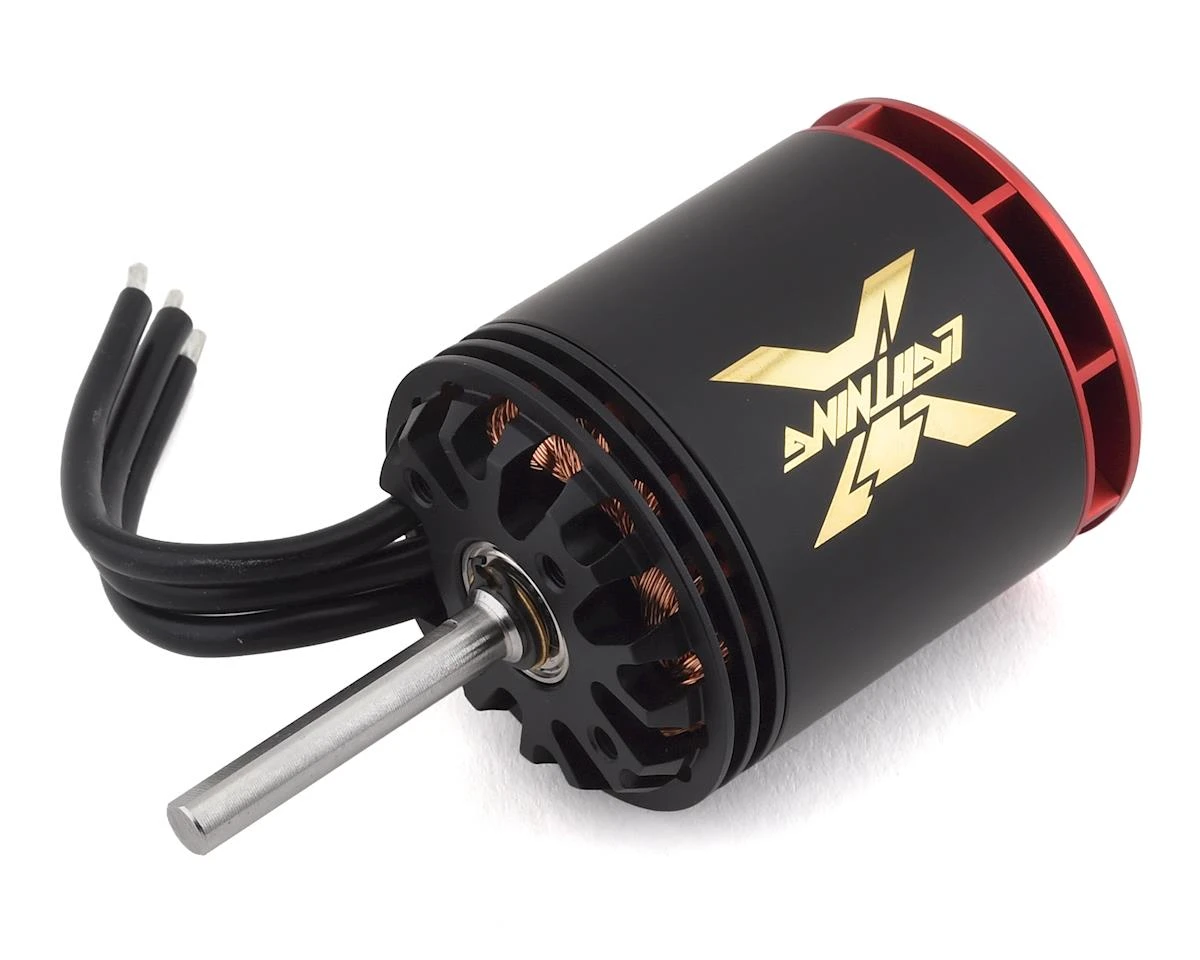

Xnova Lightning 4030-470kV Brushless Motor (Shaft A)

This is the Xnova Lightning 4030-470KV 3Y Brushless Motor with a 6mm “Type A” 38mm Shaft. This high performance brushless motor was developed for 3D flying on 10-14S.

Features:

• Higher efficiency over previous generation
• Thinner stator laminations
• Lower temperatures
• Smooth operation; no cogging
• Specialized wires,heat resistance up to 250 degree C
• Precision balanced
• High performance stator metal sheet
• Optimized ventilation
• High quality NMB bearings
• Superb quality and machining of CNC parts

Specifications:
Slots & Poles: 24n8p
Winding T: 3Y
rpm/V: 470
Volt (V): 10 | 20 | 25
Io(A): 0.8 | 1.1 | 1.4
Rm (mohm): 22 | 22 | 22
Weight (without connector): 445g
Body Length (no shaft): 60.75mm
Diameter: 49.5mm
Shaft Length: 38mm
Shaft Diameter: 6mm
Max Eff. Curr.: 19.70 | 31.62 | 43.69
Max Eff.: 91.61 | 93.04 | 93.59
Kt (Nm/A): 0.0203
Km (Nm/sqrt(w)): 0.137
Max Continuous Power (Watts): 3200
Peak Continuous Power (Watts) (5 sec): 5000
Max cont. current (A): 75

This product was added to our catalog on January 4, 2019
