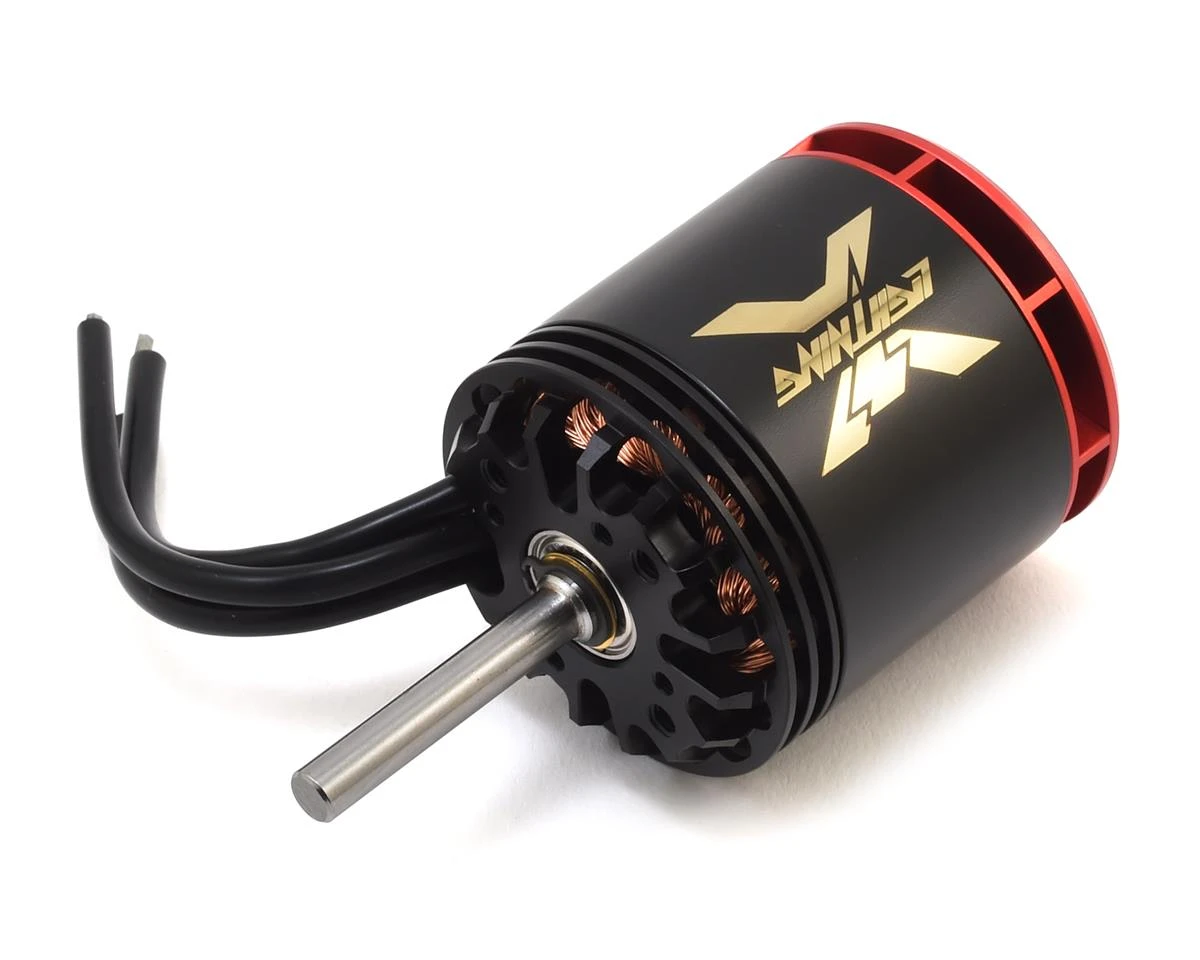

Xnova Lightning 4025-830KV Brushless Motor W/6mm Shaft (Shaft A)

This is the Xnova 4025-830KV 2Y Brushless Motor with a 6mm “Type A” 36mm Shaft. The “Lightning Series” was developed from the extremely successful XTS Platform. Lightning series motors are simply the pinnacle of performance, and efficiency. If you’re looking for the absolute best brushless motor within the Xnova line up, this is what you’re looking for! This high performance brushless motor was developed for 520-600mm when using 8s LiPo.

Features:

• “A Shaft”
• Good for hard 3D on 8S
• High quality Neo Magnets, heat resistant up to 150 degree C
• Specialized wires, heat resistance up to 250 degree C
• Precision balanced
• High performance stator metal sheet
• Optimized ventilation
• High quality NMB bearings
• Marked leading high efficiency up to 93.5%
• Superb quality and machining of CNC parts

Specifications:
Slots & Poles: 24n8p
Winding T: 2Y
rpm/V: 830
Volt (V): 10 | 20 | 30
Io(A): 1.5 | 2.3 | 3.3
Rm (mohm): 9 | 9 | 9
Weight (without connector): 400g
Body Length (no shaft): 56.2mm
Diameter: 49.5mm
Shaft Length: 36mm
Shaft Diameter: 6mm
Max Eff. Curr.: 40.82 | 71.49 | 104.88
Max Eff.: 92.65 | 93.57 | 93.71
Kt (Nm/A): 0.0115
Km (Nm/sqrt(w)): 0.1213
Max Continuous Power (Watts): 3000
Peak Continuous Power (Watts) (5 sec): 4000
Max cont. current (A): 98



This product was added to our catalog on April 19, 2022
