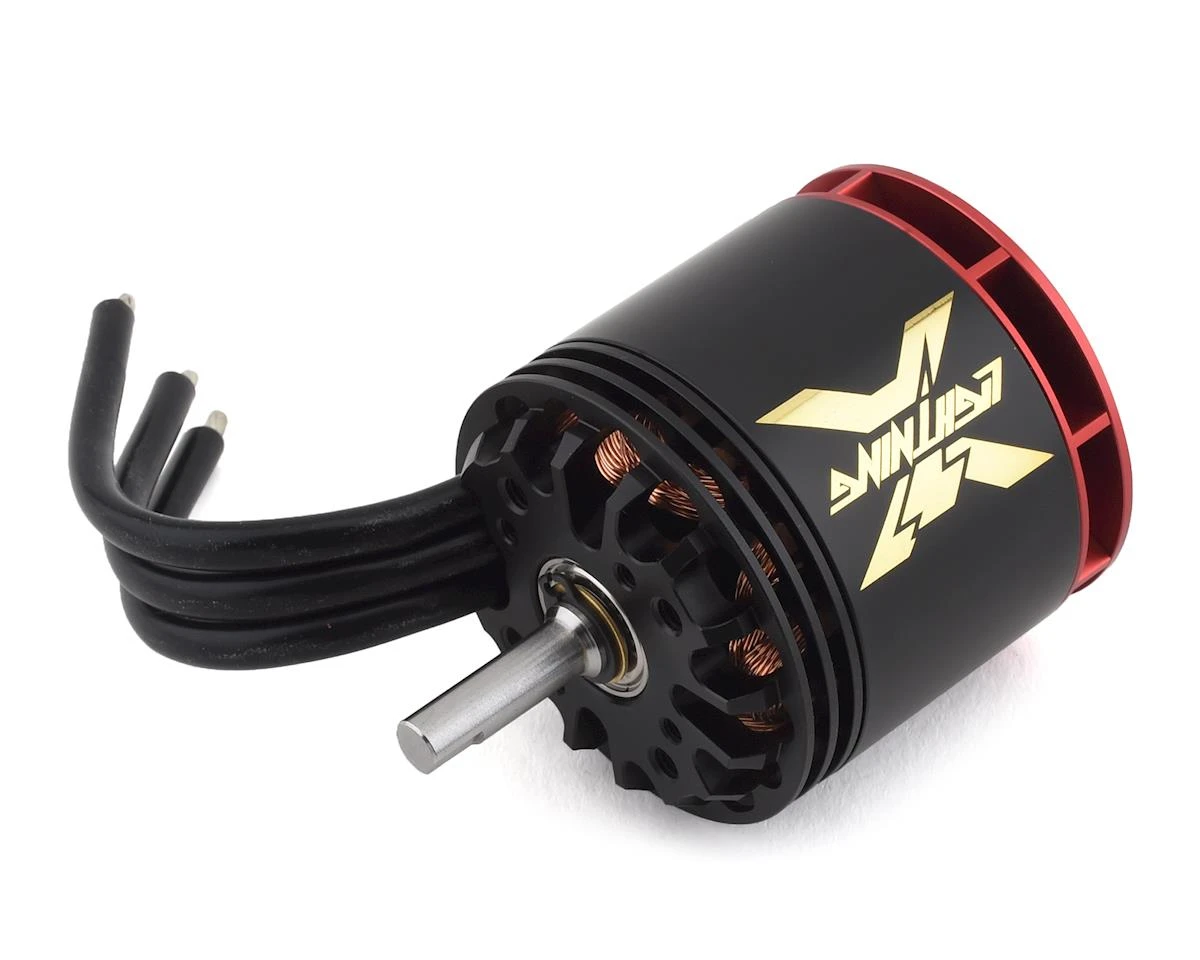

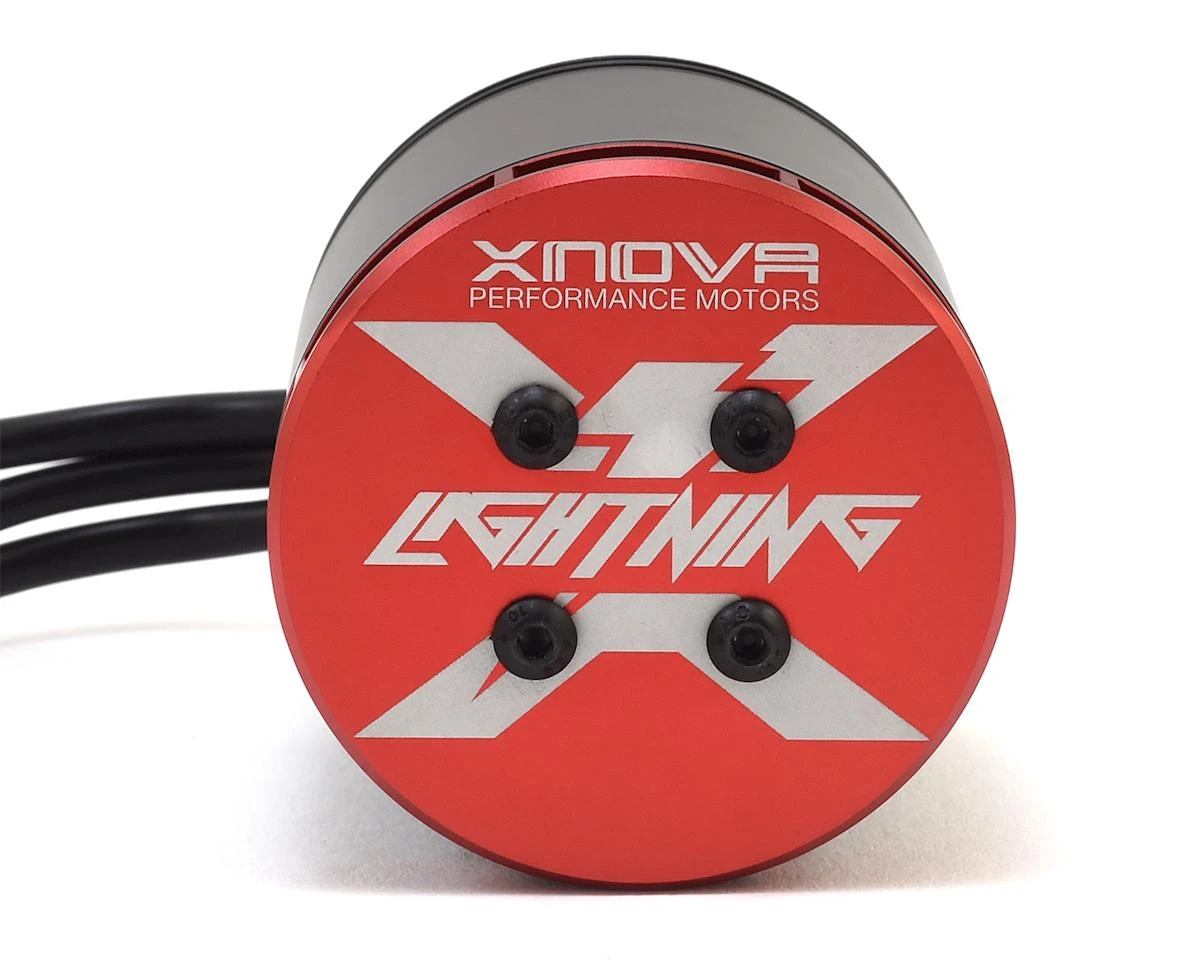

Xnova Lightning 4020-1200kV Brushless Motor (Shaft B)

This is the Xnova Lightning 4025-1200KV 2Y Brushless Motor with a 6mm “Type B” 22mm Shaft. This high performance brushless motor has the best power to weight ratio of the Xnova 4020 line. This is an ideal option for hard 3D flying styles.

Features:

• Higher efficiency over previous generation
• Thinner stator laminations
• Lower temperatures
• Smooth operation; no cogging
• Specialized wires,heat resistance up to 250 degree C
• Precision balanced
• High performance stator metal sheet
• Optimized ventilation
• High quality NMB bearings
• Superb quality and machining of CNC parts

Specifications:
Slots & Poles: 24n8p
Winding T: 2Y
rpm/V: 1200
Volt (V): 10 | 20 | 25
Io(A): 2.1 | 3.2 | 4.2
Rm (mohm): 6 | 6 | 6
Weight (without connector): 350g
Body Length (no shaft): 51.2mm
Diameter: 49.5mm
Shaft Length: 22mm
Shaft Diameter: 6mm
Mounting Holes CTC Distance: 25mm  & 30mm
Mounting Screw: 3mm & 4mm
Max Eff. Curr.: 55.57 | 97.01 | 124.26
Max Eff.: 92.44 | 93.40 | 93.24
Kt (Nm/A): 0.008
Km (Nm/sqrt(w)): 0.0965
Max Continuous Power (Watts): 2300
Peak Continuous Power (Watts) (5 sec): 2900
Max cont. current (A): 105

This product was added to our catalog on January 4, 2019
