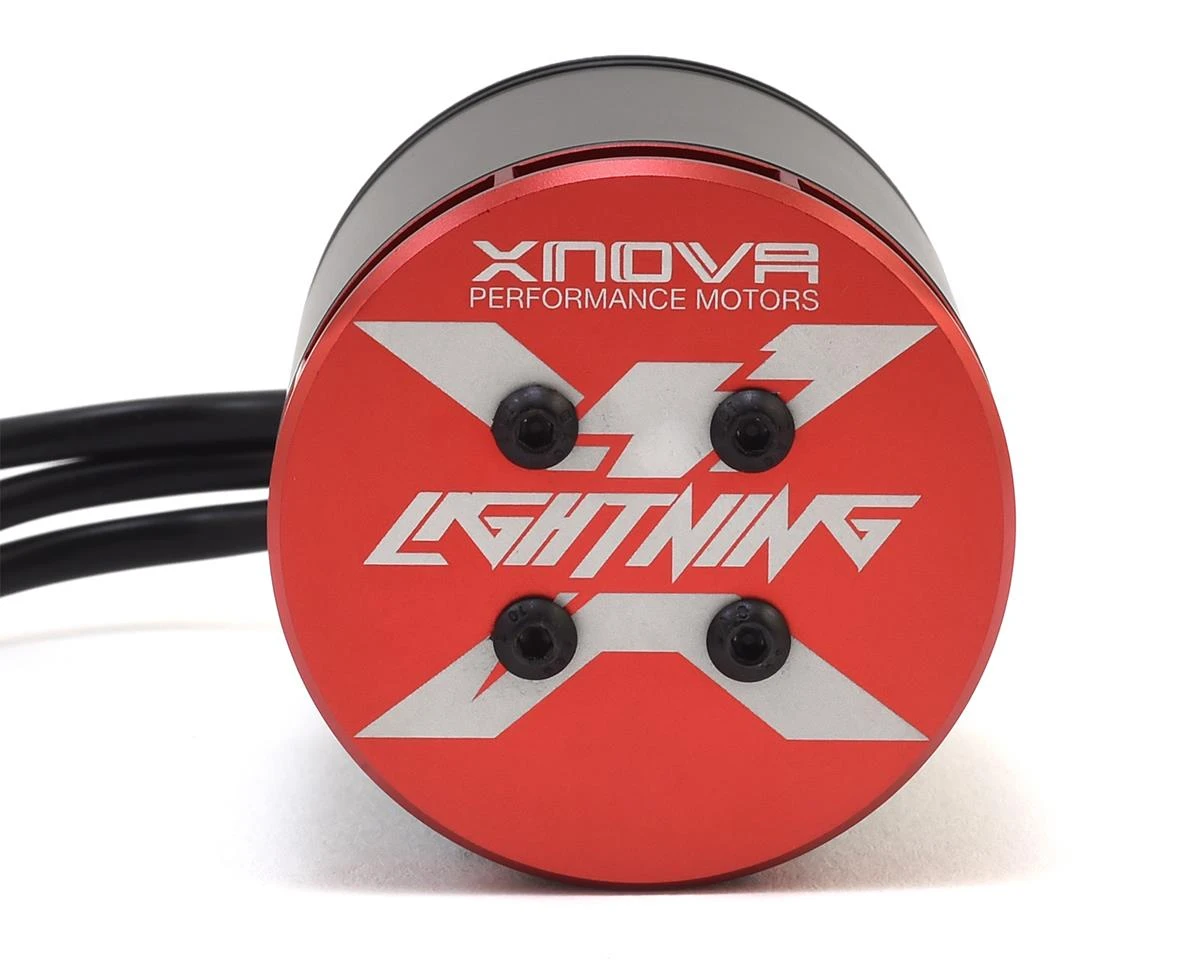

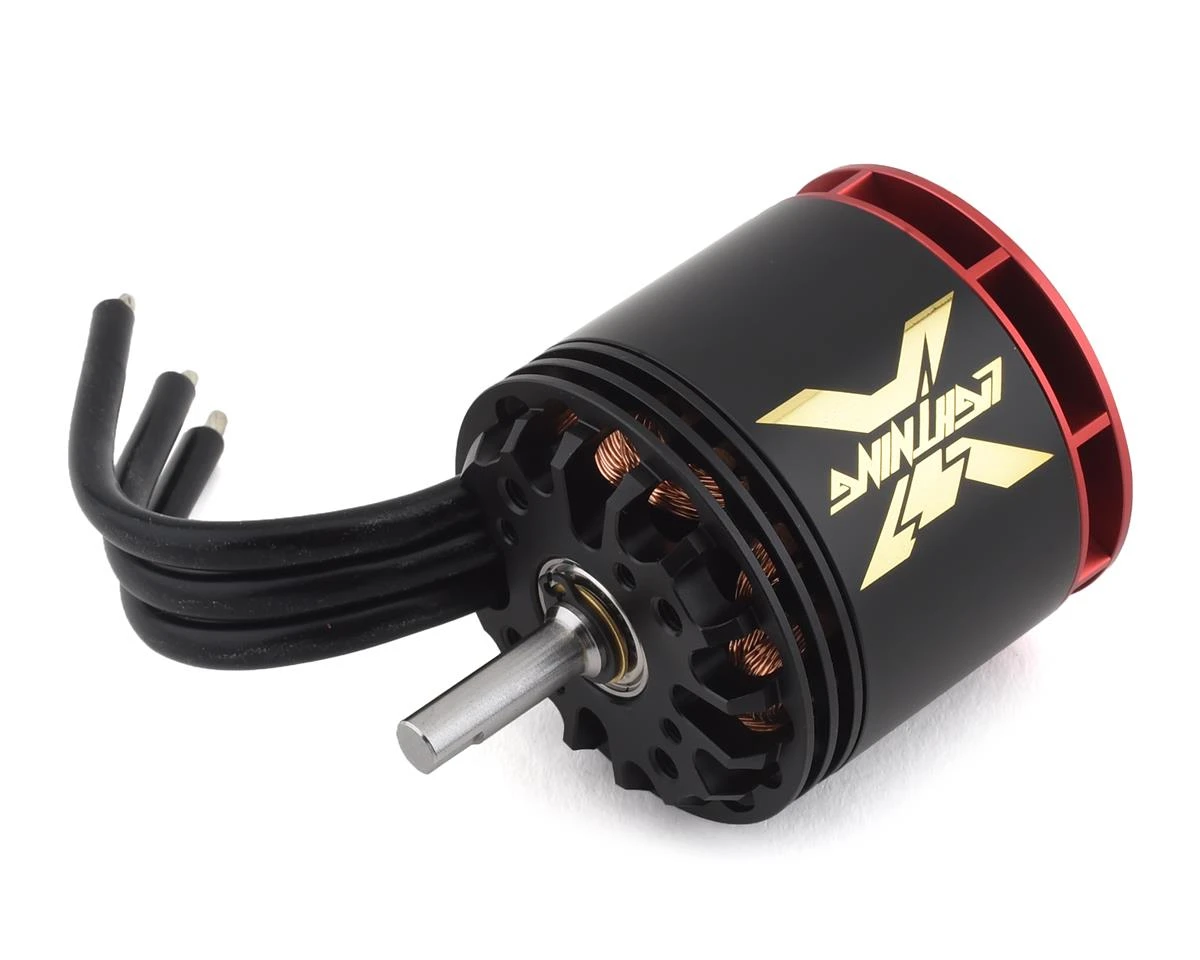

Xnova Lightning 4020-1000kV Brushless Motor (Shaft C)

This is the Xnova Lightning 4020-2Y-1000KV Brushless Motor with “Shaft C.”

Features:

• Higher efficiency over previous generation
• Thinner stator laminations
• Lower temperatures
• Smooth operation; no cogging
• Specialized wires,heat resistance up to 250 degree C
• Precision balanced
• High performance stator metal sheet
• Optimized ventilation
• High quality NMB bearings
• Superb quality and machining of CNC parts

Specifications:
Slots & Poles: 24n8p
Winding T: 2Y
rpm/V: 1000
Volt (V): 10 | 20 | 25
Io(A): 1.9 | 3 | 3.5
Rm (mohm): 7.5 | 7.5 | 7.5
Weight (without connector): 350g
Body Length (no shaft): 51.2mm
Diameter (mm): 49.5
Shaft Length: 25mm
Shaft Diameter: 5mm
Mounting Holes CTC Distance: 25mm & 30mm
Mounting Screw: 3mm & 4mm
Max Eff. Current: 50.33 | 89.44 | 108.01
Max Eff.: 92.45 | 93.29 | 93.52
Kt (Nm/A): 0.0095
Km (Nm/sqrt(w)): 0.1103
Max Continuous Power: 2200W
Peak Continuous Power (5 sec): 2800W
Max cont. current (A): 100

This product was added to our catalog on June 14, 2021
