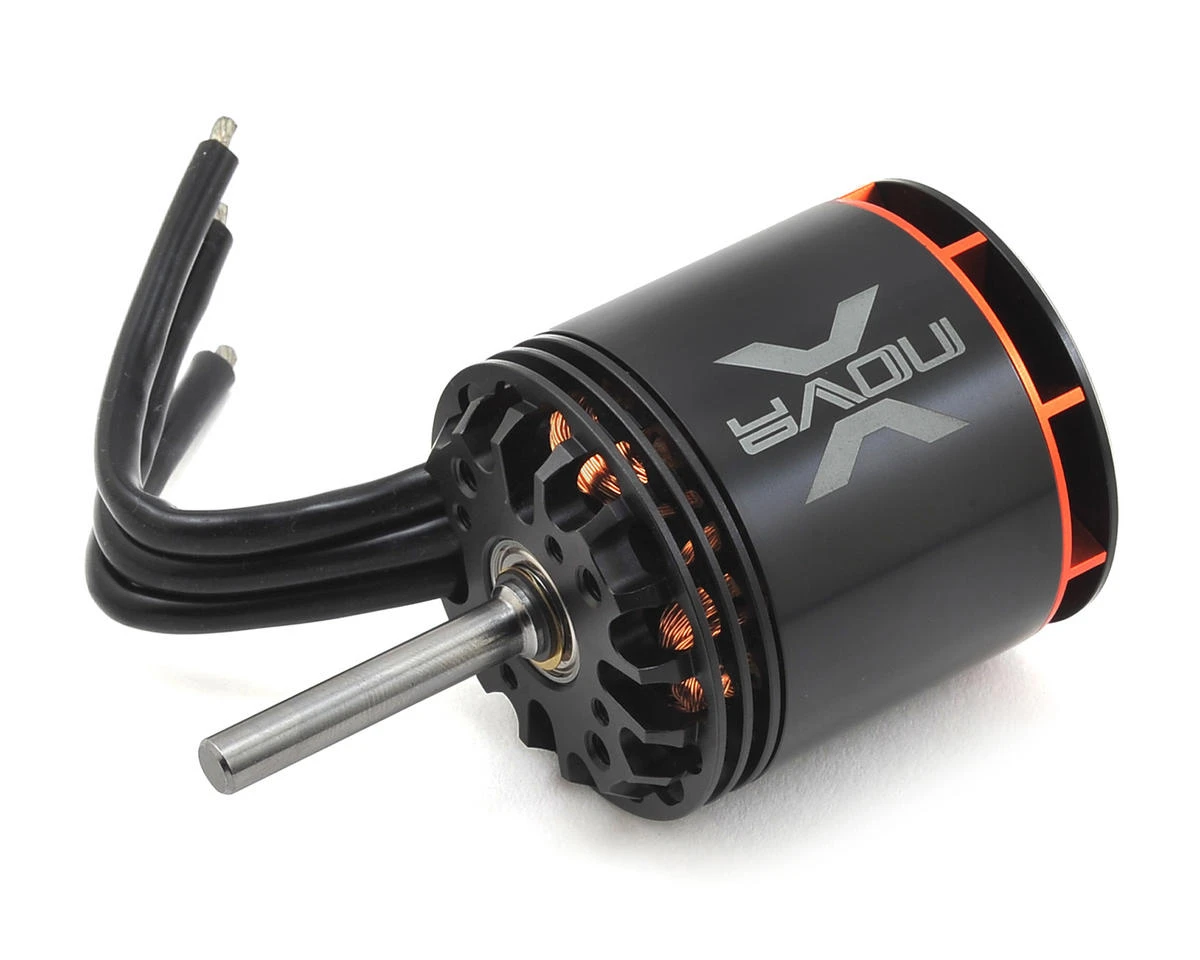

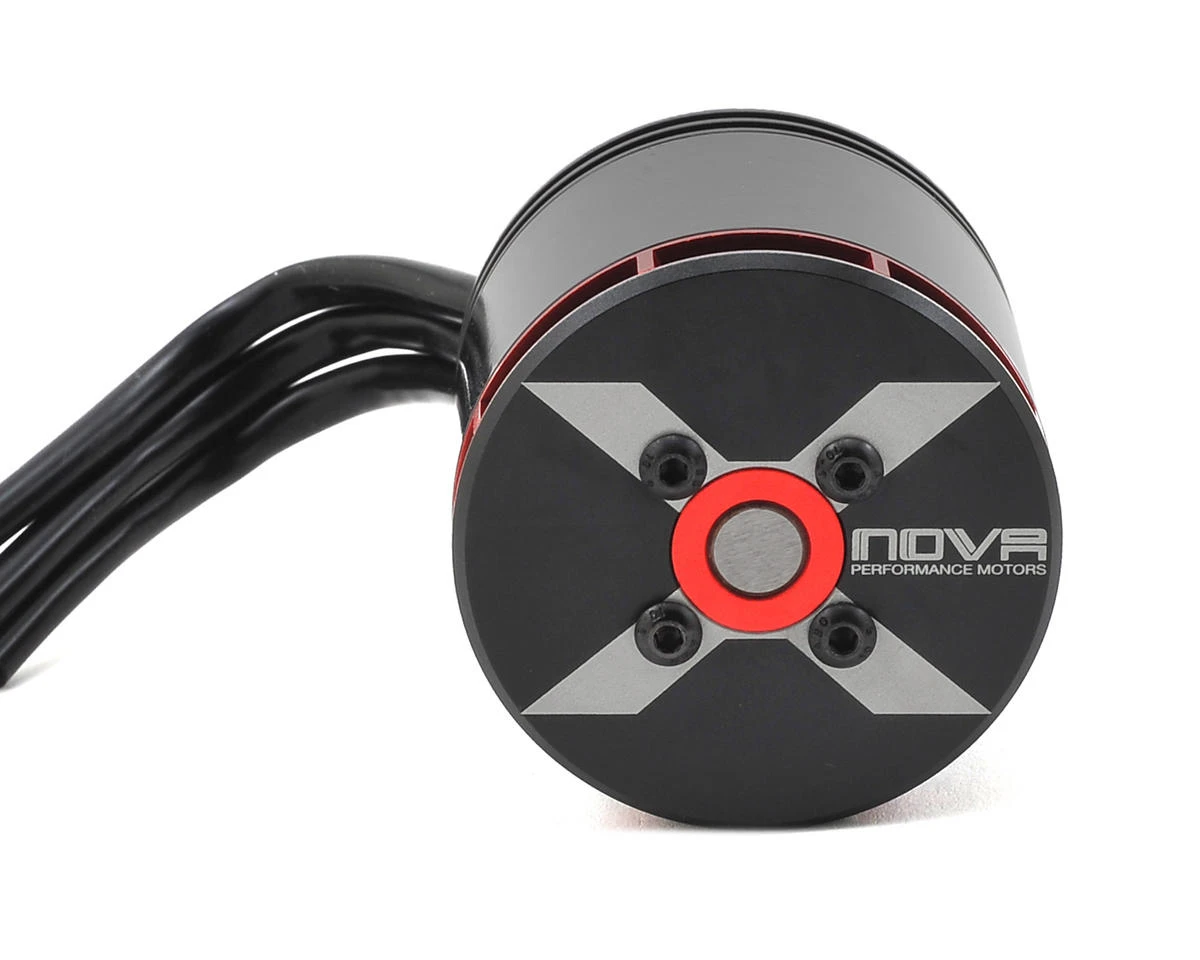

Xnova 4025-560KV 3Y V3 Brushless Motor (Shaft A)

This is the Xnova 4025-560KV 3Y Brushless Motor with a 6mm “Type A” 36mm Shaft. This high performance brushless motor was developed for sport flying on 8-10S or extreme 3D on 10-12S.

Features:

• “A Shaft” 36mm long, 6mm diameter
• Good for sport flying on 8-10S or extreme 3D on 10-12S
• High quality Neo Magnets, heat resistant up to 150 degree C
• Specialized wires, heat resistance up to 250 degree C
• Precision balanced
• High performance stator metal sheet
• Optimized ventilation
• High quality NMB bearings
• Marked leading high efficiency up to 92%
• Superb quality and machining of CNC parts

Specifications:
Slots & Poles: 24n8p
Winding T: 3Y
rpm/V: 560
Volt (V): 10 | 20 | 30
Io(A): 0.9 | 1.2 | 1.6
Rm (mohm): 19 | 19 | 19
Weight (without connector): 384g
Body Length (no shaft): 55.75mm
Diameter: 49.5mm
Shaft Length: 28mm
Shaft Diameter: 6mm
Max Eff. Curr.: 21.76 | 35.54 | 50.26
Max Eff.: 91.73 | 93.25 | 93.63
Kt (Nm/A): 0.0171
Km (Nm/sqrt(w)): 0.1237
Max Continuous Power (Watts): 3000
Peak Continuous Power (Watts) (5 sec): 4000
Max cont. current (A): 68



This product was added to our catalog on June 21, 2016
