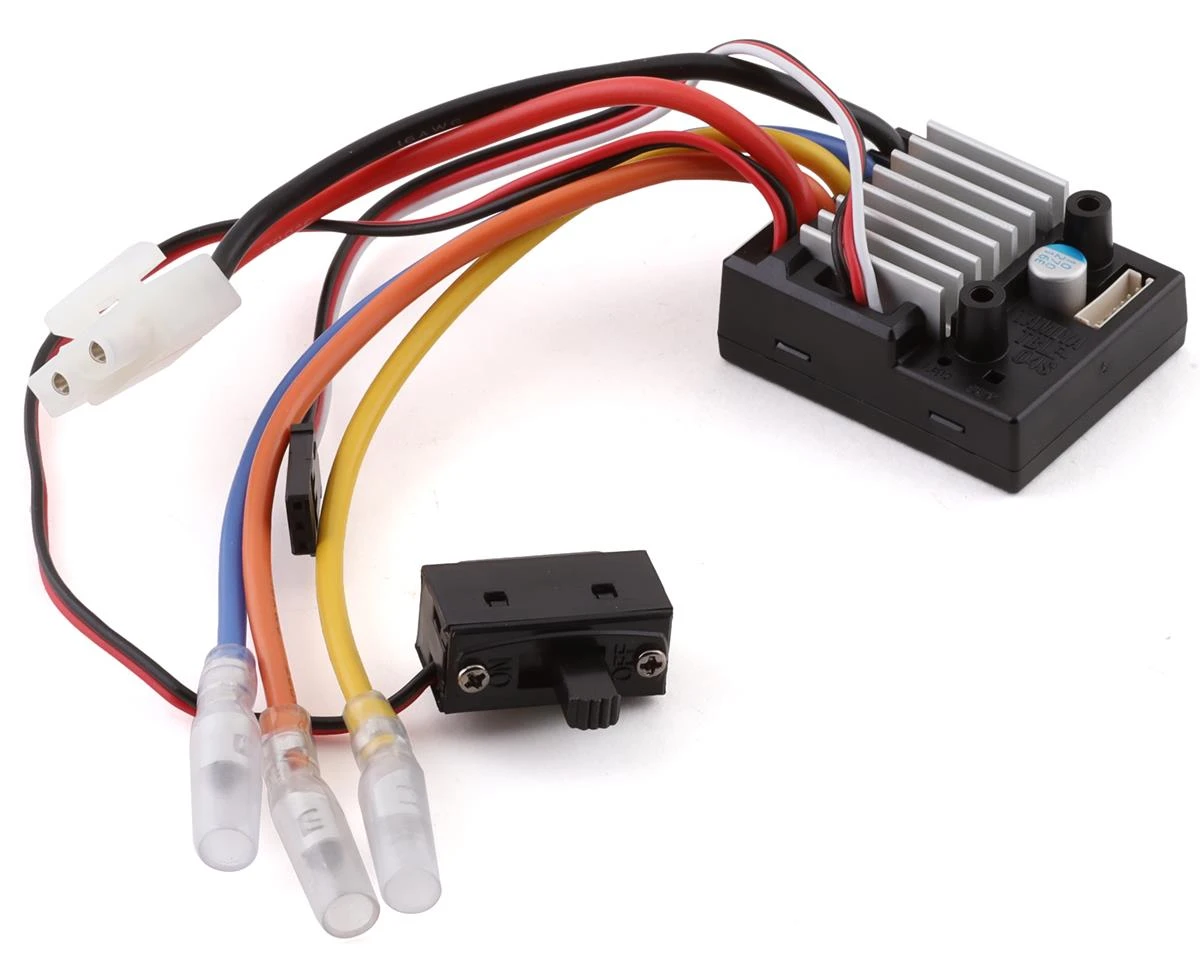

Tamiya 04S Sensored Brushless ESC

This Tamiya 04S Sensored Brushless ESC is designed for use with Tamiya Brushless Motors (Sensored) 15.5T and higher (Aftermarket brands 21.5 and over), and also brushed motors 25T and higher. High point, neutral brake and brake settings are individually adjustable, while battery cut-off, reverse and motor modes can be selected. Setup is identified using an LED, and the ESC also features two protection functions.

LO/HI Battery Cut-off Information: LOW & HIGH Battery Low Voltage Protection Feature: LOW battery setting cuts off @ 5.6 volts approximately. (Best for Ni-CD, NI-MH and Li-FE battery chemistry) HIGH battery setting cuts off @ 6.2 volts approximately. (Best for other battery chemistries)

Features:

• Sensored brushless ESC detects motor rotor positions with precision, enabling more efficient power supply and smoother motor response
• Compatible with Tamiya brushless motors (sensored) of 21.5+ turns, and Tamiya brushed motors 25 turns and over
• Choose from 10 different settings for both neutral brake and brake, to get your setup just how you want it
• Features overheating and overload protection functions to help ensure that your equipment avoids damage

Specifications:
Weight: 47g (including cables)
Dimensions: 41.5 x 33.4 x 18mm
Maximum continuous current: 75A
Input voltage: 6.6V – 7.2V
Weight: 45g (including cables)

This product was added to our catalog on May 7, 2021
