Spektrum RC A7100 MT/MS Metal Gear Wing Servo (High Voltage)

Sale!

Spektrum RC A7100 MT/MS Metal Gear Wing Servo (High Voltage)

Spektrum RC A7100 MT/MS Metal Gear Wing Servo (High Voltage) - Image 2

Spektrum RC A7100 MT/MS Metal Gear Wing Servo (High Voltage) - Image 3

Spektrum RC A7100 MT/MS Metal Gear Wing Servo (High Voltage) - Image 4

Spektrum RC A7100 MT/MS Metal Gear Wing Servo (High Voltage) - Image 5

Spektrum RC A7100 MT/MS Metal Gear Wing Servo (High Voltage) -Furitek shop spmsa7100 1

Spektrum RC A7100 MT/MS Metal Gear Wing Servo (High Voltage) -Furitek shop spmsa7100 2

Spektrum RC A7100 MT/MS Metal Gear Wing Servo (High Voltage) -Furitek shop spmsa7100 3

Spektrum RC A7100 MT/MS Metal Gear Wing Servo (High Voltage) -Furitek shop spmsa7100 4

Original price was: $99.99.Current price is: $69.99.

SKU: 1397466 Categories: Mini & Micro, Servos Tag: Spektrum RC

Risk-Free Shopping with Returns
Experience the difference quality makes.
100% Quality Satisfaction
Streamlined service, designed for your convenience.

Description
Reviews (0)

The Spektrum RC A7100 MT/MS Metal Gear Wing Servo is a great option for high performance sail planes and other thin wing applications. High voltage capable, this servo can produce 115oz of toque at 0.078sec/60° with 8.4V input. A low wear metal gear drive train is supported by a single ball bearing for smooth operation. Completing the build is a full aluminum case for added reliability and durability. Take to the skies with the Spektrum RC A7100 servo.

Features:

Bearing supported drive train helps maximize smooth operation
Operating Frequency: 200hz to 333hz
Low wear and tightly meshed all metal gear train
Class leading performance (8.3kg-cm and .078 sec/60° @8.4v)
Specifically designed for thin wing aircraft models and sailplanes
Over Current and Temperature protection
Aluminum servo case helps keep operating temperatures low
High Voltage (HV) capable (4.8-8.4v input range)

Specifications:

Input Voltage: 4.8V-8.4V
Overload Protection: No
Motor Type: Brushed
Product Weight: 1.0oz (28g)
Spline Count: 25 – Tooth
Deadband: <1us
Servo Speed:

6.0V: 0.091 sec/60 deg
7.4V: 0.086 sec/60 deg
8.4V: 0.078 sec/60 deg

Torque:

6.0V: 96 oz-in (6.9kg-cm)
7.4V: 100 oz-in (7.2kg-cm)
8.4V: 115 oz-in (8.3kg-cm)

Bearing: Single BB
Length: 1.18″ (30 mm)
Width: 0.39″ (10 mm)
Height: 1.38″ (35 mm)
Programmable: No
Servo Type: Digital
Gear Type: Metal

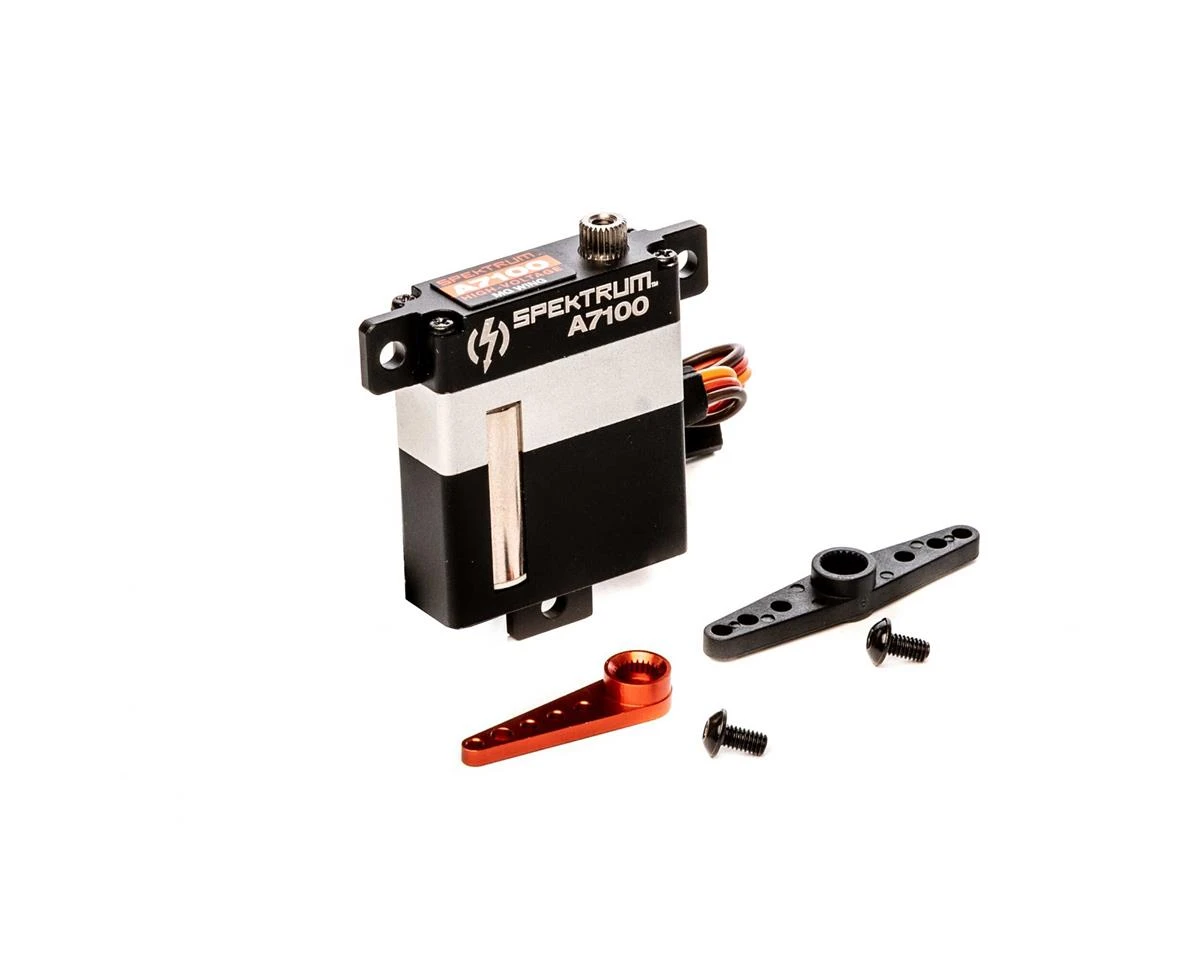

Includes:

(1) A7100 Wing Servo
(1) Double-sided Plastic Servo Arm
(1) Red Anodized Aluminum Servo Arm

This product was added to our catalog on March 16, 2022
