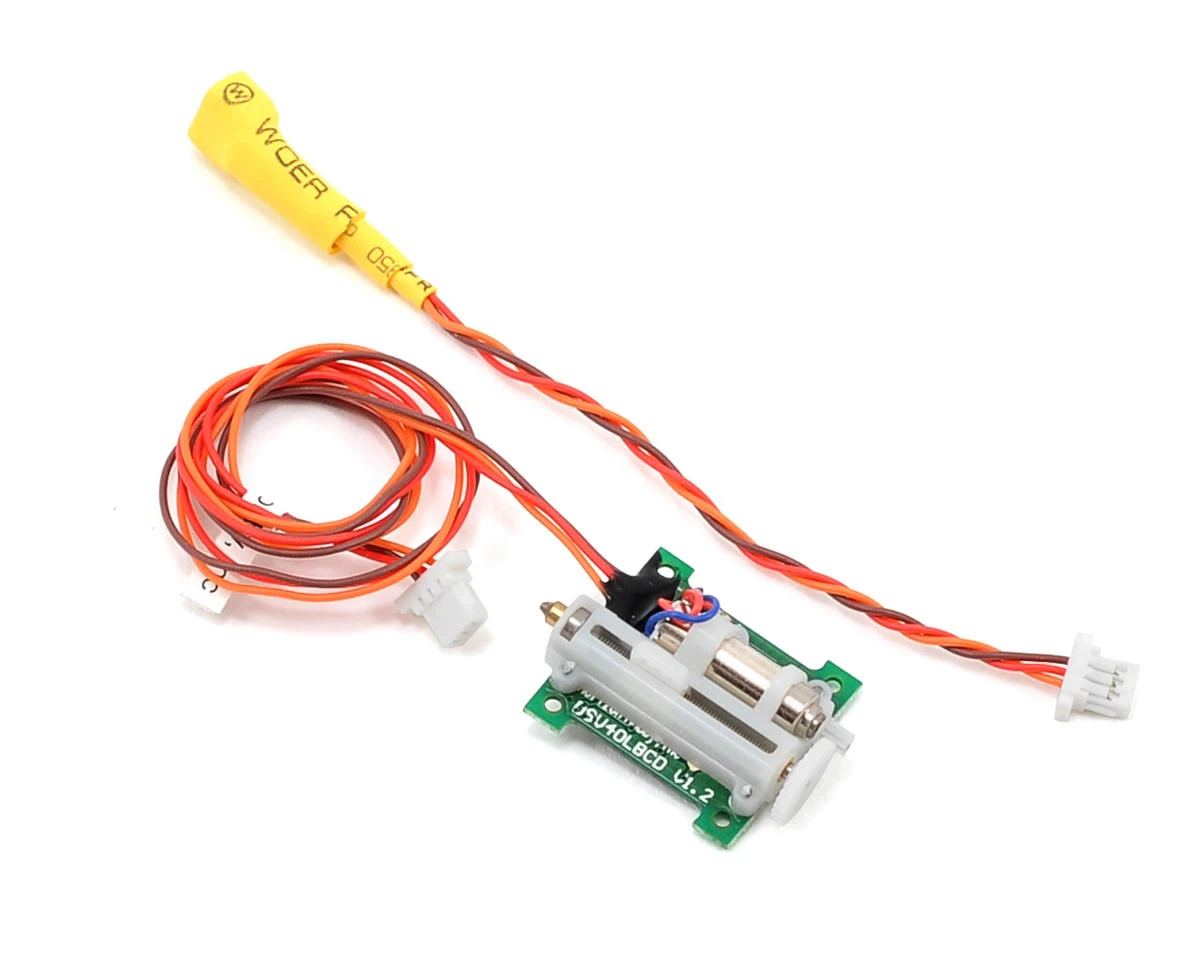

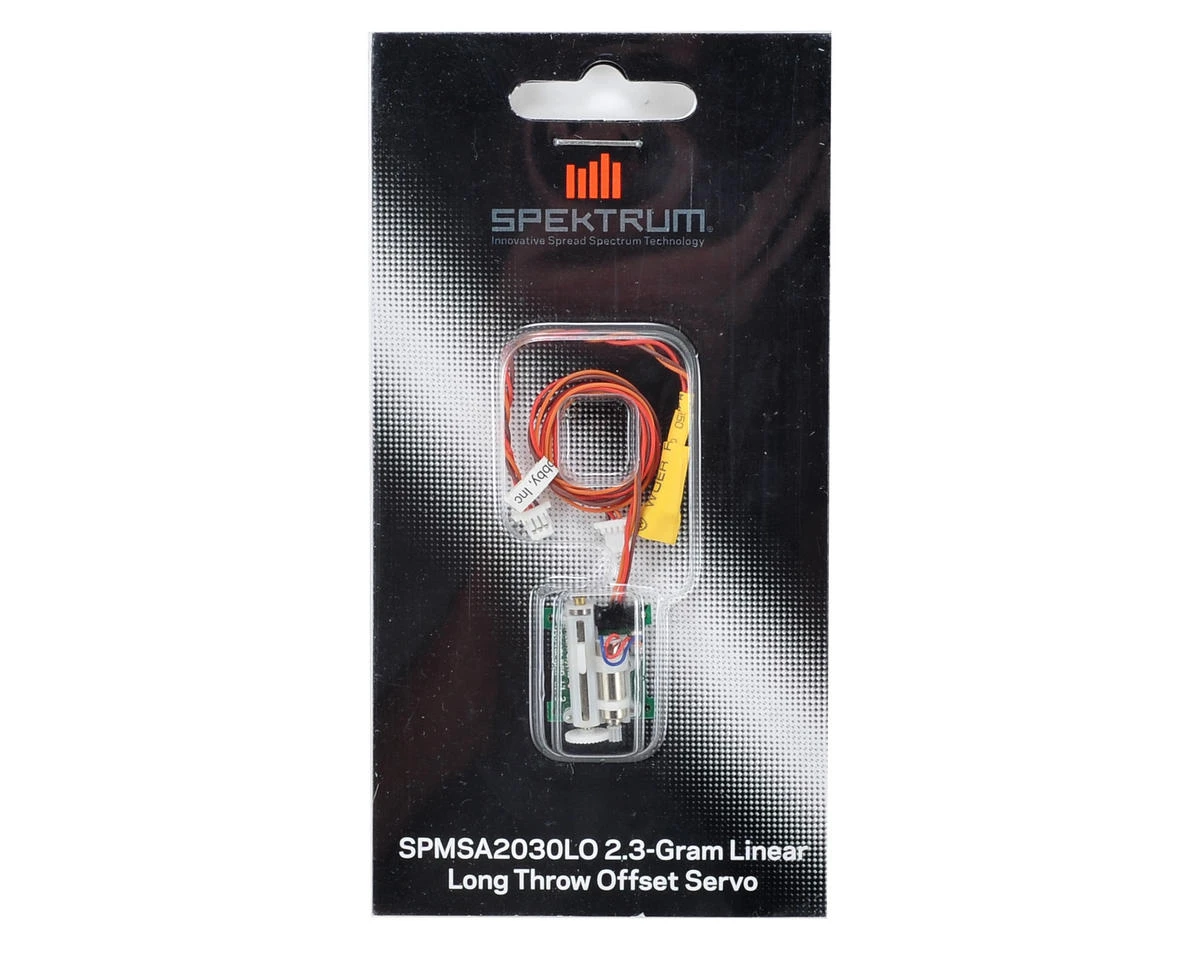

Spektrum RC 2.3 Gram Linear Long Throw Offset Servo

This is the Spektrum 2.3-Gram Linear Long Throw Offset Servo. This 2.3-gram Linear Long Throw Offset Servo is a special use servo designed for modelers without computer transmitters who would like to add aileron differential to their ultra micro aircraft. It comes programmed with a 70/30 offset from center and can be used with any Spektrum AR6400-series receiver.c

Specifications:
Type: Analog
Application: Ultra micro aircraft
Torque: 3.5 oz (100 g)
Speed: 0.10 sec end-to-end
Length: 0.87 in (22.0mm)
Width: 0.66 in (16.9mm)
Height: 0.33 in (8.2mm)
Weight: 0.1 oz (2.3 g)
Bushing or Bearing: Bearing
Bearing: Single
Connector Type: JST-SHR (1.0 mm)
Voltage: 3.2V-4.2V

This product was added to our catalog on July 12, 2012
