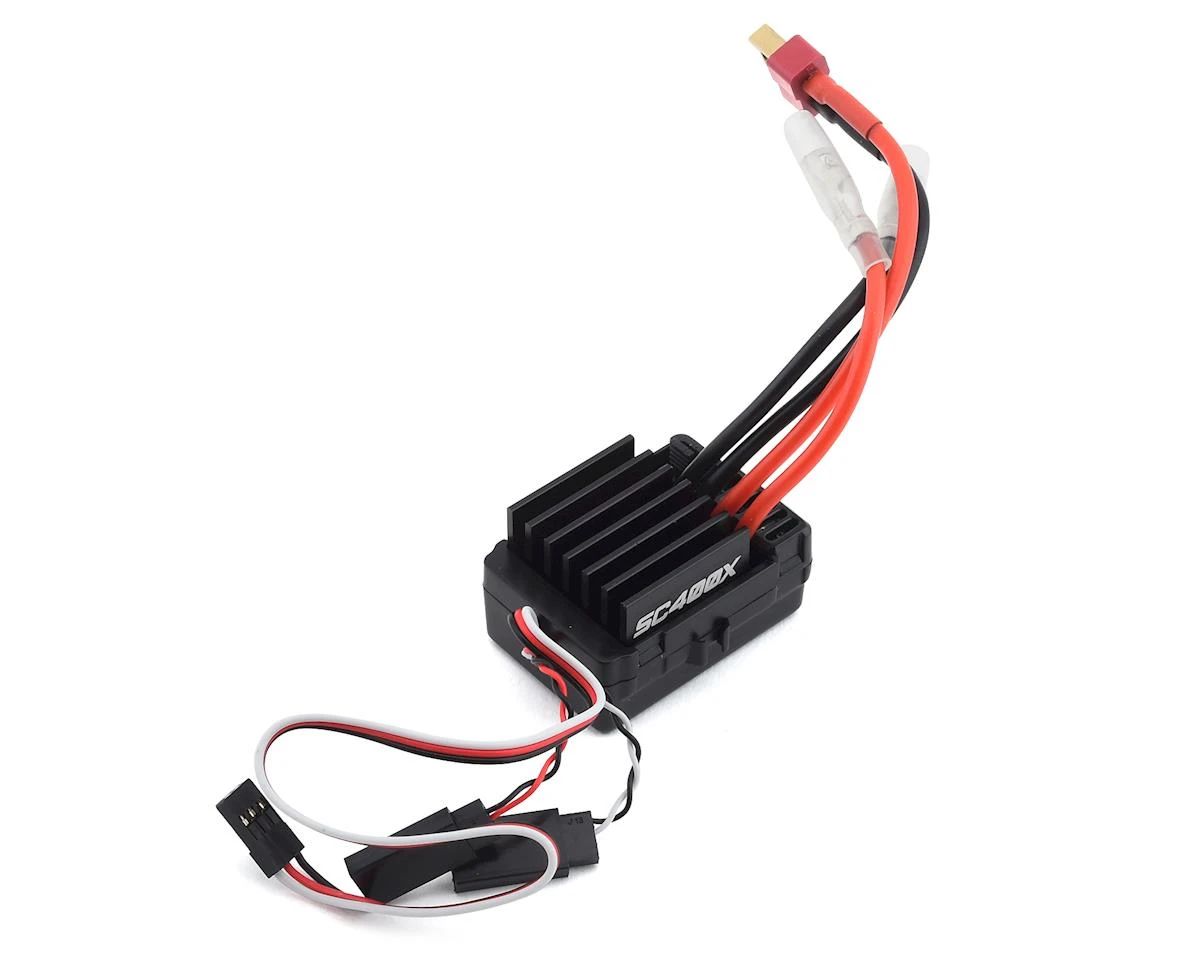

Reedy SC400X 1/10 Scale Brushed Crawler ESC

This is a Reedy SC400X 1/10 Scale Brushed Crawler ESC, standard equipment in the Element Enduro RTR, and now available on its own!

The SC400X is 2-3S compatible and equipped with advanced features intended specifically for crawlers and trail trucks. Fully proportional forward and reverse gives precision control on rocky terrain while an option of 0%, 50%, or 100% drag brake setting helps maintain control on steep ascents and descents. Convenient dual auxiliary power leads can be used to power LED lighting or other scale accessories.

The importance of durability has not been overlooked. The durable water-resistant case protects the ESC from the elements and an integrated heatsink keeps temperatures in check when using high-power motors during extended sessions. Flexible silicone wires, a low-resistance battery T-plug connector, and bullet motor connectors round off the list if impressive features.

Cells: 2-3 LiPo, 5-9 NiMH

Current: For 40A/180A, Rev 20A/90A

Suggested Applications:1:10 and 1:12 crawler, trail truck

Motor Limit, 2S LiPo/5-6 NiMH: 540/550 12-turn 3-slot; 8-turn 5-slot

Motor Limit, 3S LiPo/7-9 NiMH: 540/550 18-turn 3-slot; 12-turn 5-slot

Reversible: Yes

Low Voltage Cutoff: Yes

Dimensions: 46.5×35.5×27.5mm

Weight: 61g

Power Wires: 16-Gauge Silicone

Connector: Battery: T-plug. Motor: Bullet, Aux/FUT-J.
