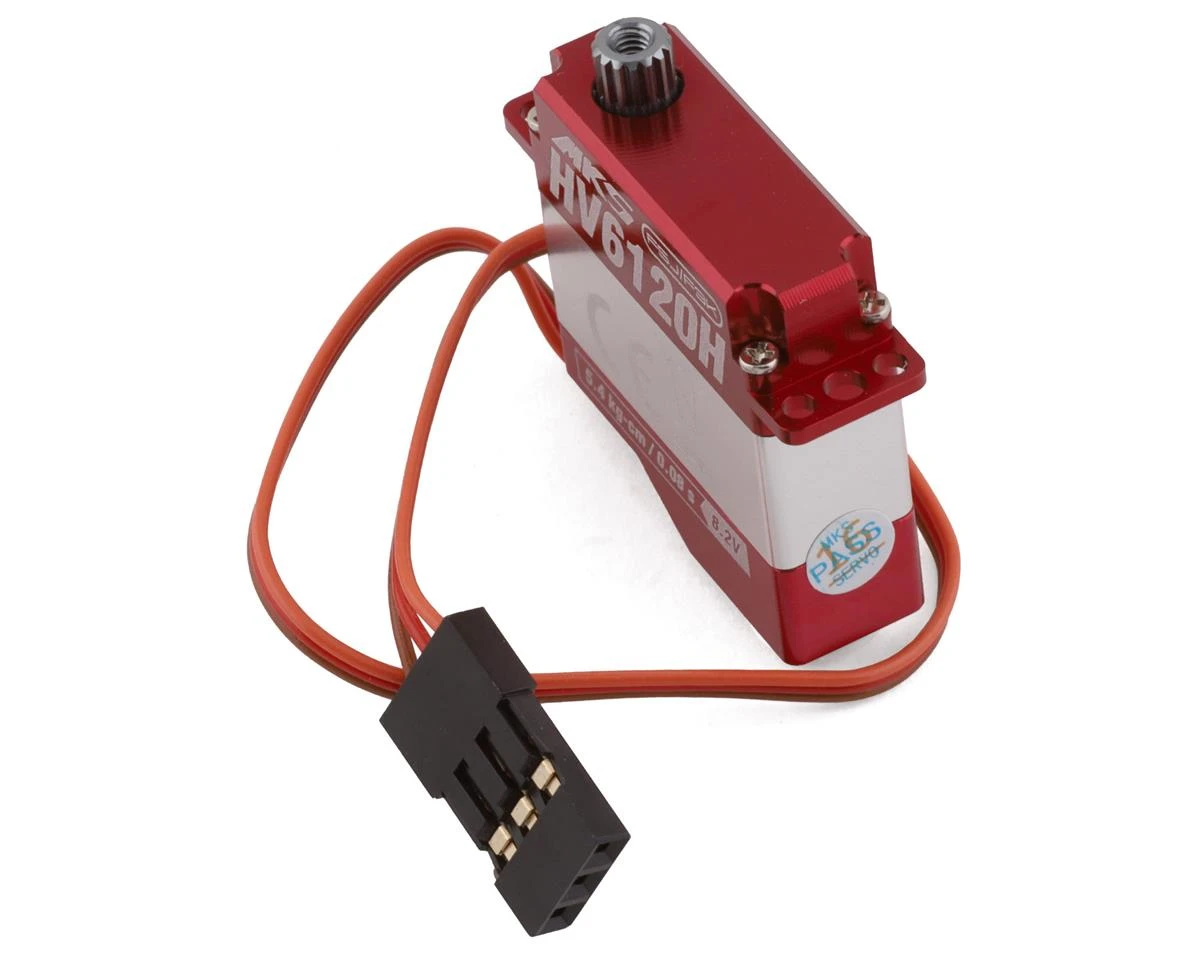

MKS Servos HV6120H Brushless Metal Gear Digital Wing Servo

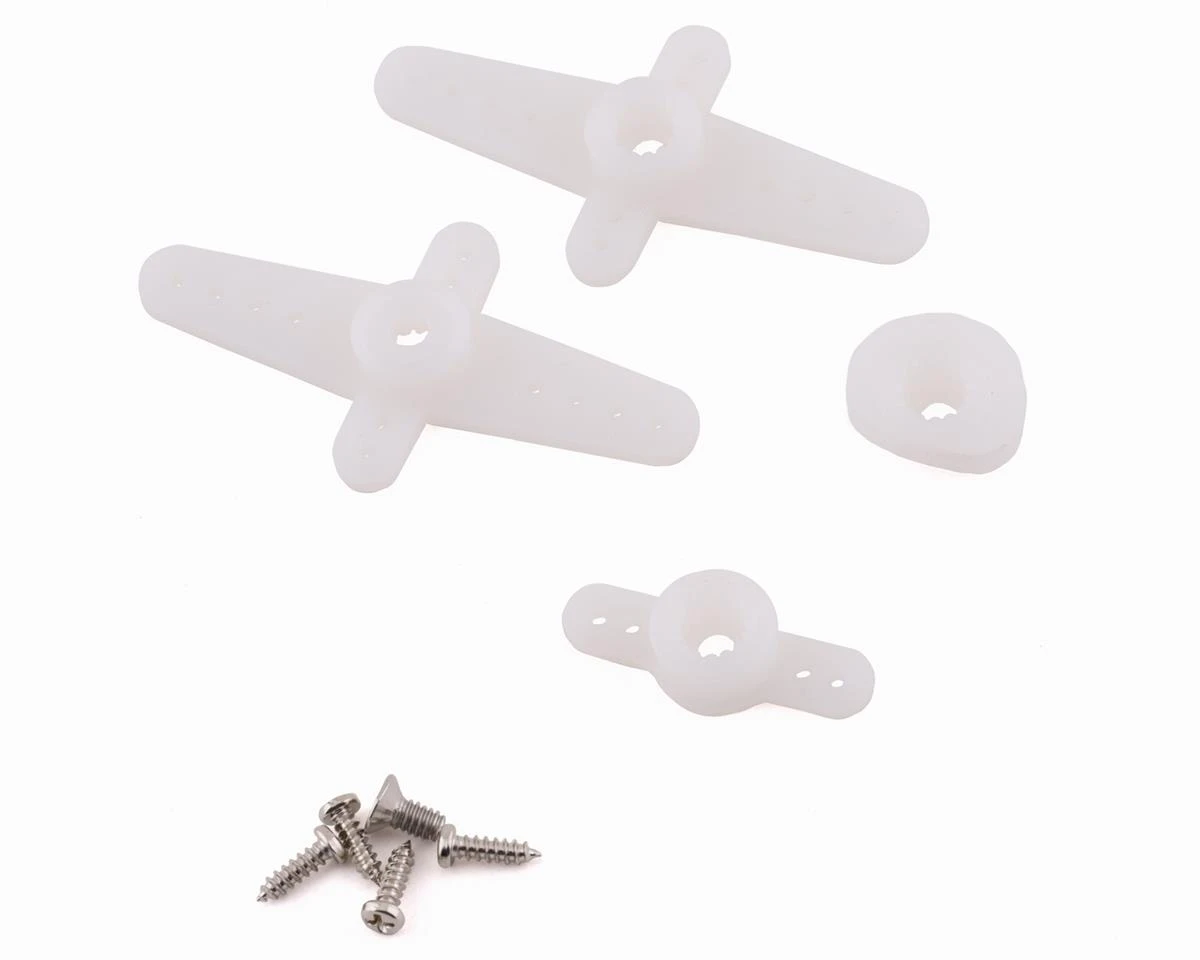

The MKS HV6120 Brushless Metal Gear Digital Wing Servo is an excellent choice for RC gliders. Designed specifically for fuselage use in the F5J, F3J or F3K glider. Package includes one servo, one servo mount, four servo horns and hardware.

NOTE: With the precision cut gears, it is not advised to turn the servo output by hand.

• Uses Pulse Width Control (PWM)
• High quality coreless motor
• Dual ball bearing
• Full metal gears
• Perfect for F5J, F3J, F3K Glider Fuselage Servos

• Voltage: 3.5-8.4V DC
• Torque:
• 4.8V: 45.8 oz/in (3.3 Kg/cm)
• 6V: 56.9 oz/in (4.1 Kg/cm)
• 7.4V: 69.4 oz/in (5.0 Kg/cm)
• 8.4V: 74.9 oz/in (5.4 Kg/cm)
• Speed:
• 4.8V: 0.139 sec/60°
• 6V: 0.11 sec/60°
• 7.4V: 0.089 sec/60°
• 8.4V: 0.08 sec/60°
• Dimensions: 23x8x25.2mm
• Weight: 11g (0.388oz)
