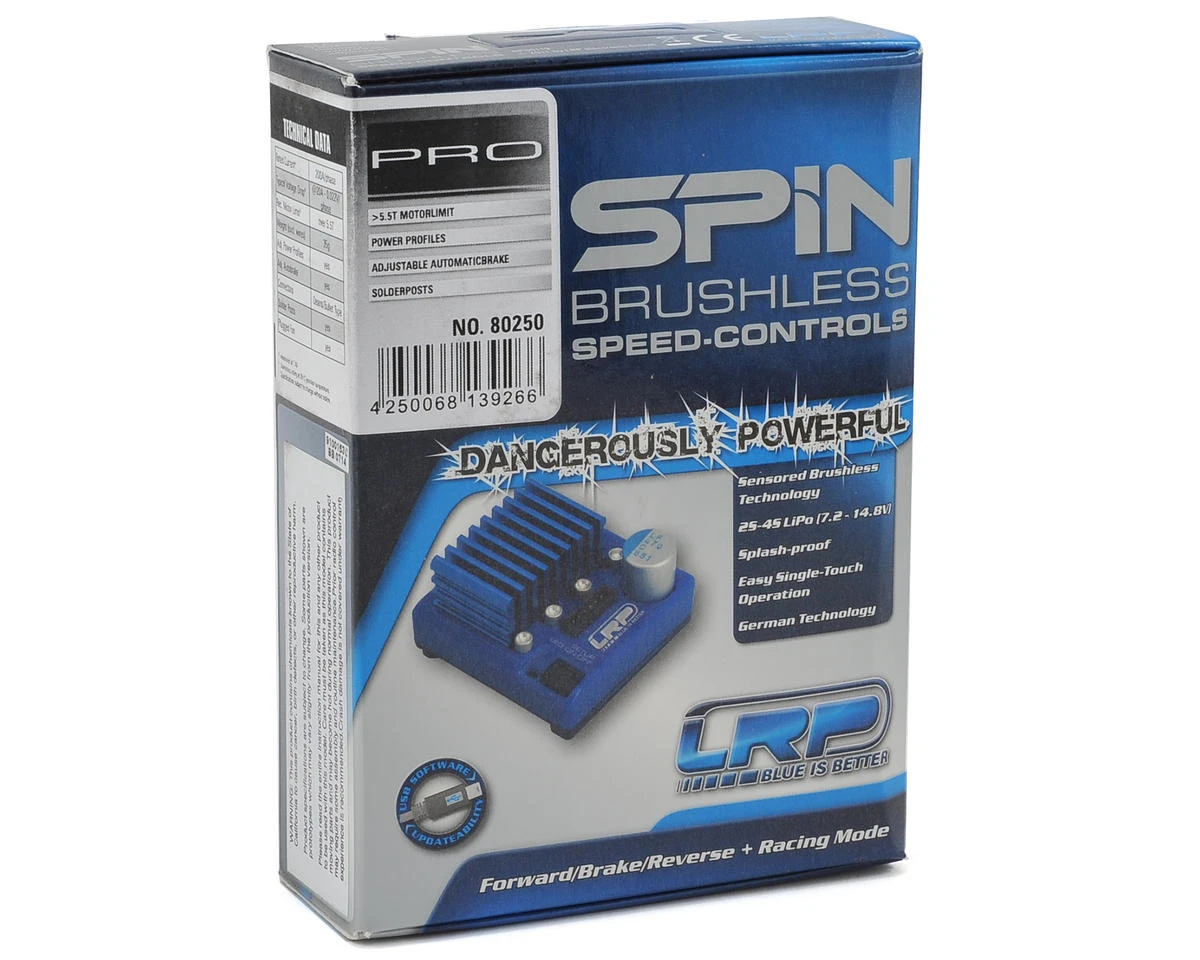

LRP Spin Pro Sensored Brushless ESC

This is the LRP Spin Pro Sensored Brushless ESC. The Spin Pro offers all the features needed for competition. Adjustable power modes, sensored operation and an adjustable autobrake function make the Spin Pro the perfect choice as a first competiton grade ESC.

Like all Spin speed controls, the Spin Pro is equipped with a switching BEC and a power capacitor with low internal resistance to deliver incredible performance. Plus, it is splashproof, features high-value power wires, and the software can be updated with the LRP USB Bridge 2. The Spin Pro can be operated with 2S to 4S LiPo batteries, and all the components including the power capacitor and on/off switch have been integrated into the housing to keep it small.

Features:

• Worlds winning sensored brushless technology
• 2S-4S LiPo (7.2 – 14.8V) – adjustable LiPo cut-off
• Power Profiles – 5 profiles for fine adjustments to all conditions and motors
• “true stock racing“ – „Boost 0“ mode adjustable
• Dangerously powerful – LRP Worlds winning performance in an affordable package
• US-Style high-power battery connector
• Easy single-touch operation
• Forward/brake/reverse + racing mode with forward/brake only
• Adjustable automatic brake – Easy adaption to different track types
• Heavy-duty design – fully integrated tough construction
• 3 LED user interface – for easiest handling
• Multi protection system – fail safe
• Strong switching BEC – 6V / 2A

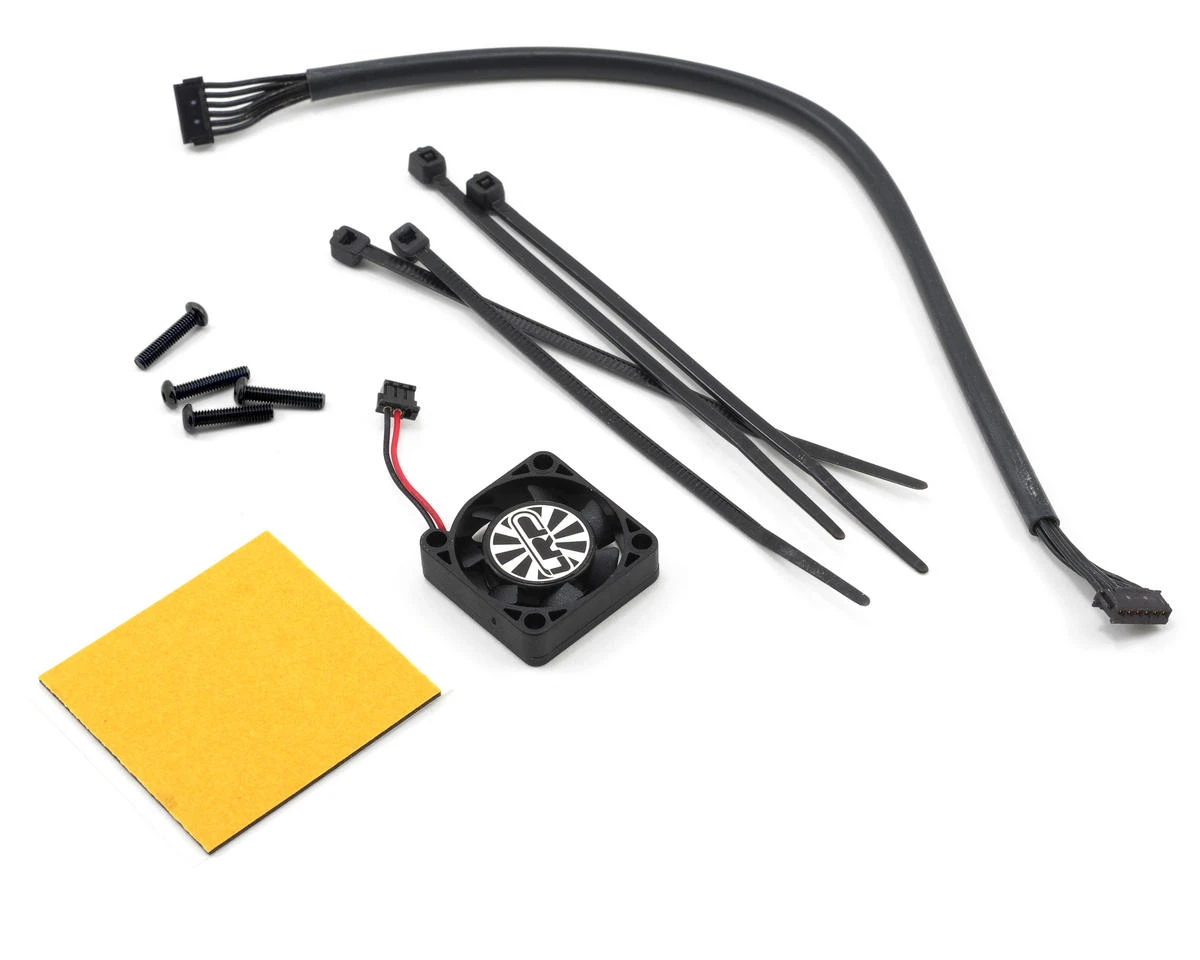

• Pluggable high performance fan – Simple installation and efficient cooling for low motor limits

Specifications:
Voltage Input: 7.2 – 14.8V (2S-4S LiPo)
Rated Current: 200A/phase
Typical Voltage Drop @20A: 0.022V/phase
Dimensions: 36×38.5x22mm
Weight (without wires): 32g
Recommended Motor Limit (2S 7.4V): over 5.5T
Recommended Motor Limit (3S 11.1V): over 9.5T
Recommended Motor Limit (4S 14.8V): over 12.5T

This product was added to our catalog on January 27, 2022
