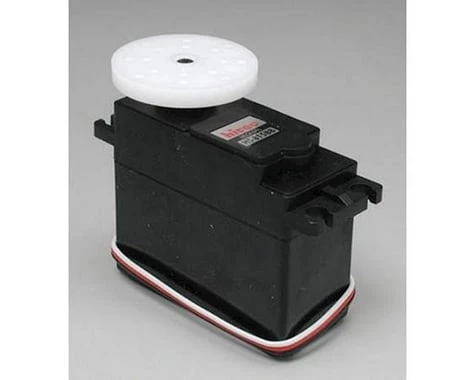

Hitec Mega Sail Arm Servo HS-815BB: Universal

The HS-815BB Mega sail arm servo has up to 140 degrees of travel and comes with a Heavy Duty 4.25 inch arm. With its dual ball bearing supported output shaft the HS-815BB will provide years of reliable service in larger sailboat applications

Key Features:

• Up to 140 degrees of travel
• 4.25 inch (108mm) arm
• Dual Ball Bearing Supported Output Shaft
• Water and Dust Tight

Specifications:

• Speed:
• 4.8V: 0.19 sec/60 deg.
• 6.0V: 0.14 sec/60 deg.
• Torque:
• 4.8V: 275 oz/in
• 6.0V: 343 oz/in
• Length: 2.6in (66mm)
• Width: 1.18in (30mm)
• Height: 2.27in (57.6mm)
• Weight: 5.36oz (152g)

Limited Warranty:
Hitec Servo Warranty: Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall REPAIR OR REPLACE, at Hitec RCD, INC., defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.
