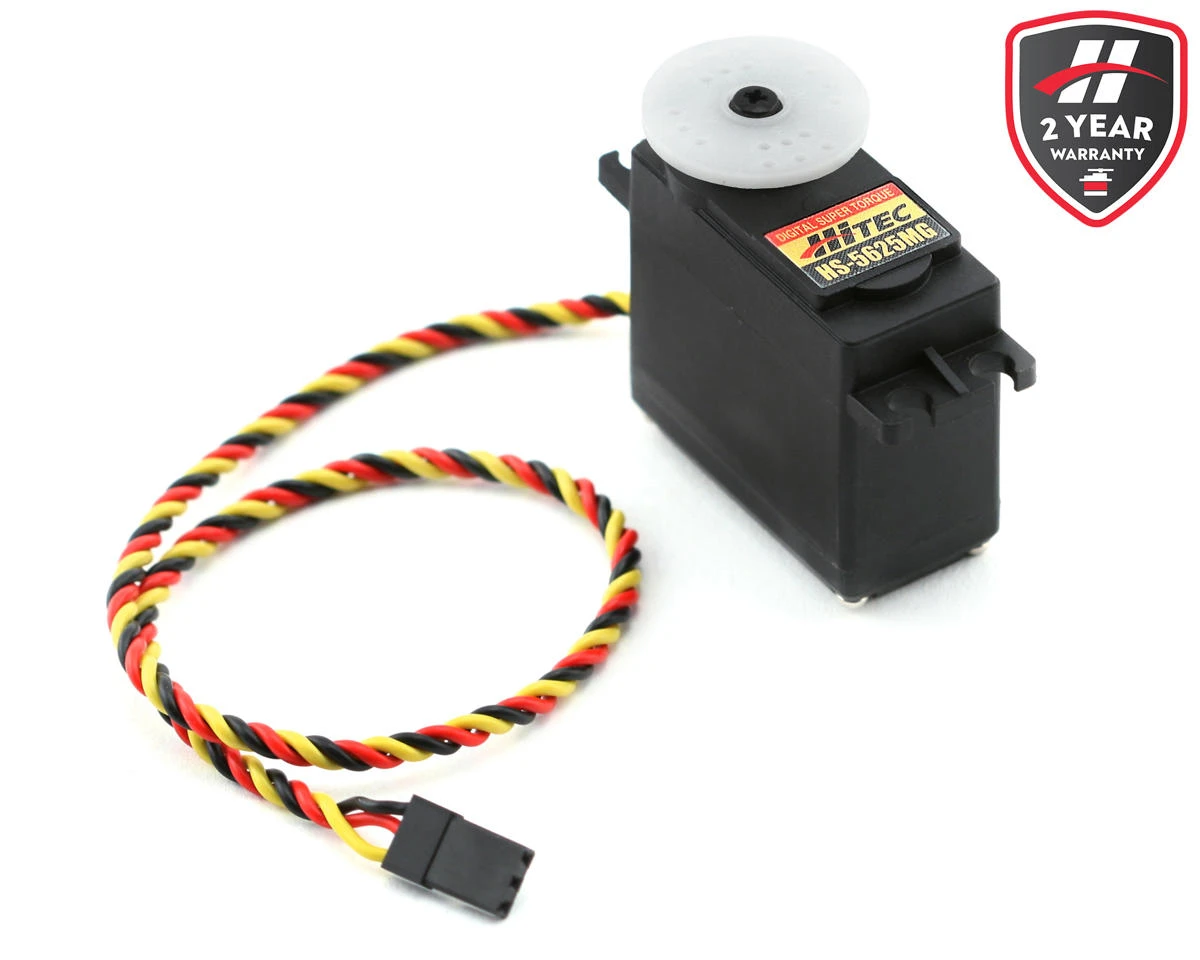

Hitec HS-5625MG Hi-Speed Metal Gear Servo

For those applications that require a fast standard size servo, the HS-5625MG is an excellent choice. With a custom designed programmable digital circuit and our unique MP/metal gear train technology, the HS-5645MG will deliver powerful high speed results!

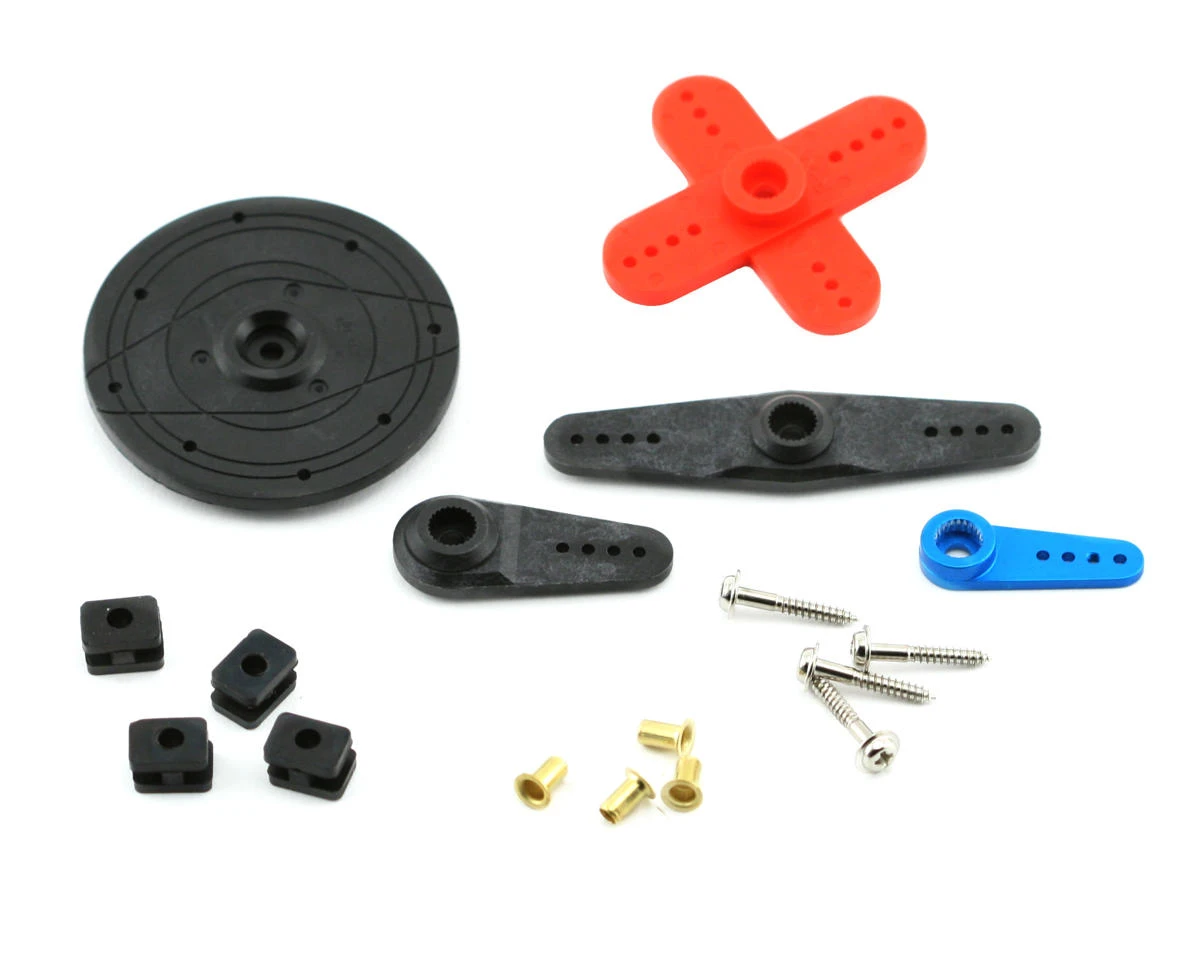

Metal Horn Included

Key Features:

• Programmable Digital Circuit
• Unique MP/Metal Gear Train Technology

Specifications:

• Speed:
• 4.8V: 0.17 sec/60 deg.
• 6.0V: 0.14 sec/60 deg.
• Torque:
• 4.8V: 109.7 oz/in
• 6.0V: 130.53 oz/in
• Length: 1.59in (40.38mm)
• Width: 0.77in (19.5mm)
• Height: 1.48in (37.5mm)
• Weight: 2.11oz (59.7g)

Limited Warranty:
Hitec Servo Warranty: Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall REPAIR OR REPLACE, at Hitec RCD, INC., defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.

This product was added to our catalog on November 14, 2007
