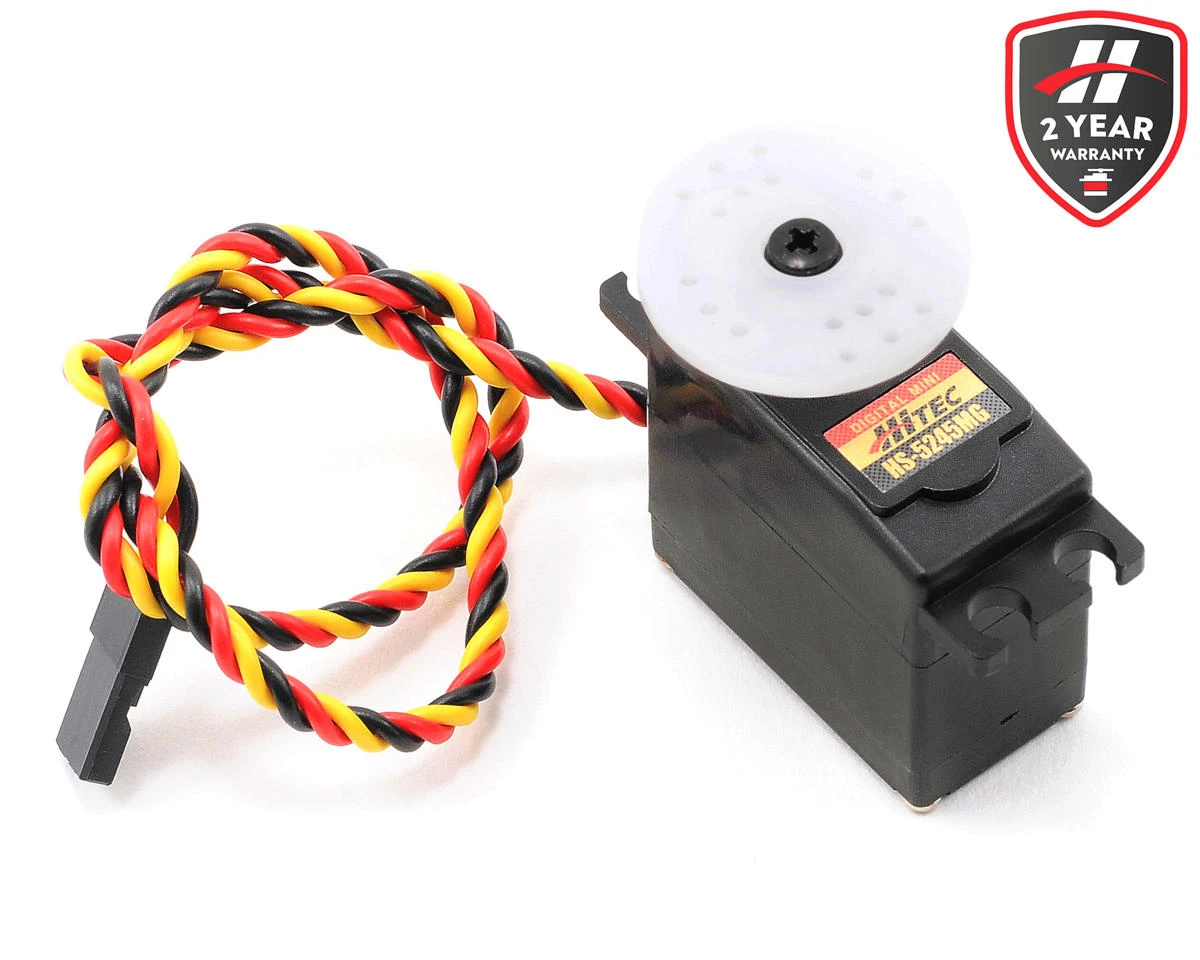

Hitec HS-5245MG Digital Metal Gear Mighty Mini Servo

This is the HS-5245MG Metal-Geared, Ball Bearing, Hi-Torque Digital Servo from Hitec. The HS-5245MG is latest addition to Hitec’s ever evolving digital servo line. With a custom designed programmable digital circuit and our unique Alumite gear train technology the the HS-5245MG is ideal for applications that call for a small lightweight, high speed, high torque servo. By utilizing the standard size Hitec spline, any horn or arm that fits on a standard Hitec servo will fit on the HS-5245MG.

Specifications:

• Speed:
• 4.8V: 0.15 sec/60 deg.
• 6.0V: 0.12 sec/60 deg.
• Torque:
• 4.8V: 61 oz/in
• 6.0V: 76 oz/in
• Length: 1.26in (32mm)
• Width: 0.67in (17mm)
• Height: 1.22in (31mm)
• Weight: 1.13oz (32g)

Limited Warranty:
Hitec Servo Warranty: Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall REPAIR OR REPLACE, at Hitec RCD, INC., defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.

This product was added to our catalog on December 20, 2006
