Fantom ICON Torque V2 “Team Edition” Fixed Timing Brushless Motor (13.5T)

The Fantom ICON Torque V2 “Team Edition” Fixed Timing Brushless Motor is designed for power, torque and RPM. This fixed timing edition features a fixed timing end-plate designed specifically for the 13.5T Dirt Oval Fixed Timing class. Using Fantoms patented stator design, these motors provide maximum torque and insane RPM.

Team Edition:
Professionally built to Fantom’s strict standards, which includes the rotor properly shimmed, complete evaluation of the coils, rotor strength, rotor asymmetry, and sensor board deviation. All test results printed and included in the box.

• Fixed Timing end plate specifically developed for the 13.5 Dirt Oval fixed timing class
• Stator Design for Maximized Torque and Efficiency
• 12.5mm ROAR Spec Rotor Installed with Super High Strength and Heat Resistant Magnet Formula
• Sensor Board is Design for Improved Deviation Accuracy & Reliability
• Maximum Size ROAR Legal, Pure Copper Wire for the Lowest Resistance Possible
• High-Inductance / Low Resistance, 3mm Aluminum, Silver Plated Collector Ring
• Premium Grade Kawasaki® Steel Stator Plates

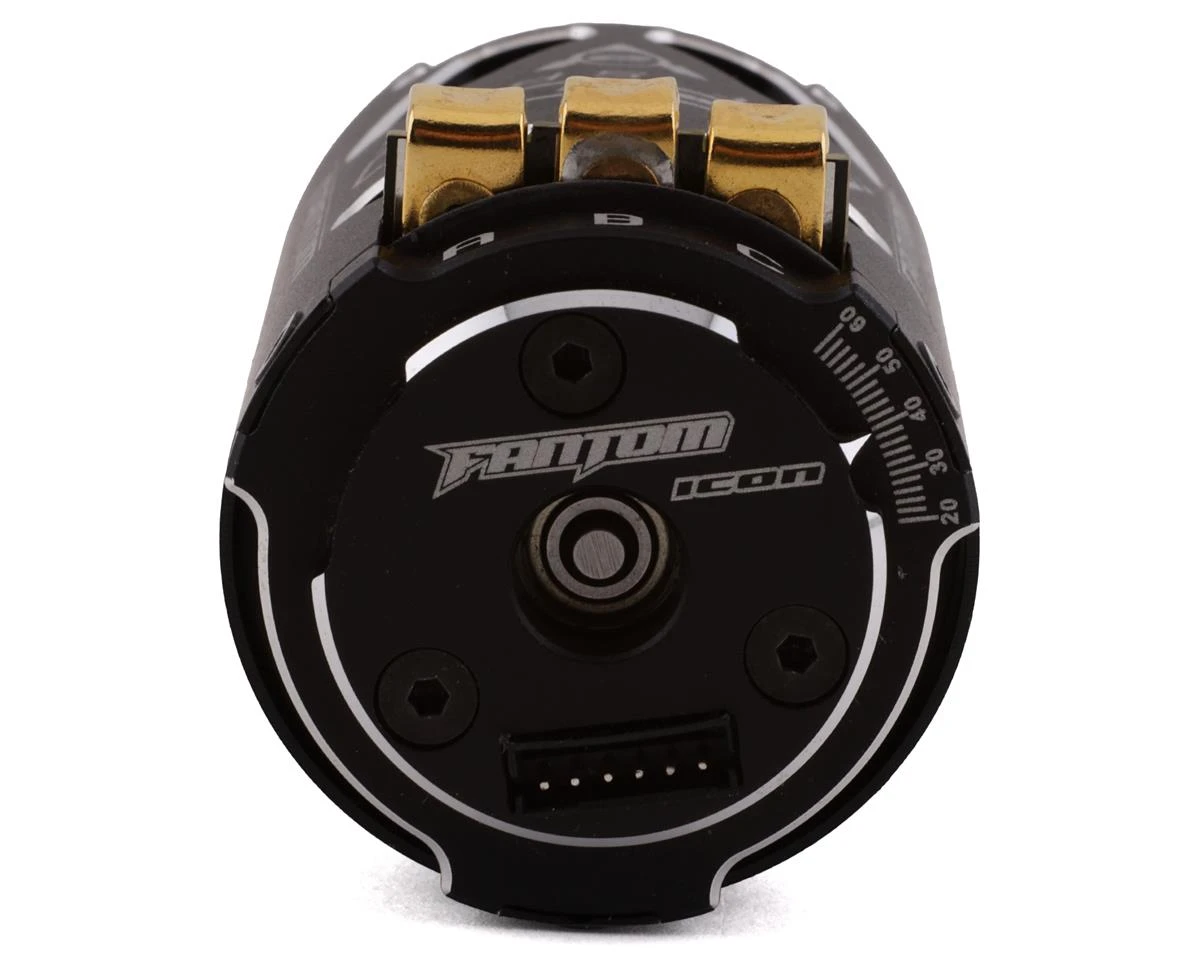

• CNC Machined Billet T6 Aluminum End Plate for Precision Bearing Alignment
• High RPM Precision Bearings
• ROAR Approved

Turn: 13.5T

Voltage: 2S

Weight: 5.10oz (146g)

Motor Diameter: 36mm

Motor Length: 53.20mm

Shaft Diameter: 1/8″ (3.175mm)
