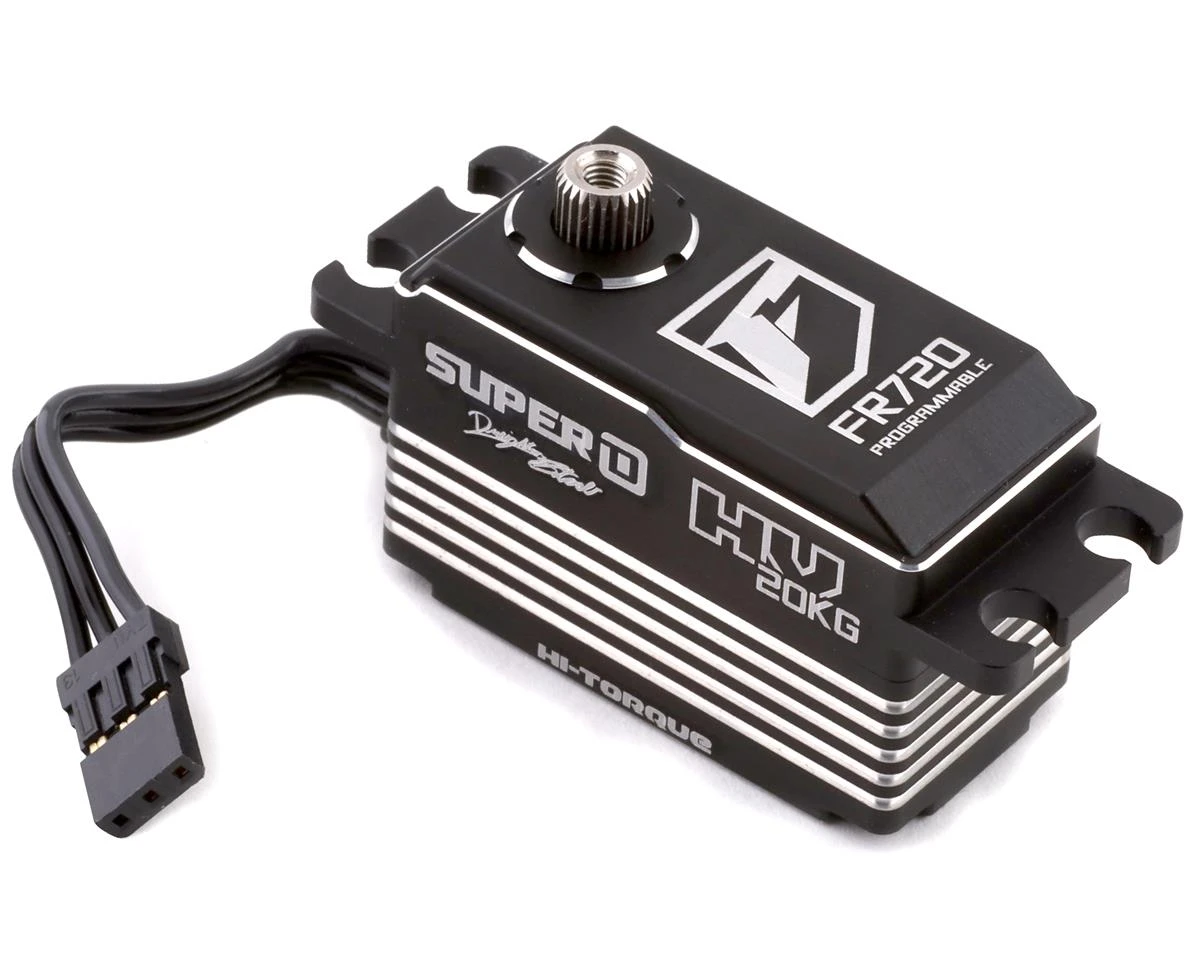

Fantom FR720 “Super D” Low Profile Programmable Servo

Fantom FR720 “Super D” Low Profile Programmable Servo. This servo was developed with the help from Fantom team driver Dreighton Stoub a.k.a. “Super D”. This low profile servo comes with an aluminum servo horn and is a great option for 1/10 buggy applications.

Features:

• High Performance Low Profile Digital Racing Servo
• Precision Steel Gears
• Brushless Motor
• Dual Ball Bearings
• Full Aluminum Cooling Case
• Water and Dust Resistant (not water proof)
• Programmable with Fantom USB Programmer (FAN22805)

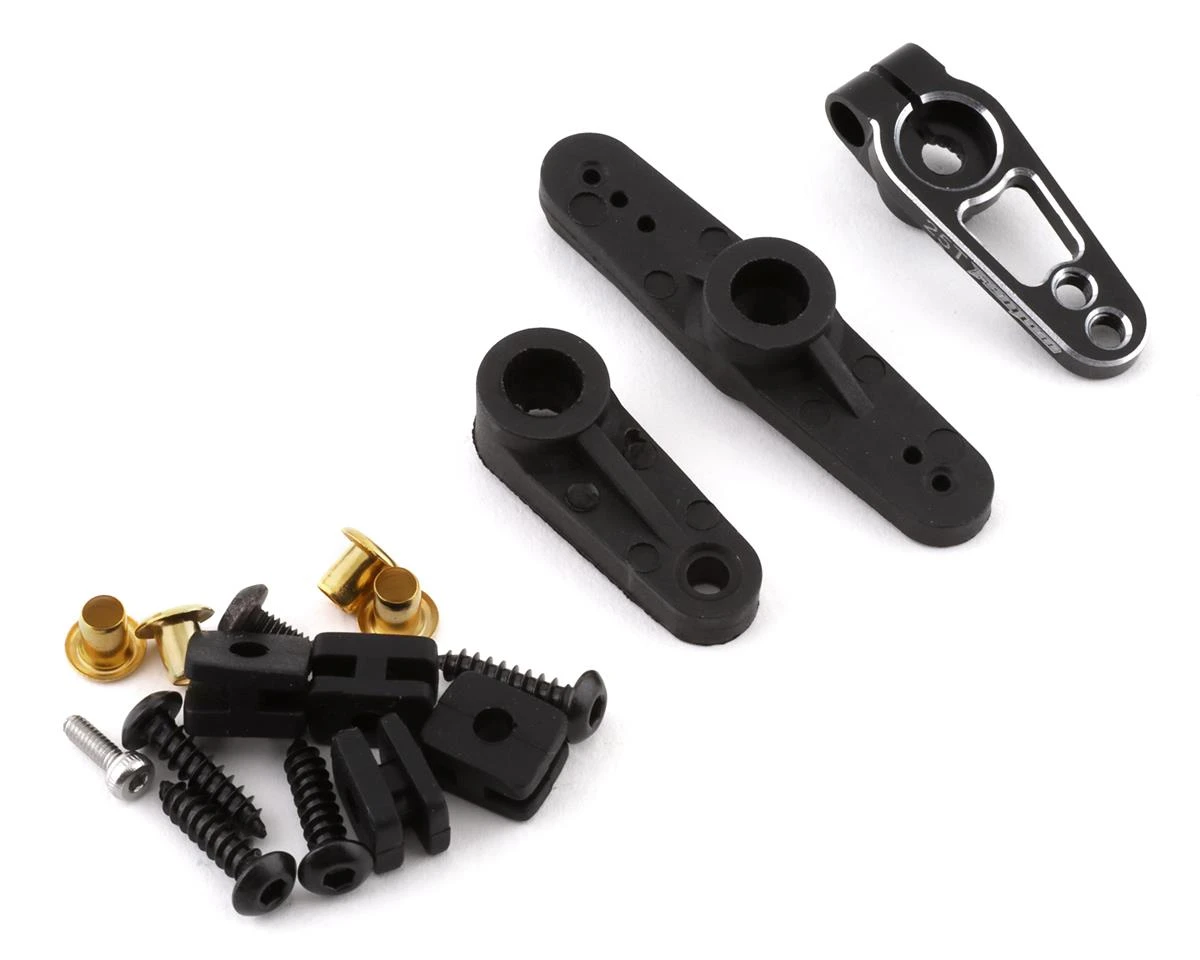

• Included 25 Tooth Aluminum Servo Horn
• Ideal for for all surface 1/10 racing applications

• Operating Voltage: 4.8-8.4 V
• Speed:
• 6.0V: 0.090sec/60°
• 7.4V: 0.080sec/60°
• 8.4V: 0.070sec/60°
• Stall Torque:
• 6.0V: 17.0 kg-cm (236 oz-in)
• 7.4V: 19.5 kg-cm (271 oz-in)
• 8.4V: 20.0 kg-cm (278 oz-in)
• Control System: PWM (Pulse Width Modulation)
• Signal Mode: Digital
• Refresh Rate: 333 Hz
• Neutral Position: 1520uS
• Signal Range: 500 to 2500 uSec
• Dead Band: 2 uSec
• Operating Travel: 180º ± 10°
• Mechanical Angle: 220°
• Gears: Steel
• Case Material: Full Aluminum
• Motor: Brushless
• Size LxWxH: 40.8×20.2×26.5mm (1.60×0.79×1.04in)
• Operating Temperature: 5° to 158º F.
• Weight: 62g
• Connector Wire: 50mm JR
