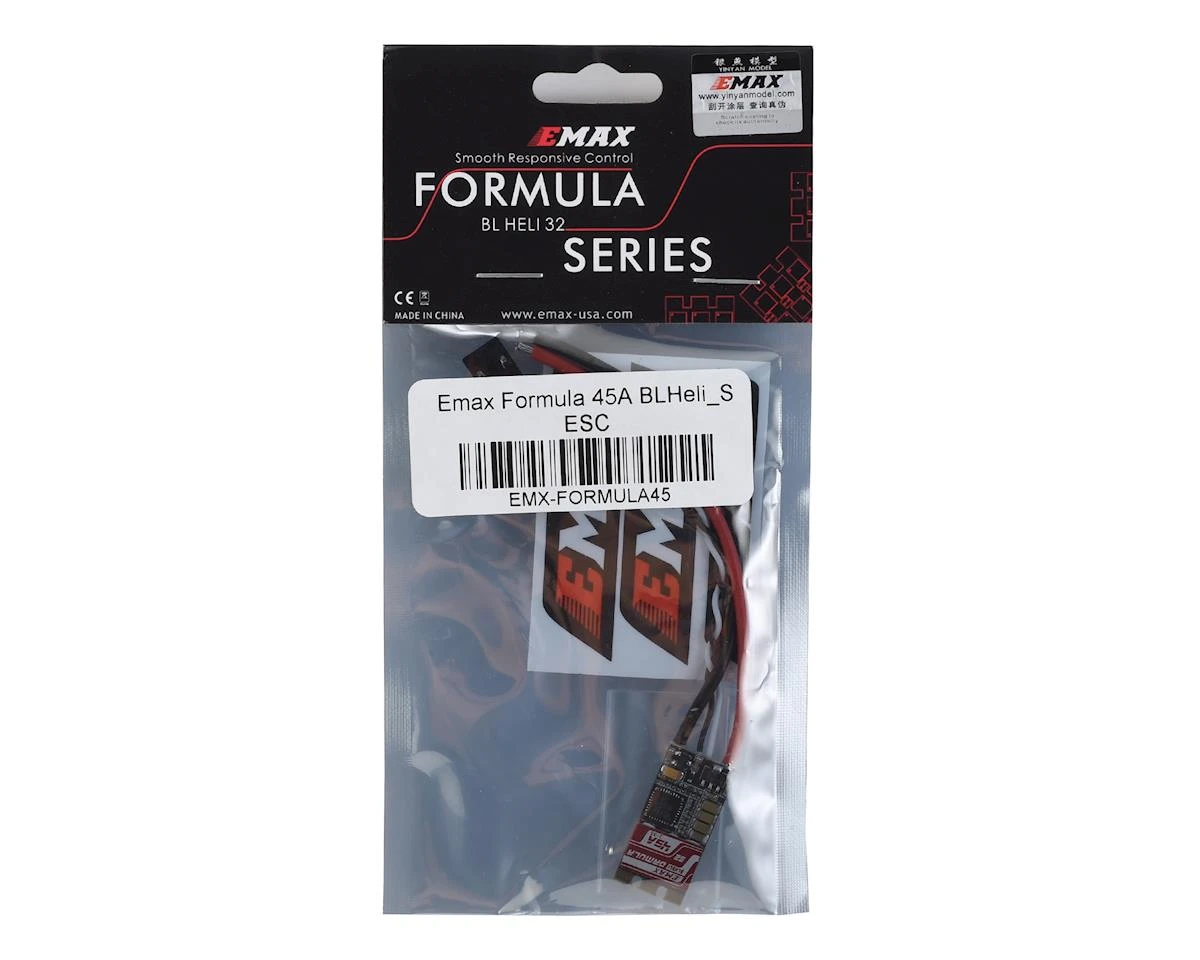

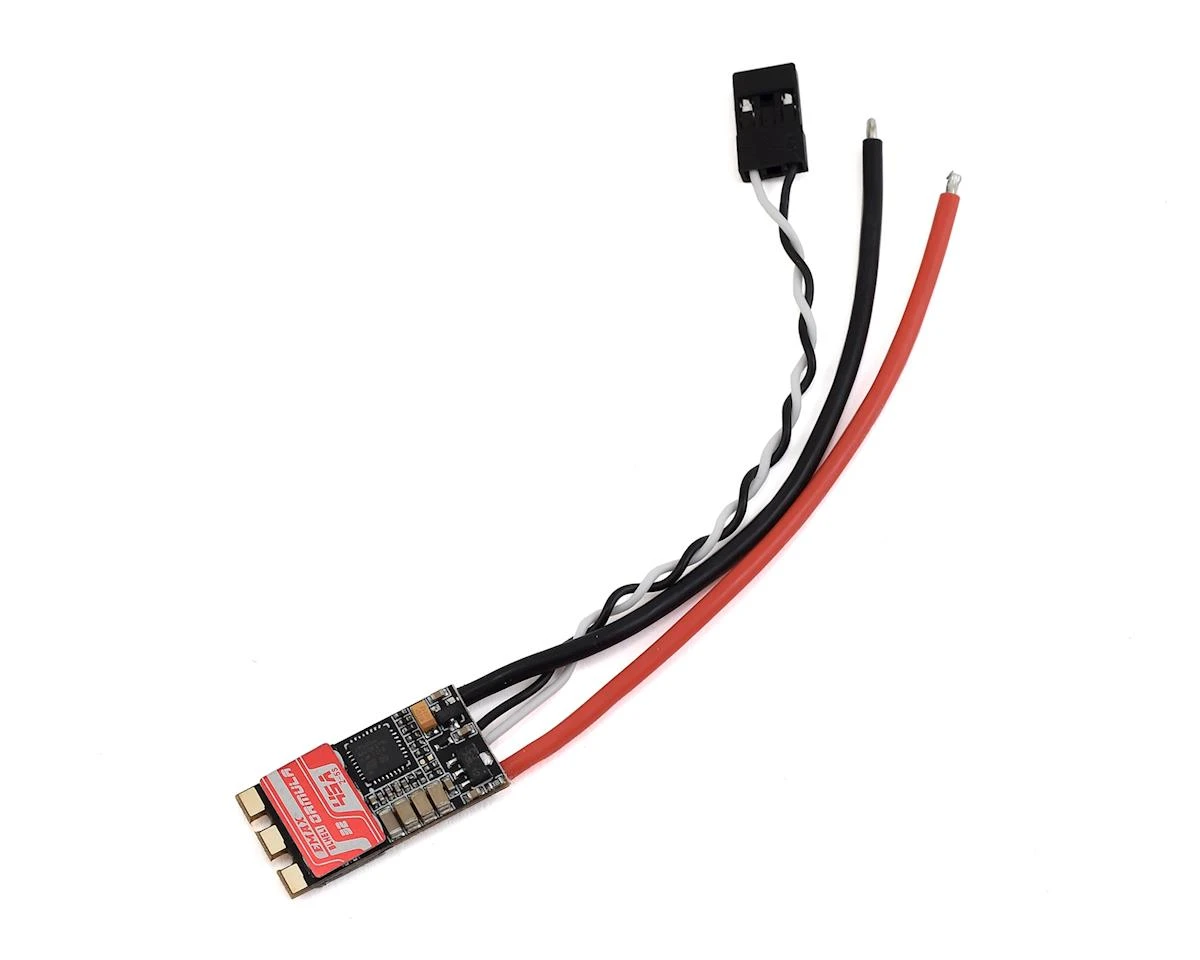

Emax Formula 45A BLHeli_32 ESC

The EMAX Formula Series of ESC’s offer an excellent array of features that have became high in demand! This is a specific BLHeli32 capabale design that pushes the limits of what’s available in technology. Lightweight and small, the Formula32 provides 45A of power in conjunction with the ability to run DSHOT 1200 providing unheard of throttle smoothness. When paired with Flight Controllers running 32KHZ PID loops, the Formula31 will deliver efficient and controlled power to your high speed racing drone.

Specifications:
Input Voltage: 2 – 5 cells, 2S-5S LiPo
Constant Current: 45 Amps
Burst Current: 55 Amps
Weight: 2.6g bare board (wires removed)
Dimensions: 27.6×13.6mm (board dimensions only)
BEC: None

This product was added to our catalog on February 16, 2018
