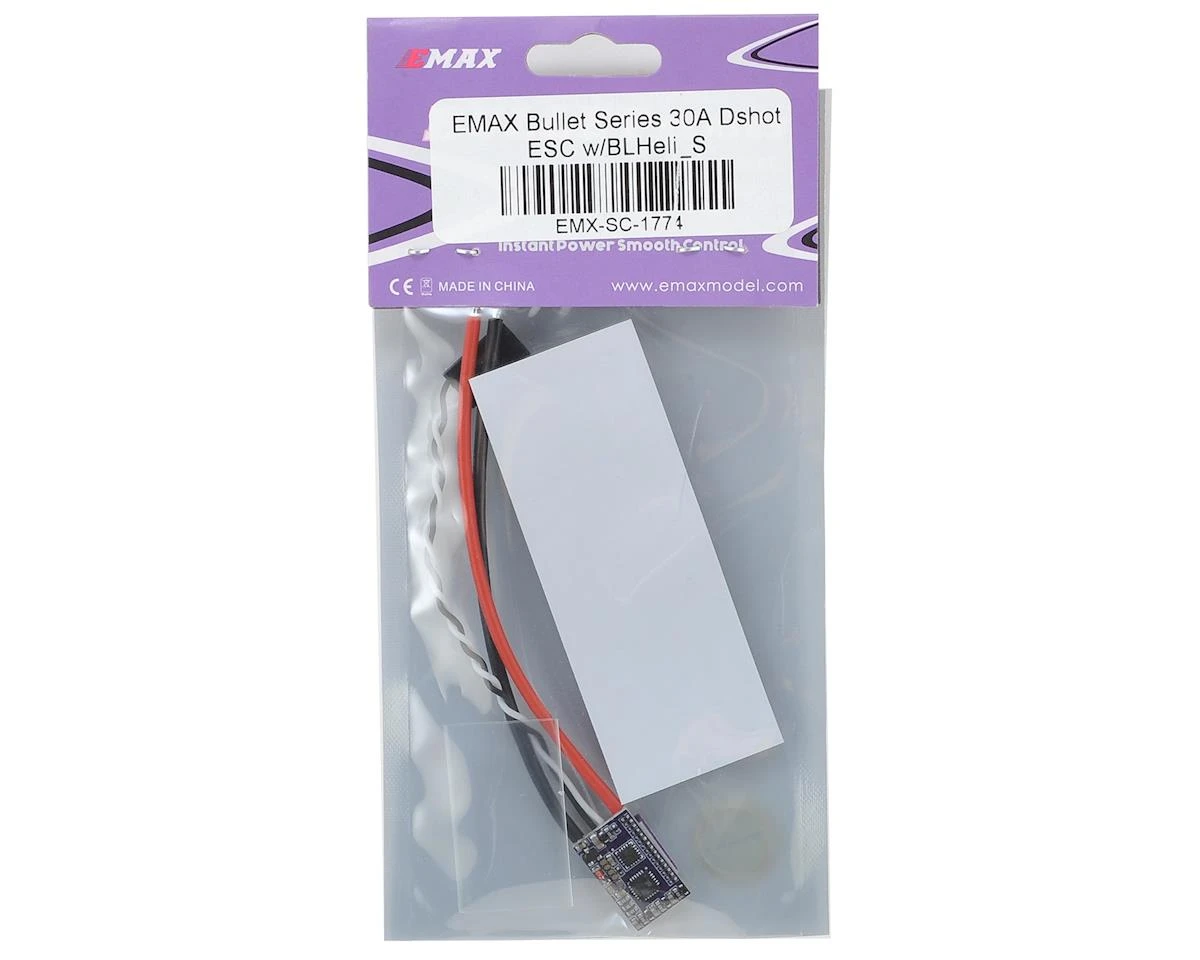

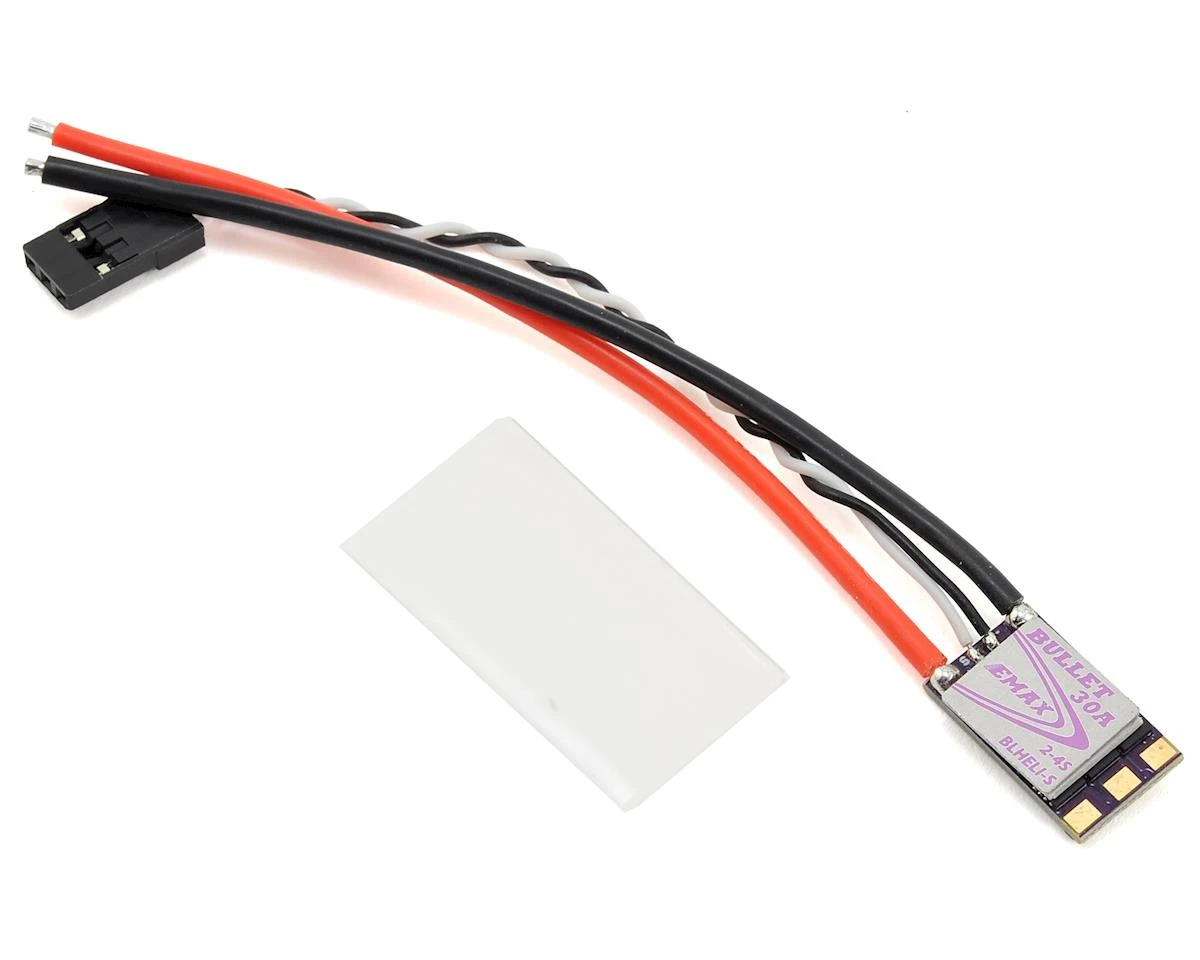

Emax Bullet Series 30A Dshot ESC W/BLHeli_S

The EMAX Bullet Series of ESC’s offer an excellent array of features that have became high in demand. The first clear feature is their physical size compared to competitors, forget the previous “small” ESC’s within each amperage class because EMAX has shrunk the size down substantially. The BLHeli_S Firmware equipped on the Bullet ESC’s also now support DSHOT*** and also Multishot, and OneShot protocols. Additionally the built in heat sink provides both lower overall core temperature and impact resistance against propeller strikes.

NOTE***: The Bullet 35A does not directly support DSHOT out of the package.

Features:

• BLHeli_S Firmware
• DSHOT/MultiShot/OneShot Support
• MOSFETS sourced from Toshiba Japan
• Murata Ceramic Capacitors
• 3oz High-TG PCB Board

Specifications:
Input Voltage: 2 -4 cells, 2S-4S LiPo
Constant Current: 30 Amps
Burst Current: 35 Amps
Weight: 5g w/ wires, 4g bare board (wires removed)
Dimensions: 12x20x5.5mm (board dimensions only)
Battery Wire: 18awg
Throttle Wire: 105mm
BEC: None

This product was added to our catalog on April 18, 2017
