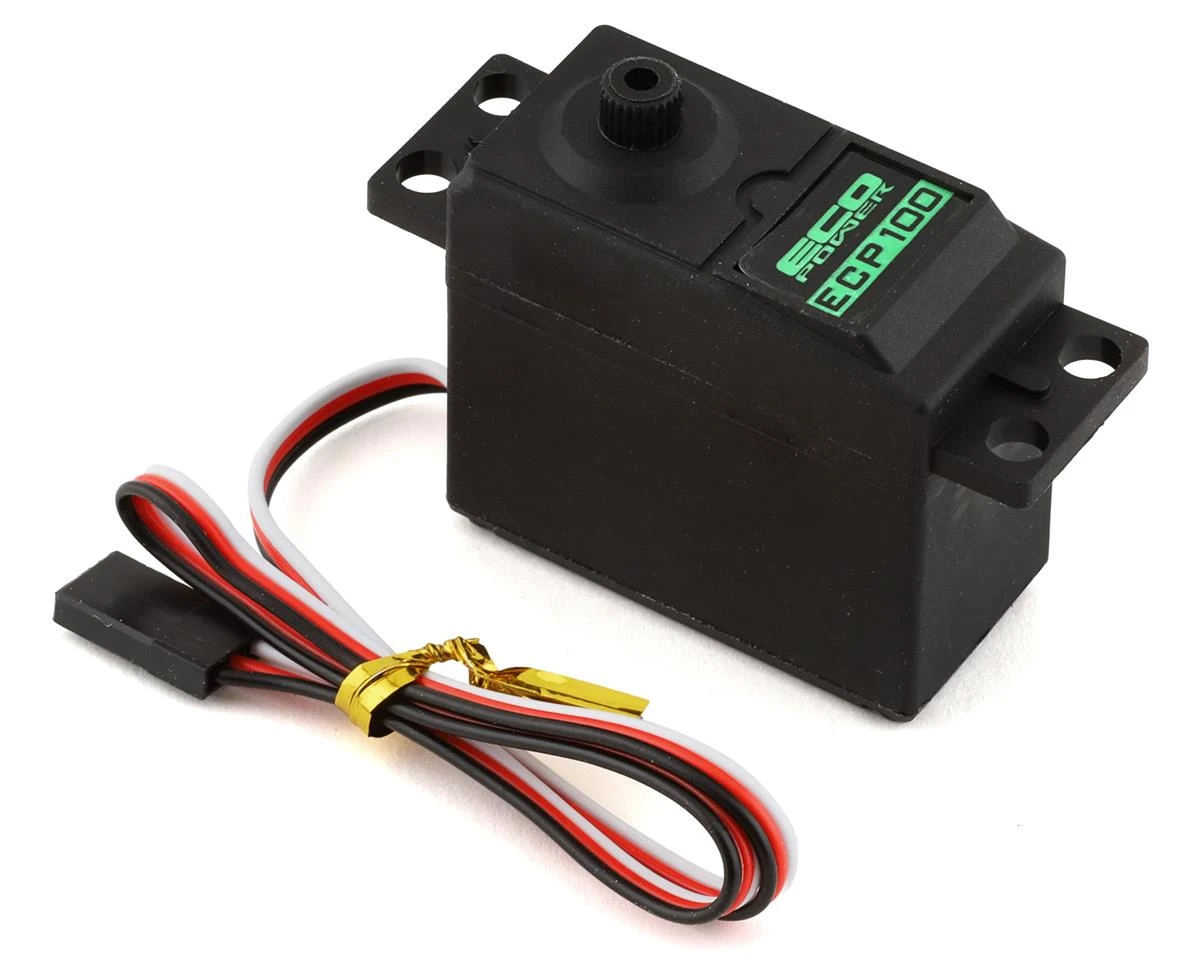

EcoPower 100 Standard Ball Bearing Servo

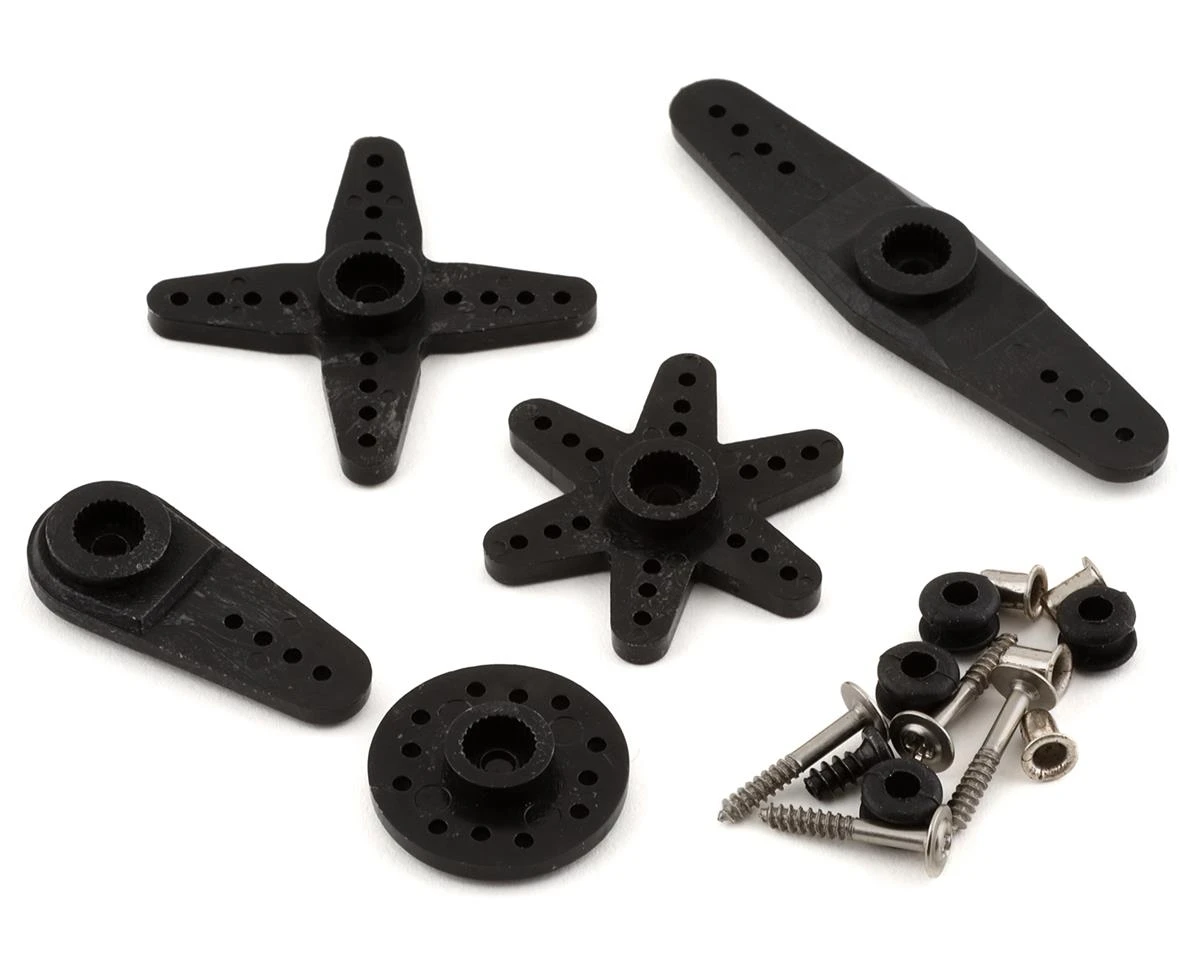

The EcoPower 100 Standard Ball Bearing Servo is an excellent option when you need an affordable, light duty replacement servo. The EcoPower 100 servo has been designed specifically for light duty 1/10 vehicles or RC airplanes equipped with standard size servos. The servo features smooth ball bearing control, durable nylon gears and a long 265mm servo lead. Package includes one servo, one servo mount set, five molded servo horns and hardware.

NOTE: This servo is not designed for use with fuel-powered surface or air use.

Servo Model	100
Recommended Application	Light Duty Surface & Air
Waterproof	No
Operating Voltage	4.8V – 6.0V
Operating Speed @ 4.8V	0.2/60° sec
Operating Speed @ 6.0V	0.18/60° sec
Dynamic Torque @ 4.8V	62 oz-in (4.4 kg-cm)
Dynamic Torque @ 6.0V	89 oz-in (6.4 kg-cm)
Motor Type	Cored DC
Output Shaft	25 Tooth
Gears	Nylon
Weight	36g
Dimensions	40.5x20x42.25mm (LxWxH)

NOTE: Be sure to set your End Point Adjustments when using this servo to ensure long life and performance. For more information on End Point Adjustments, please watch the video below.



This product was added to our catalog on March 3, 2022
