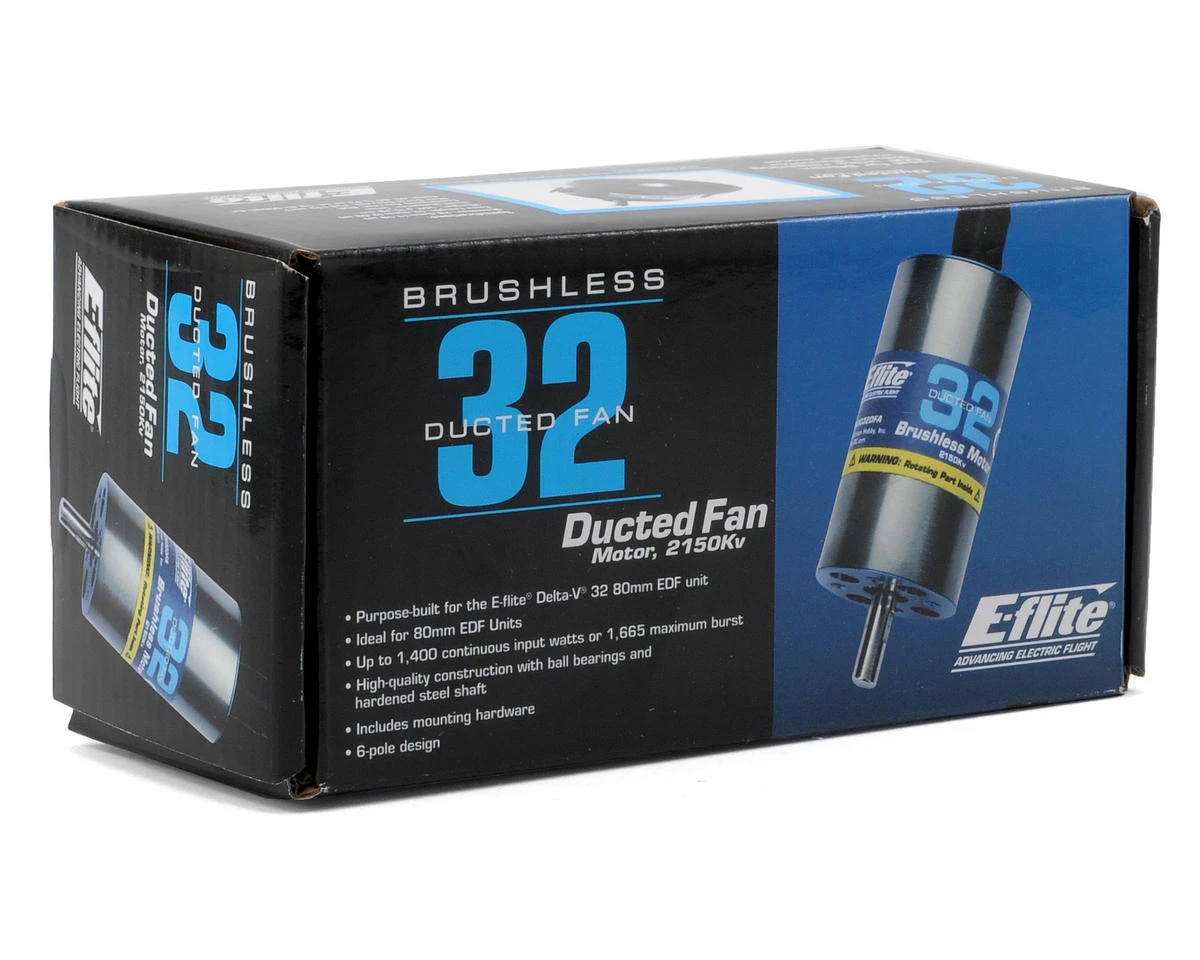

E-Flite BL32 Ducted Fan Motor (2150kV)

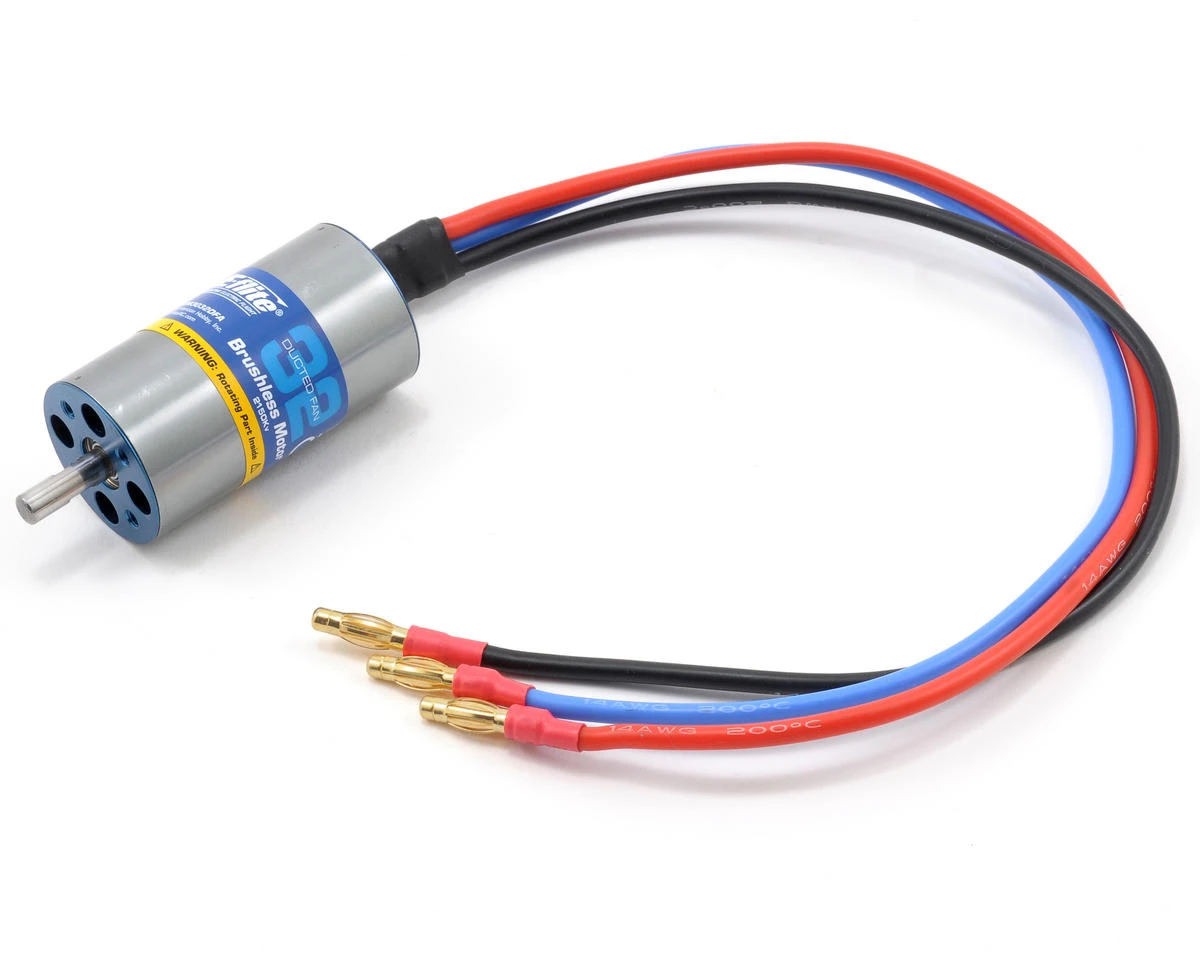

This is the E-flite BL32 2150kV Ducted Fan Motor. E-flite’s BL32 DF Brushless Motor is an ideal choice for products such as E-flite’s Habu 32 DF and other similar-sized ducted fan airplanes when using the purpose-built Delta-V 32 80mm EDF (EFLDF32). This motor will provide great performance in 80mm diameter fan units that require a 28mm inrunner motor.

Features:

• 6-pole design
• Ideal for 80mm EDF Units
• Includes mounting hardware
• Purpose-built for the E-flite® Delta-V® 32 80mm EDF unit
• Up to 1,400 continuous input watts or 1,665 maximum burst
• High-quality construction with ball bearings and hardened steel shaft

Specifications:
Type: Brushless Inrunner
Size: 32-size for Ducted Fans
Bearings or Bushings: Bearings
Wire Gauge: 14 AWG
Voltage: 14.8V – 22.2V
RPM/Volt (Kv): 2150Kv
Resistance (Ri): 0.026Ω
Idle Current (Io): 2.6A @ 20V
Continuous Current: 62A
Maximum Burst Current: 75A
Cells: 4S-6S Li-Po or 14-18 cells NiCd/NiMH
Speed Control: 80A
Weight: 5.70 oz (162g)
Overall Diameter: 1.10 in (28.0mm)
Shaft Diameter: 0.20 in (5.0mm)
Overall Length: 2.00 in (52.0mm)

This product was added to our catalog on March 23, 2011
