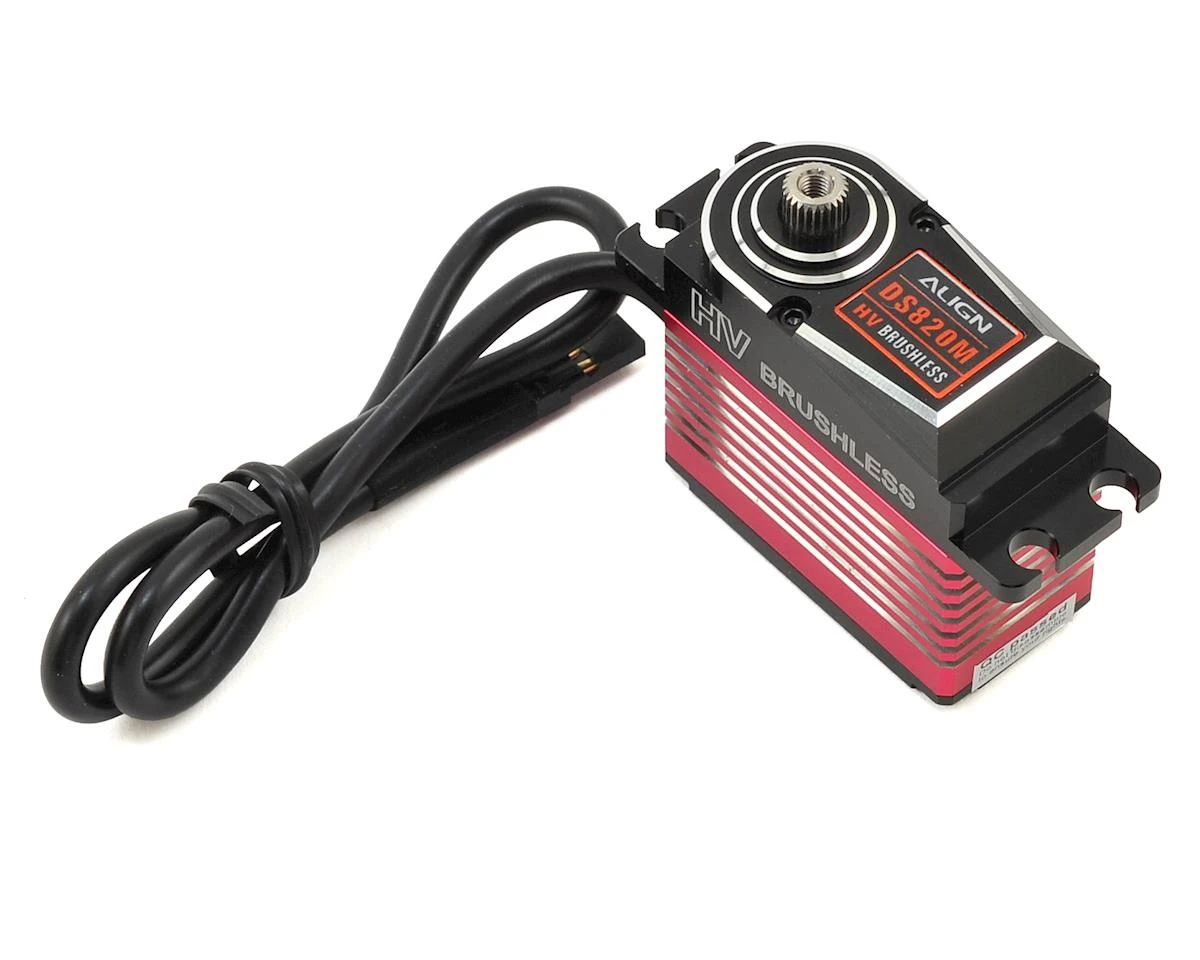

ALIGN DS820M High Voltage Brushless Cyclic Servo

The Align DS820M High Voltage Brushless Servo is utilized for 550-800 sized helicopters on cyclic applications. Featuring a high torque & efficient brushless motor, CNC aluminum servo case, the Align series of Brushless servos will provide incredible performance and reliable performance for countless hours of operation.

Specifications:
Torque: 7.4V: 305 oz/in (22kg.cm) | 8.4V: 320 oz/in (23kg.cm)
Speed: 7.4V: 0.06 sec/60 degrees | 8.4V: 0.055 sec/60 degrees
Input Voltage: 7.4v-8.4v
Temperature Range: -20*C – 60*C
Dimensions: 40x20x39mmm (LxWxH)
Weight: 80g

This product was added to our catalog on May 17, 2017
