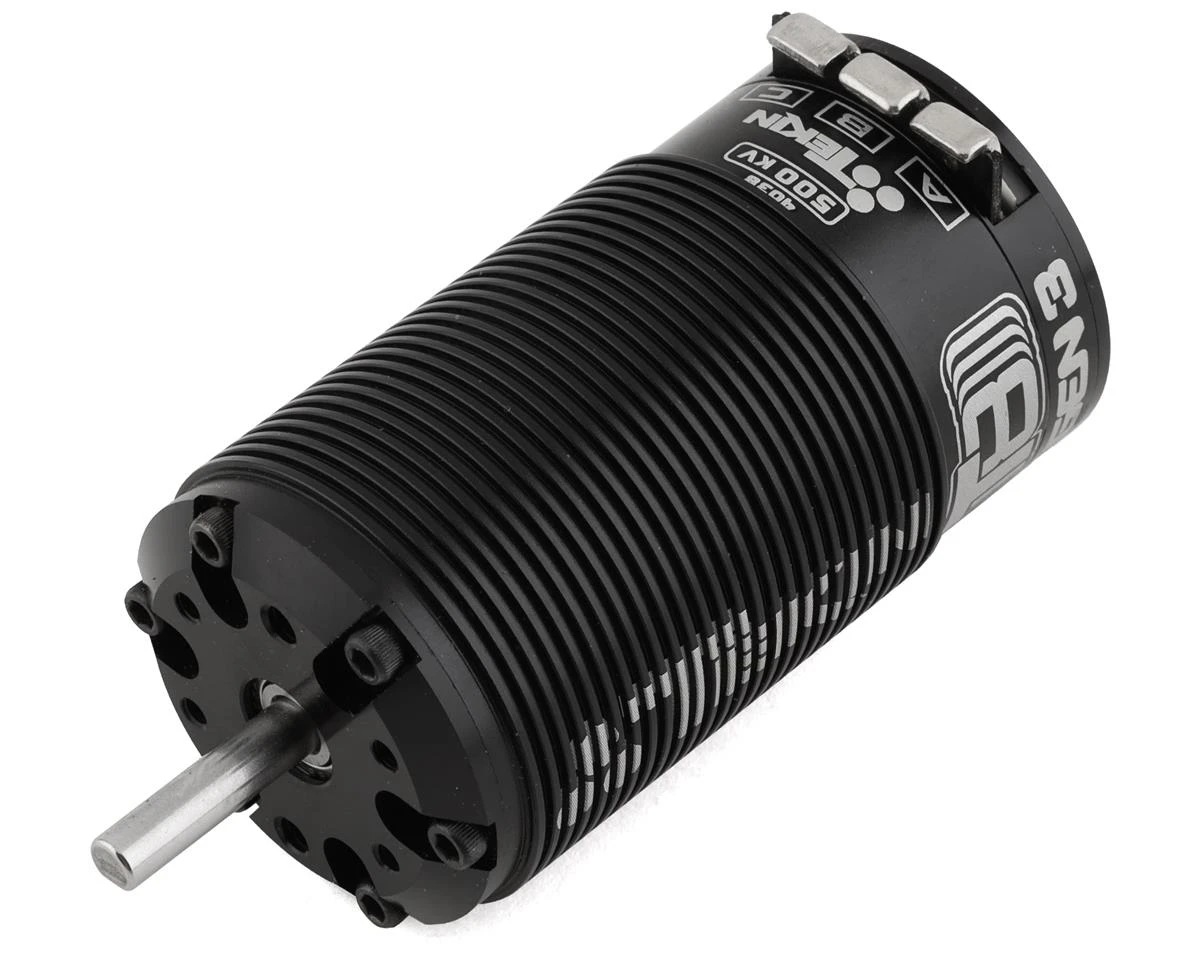

TEKIN Redline T8 GEN3 4038 1/8 Tuggy Brushless Sensored Motor (500kV)

This is the Tekin Redline T8 GEN3 4038 Can, 500kv Brushless Sensored Motor, made specifically for 1/8 Truggy use. Tekin’s T8 GEN3 racing motors are racing performance defined. With a stronger rotor, updated stack features and lower resistance, the T8 GEN3 motors are a versatile, unmatched and advanced power delivery system. Relentless amounts of torque and power are at your disposal with industry-leading RC motor technology. Coupled with an RX8 GEN3 (TEKTT2302) utilizing Tekin’s D2 Dual Drive Technology, the T8 GEN3 packs efficiency and precise control through the entire RPM range.

• CNC Machined 6061 T6 Billet Aluminum Ribbed Heatsink Can
• Matte Anodized for Maximum Corrosion Resistance
• Sensored and Sensorless Operation
• Low Resistance HD Solder Tabs
• Rebuildable Design

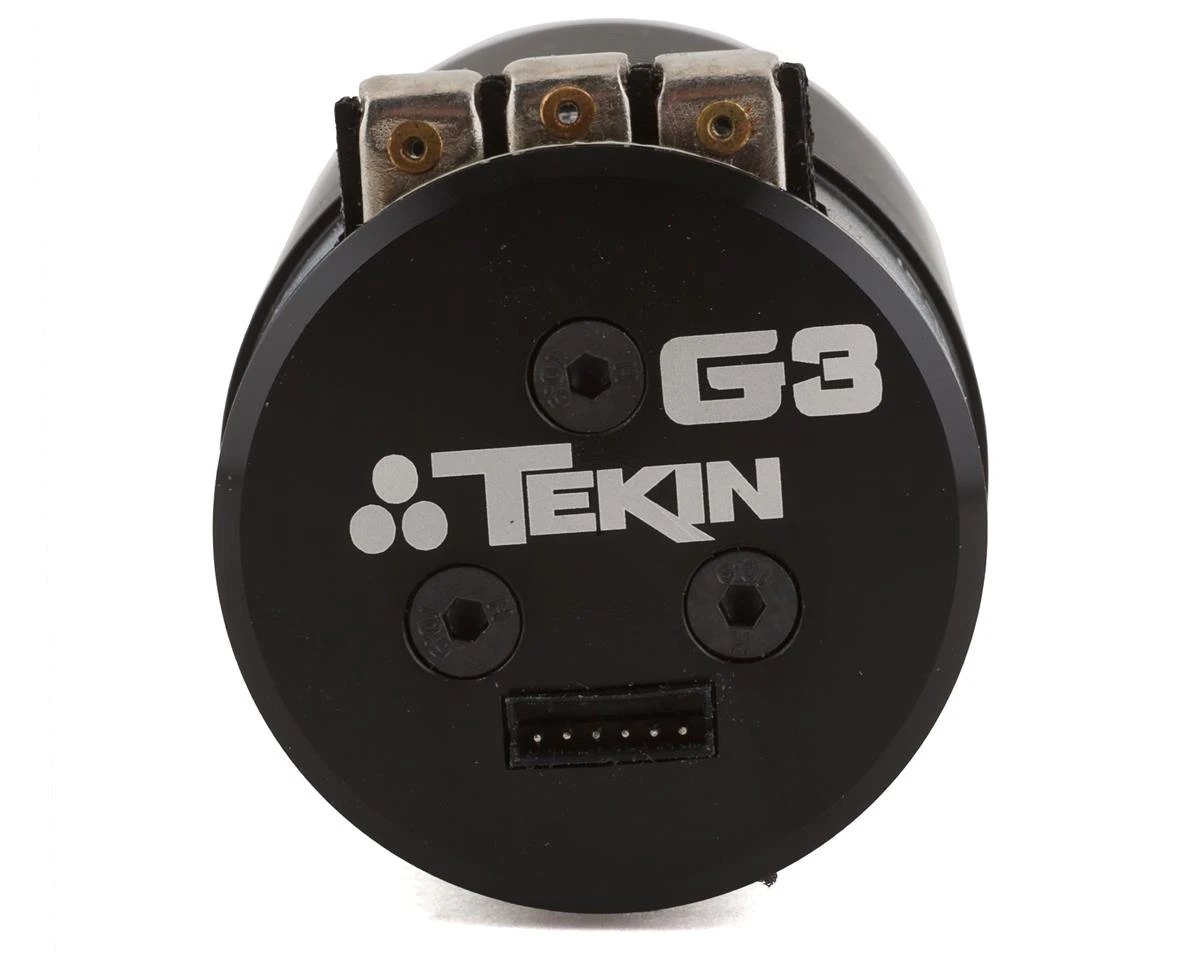

• Solderless Sensor PCB Replacement
• 4-Pole Neodymium Sintered Magnet

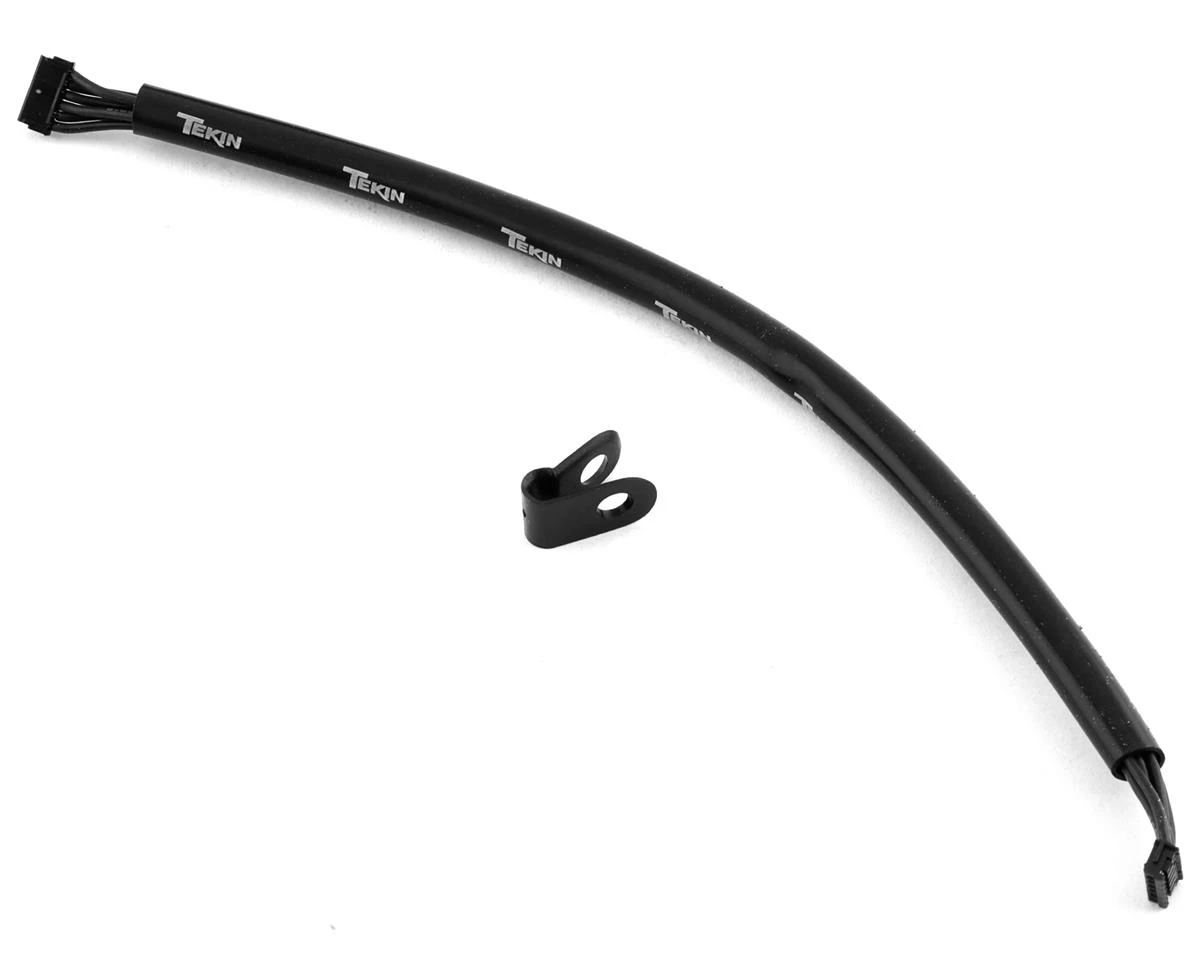

• Dual-Plug Sensor Wire Harness
• ABEC5 Precision High Speed Oversized Bearings
• Precision Engineered for Maximum Energy Conversion
• Designed to be paired with the RX8 GEN3 ESC
• Recommended for 1/8 truggy and 1/8 monster truck applications

Weight: 368g / 13oz

Shaft Dimensions: 5mm (.125″) x 19mm

Motor Diameter: 40mm / 1.57″ (42mm / 1.65″ including fin)

Motor Length: 77mm / 3.03″

Bearing Dimensions: Front: 5 x 16 x 5mm / Rear: 5 x 11 x 5mm

Rotor Size: 18.5mm

Rebuildable: Yes
