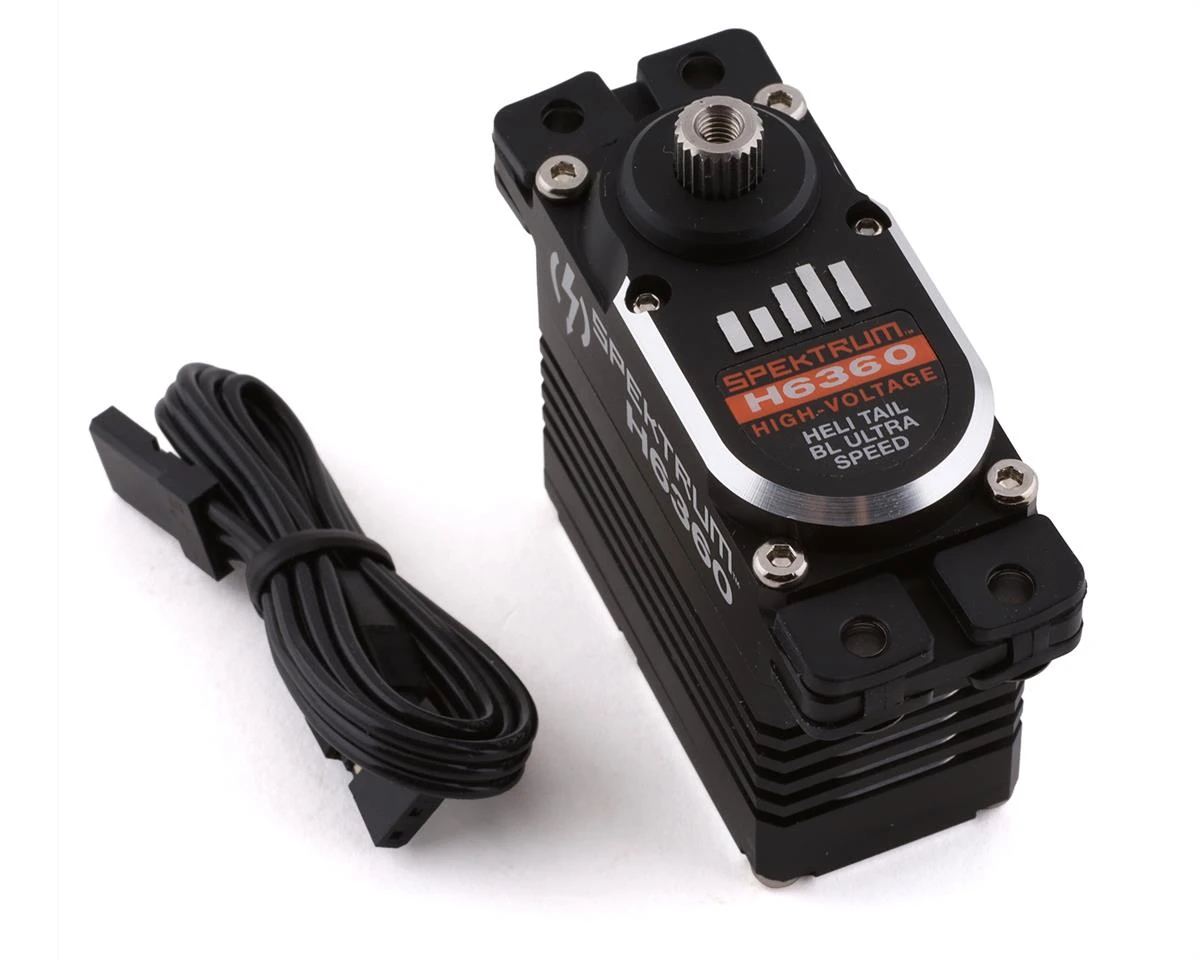

Spektrum RC H6360 HV Torque Ultra Speed Brushless Tail Servo

The Spektrum H6360 HV Torque Ultra Speed Brushless Tail Servo deliver dependable power and digital precision with amazing efficiency. Using finely tuned electronics and software integrate with powerful brushless motor technology to offer ultra-smooth and blindingly fast performance. Heavy-duty servo lead-wire includes the convenience of a quick-release cable connection. The all-aluminum case provides the ultimate solution in durability and heat dissipation. Precision metal gears satisfy even the most critical heli pilot who wants hassle-free control.

The Spektrum H6360 tail servo uses a solid foundation to achieve blinding transit speeds of .04 sec with an outstanding balance of durability and value. This servo is a great choice for of 550- to 700-class electric and nitro helicopters.

Specifications:

Size Category: Standard
Type: Digital
Application: Heli Tail
Torque: 104.9 oz-in (7.56 kg-cm) @ 8.4V
Speed: .04 sec/60° @ 8.4V
Dimensions (WxLxH): 1.57×0.79×1.49in
Length: 1.57 in (40mm)
Width: 0.79 in (20mm)
Height: 1.49 in (37.8mm)
Weight: 2.6oz (73.6g)
Bushing Or Bearing: Bearing
Bearing: Dual
Motor Type: Brushless
Connector Type: Z-Connector
Gear Type: Metal
Gear Material: Metal
Voltage: 6.0-8.4V
Deadband: 2-3 µs

This product was added to our catalog on July 26, 2021
