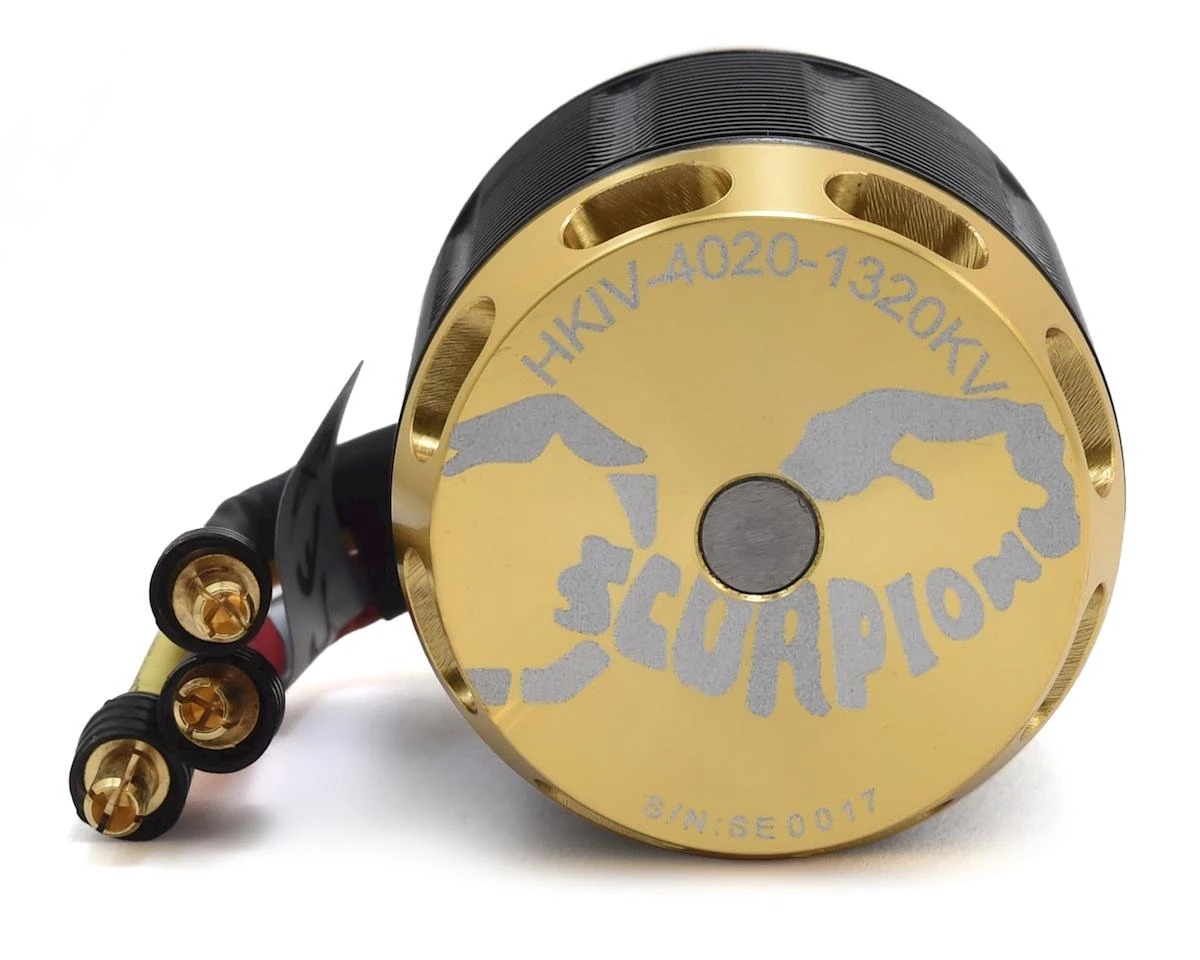

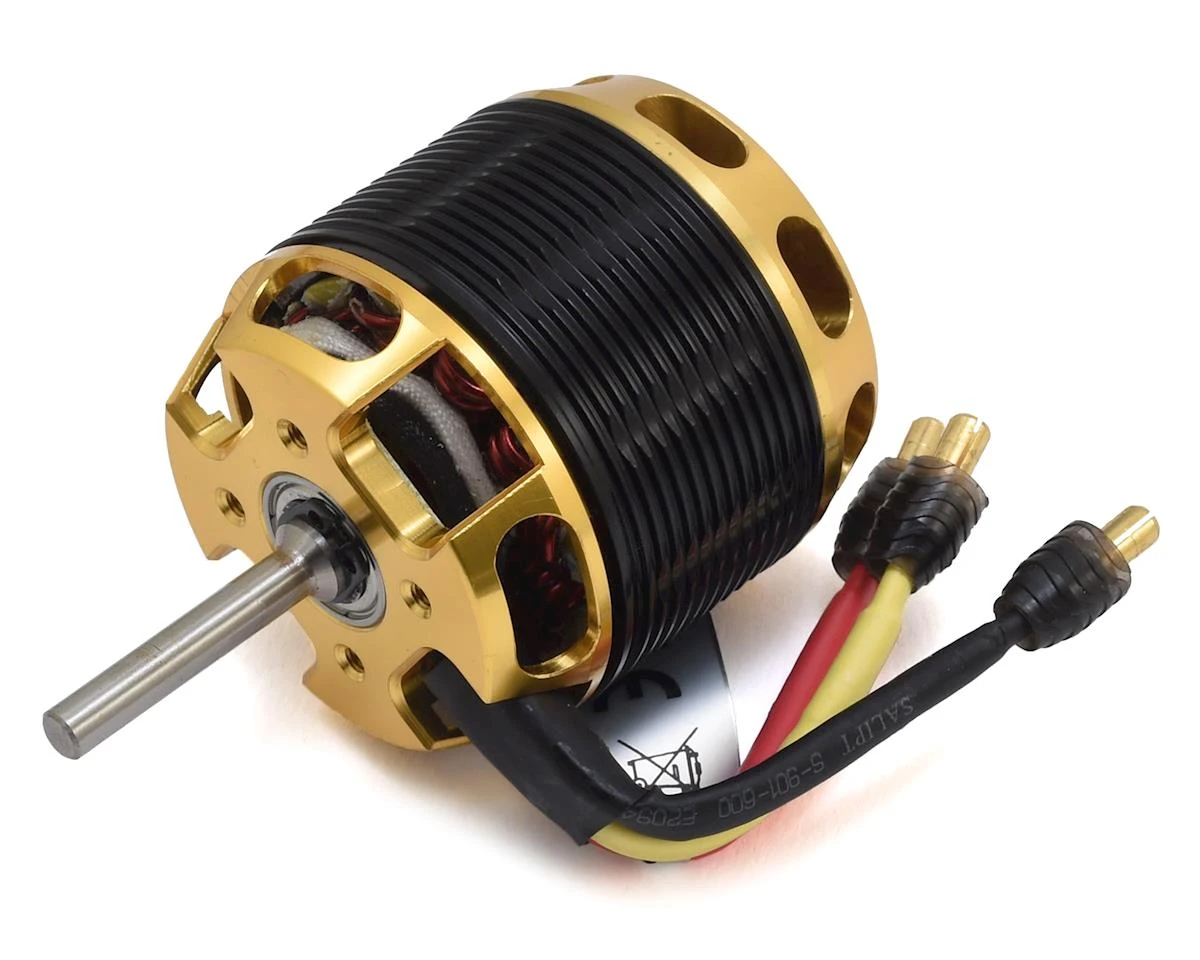

Scorpion HKIV 4020-1320 Brushless Motor (1998W, 1320Kv)

The Scorpion HKIV 4020-1320 Brushless Motor features the same motor design and materials from the HKII-45 series motors, including the single strand winding technique, but have been updated to deliver better efficiency and power conversion than the HKIII-40mm series. With an updated EM field design, the compatibility with various speed controllers available on the market has also improved. This motor will deliver even more power to your helicopter, with increased efficiency – making it the best helicopter motor available for your 500-550 class model!

The Scorpion HKIV Series Brushless Motors are built from the best materials available, and are designed to provide both quality and performance at an affordable price. Scorpion starts with high quality aluminum alloy parts that are produced on the latest CNC milling machines. These parts are then gold and black Electro-Coated to provide a beautiful, long-lasting finish. The stators are made with 0.2mm laminations to give maximum efficiency, and minimum Eddy current losses. The stators are all hand-wound to insure the highest copper fill rate with wire that is rated at 180 degrees C (356 F), and high voltage tested to insure that no shorts are present. The high temperature magnets used in Scorpion Motors are designed to give top performance in the most demanding applications.

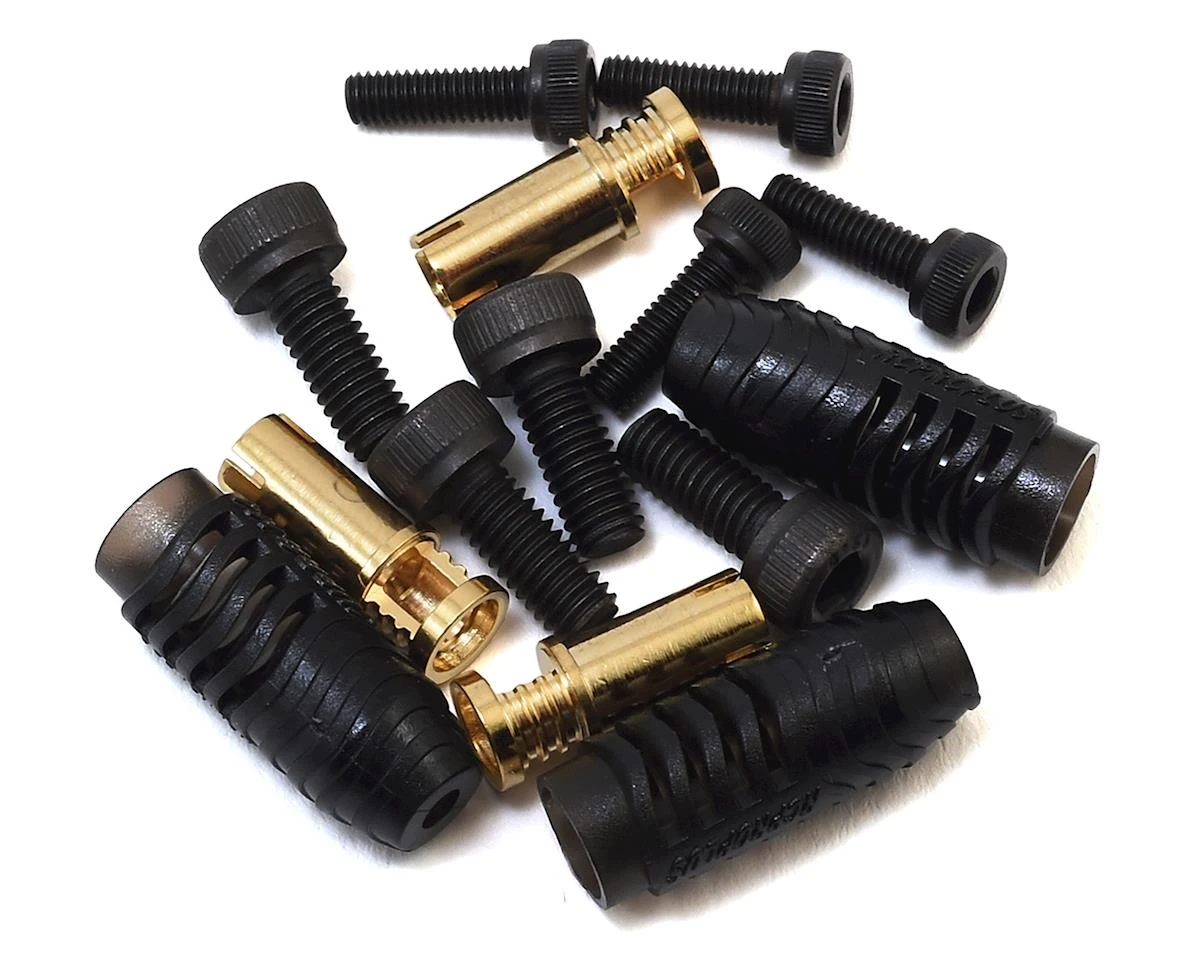

All Scorpion HKIV-4020 series motors come with the High-Current, locking style, 4mm male Bullet style connectors already attached, and include a hardware package that contains four socket head M3 x 0.5mm mounting screws, plus three 4mm female bullet connectors for your speed controller with molded plastic covers. For maximum strength, the Scorpion HKIV-4020 series motors feature an 8mm motor shaft that is ground down to a 6mm diameter at the output end to fit standard size pinion gears. Since the HKIV Series motors are primarily designed for Helicopter use, they do not include a prop adapter. If you intend on running a prop on this motor, you will need to purchase a prop adapter for a 6mm shaft.

Scorpion Motors are built to last, and are backed with a 2-Year manufacturers warranty against defects in materials or workmanship. However, due to the high RPM of these motors, and the fact that Scorpion cannot control the installation and setup, the bearings are not covered by the 2-Year warranty, nor is any subsequent damage caused to the motor by a bearing failure. Bearings are a normal wear item, and as such, need to be maintained and changed periodically. For maximum life, make sure that a sufficient gap is left between the pinion and main gear during motor installation to avoid binding, and put a small drop of oil on each bearing every 5-6 flights. It is the responsibility of the pilot to ensure that the bearings are maintained properly.

Specifications:
Stator Diameter: 40.0 mm (1.575 in)
Stator Thickness: 20 mm (0.787 in)
Number of Stator Slots: 12
Number of Magnet Poles: 10
Motor Wind: 3+4 Turn Delta
Motor Wire: 1-Strand 1.70mm
Motor Kv Value: 1320 RPM per Volt
No Load Current (Io): 5.74 Amps @ 10 Volts
Motor Resistance (Rm) per Phase: 0.006 Ohms
Maximum Continuous Current: 90 Amps
Max Continuous Power (6-cell Li-Po): 1998 Watts
Motor Weight: 310 grams (10.94 oz.)
Outside Diameter: 49.50 mm (1.95 in.)
Shaft Diameter: 5.98 mm (0.235 in.)
Shaft Length, From Mounting Face: 30.8 mm (1.21 in.)
Motor Body Length: 49.2 mm (1.94 in.)
Overall Shaft Length: 71.0 mm (2.79 in.)
Max LiPo Cell: 6s
Peak Current: 105 Amps (5 seconds)
Peak Continuous Power: 2331 Watts (5 seconds)
Motor Timing: 5deg
Drive Frequency: 8kHz
