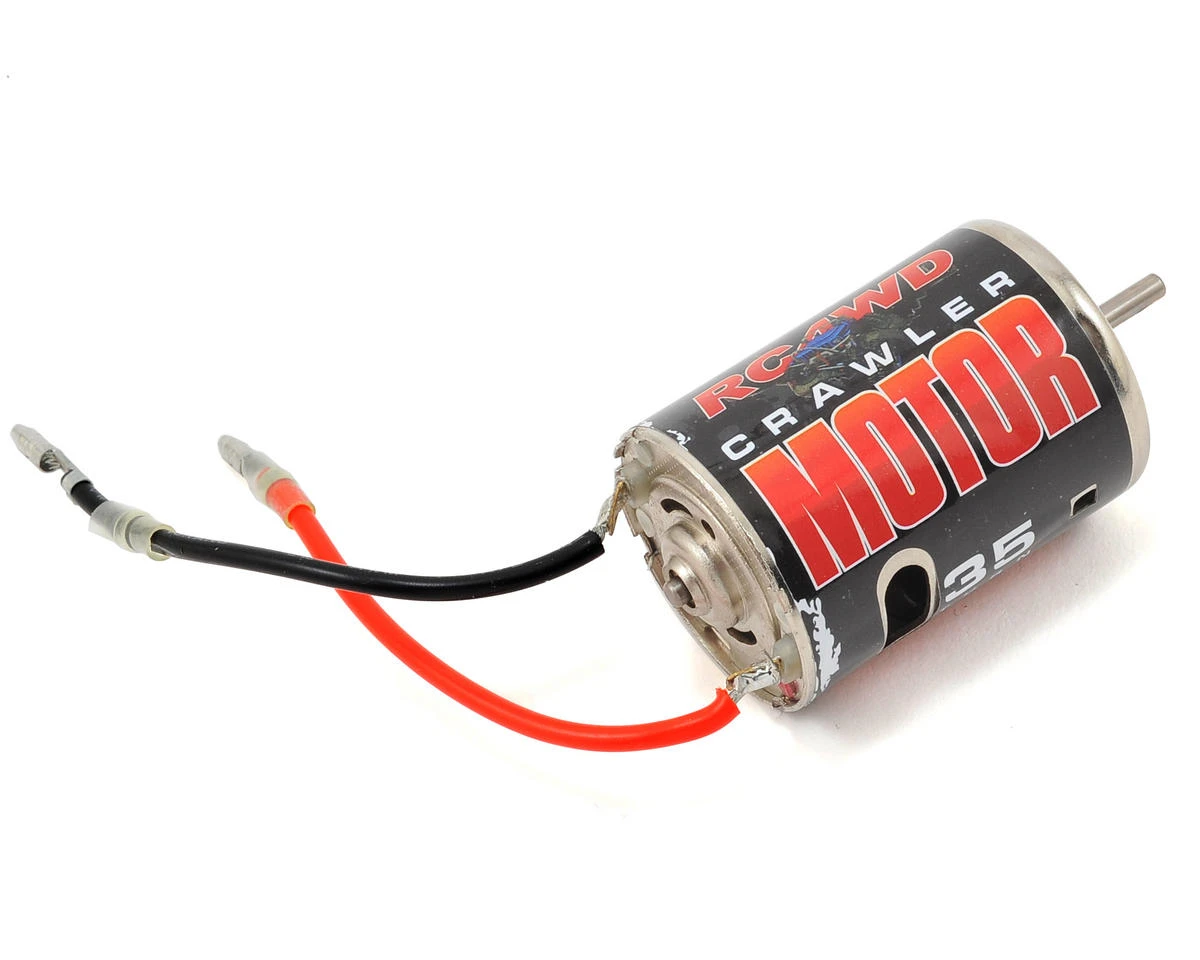

RC4WD 540 Crawler Brushed Motor (35T)

This is a 35 Turn RC4WD 540 Crawler Brushed Motor. This 35 Turn motor is custom made to fit all popular trucks, such as the Bully, AX10 and Trail Finder.

Features:

• Custom made 540 steel case
• Chrome plated case
• Built in capacitor for minimizing glitches
• High torque magnet and rotor
• Small footprint (50mm long)
• Tuned for rock climbing and scale driving
• Polished Bushings

Specifications:
RPM @7.2V (No Load): 12,500 (+/-10%), 1.25 Amp Current
Max Efficiency RPM @7.2V: 10,400 (+/-10%), 4.62 Amp Current
Operating Temperature Range: 22°F to 176°F (-30°C to +80°C)
Motor End Play: .50mm max
Noise Level: < 60db

This product was added to our catalog on March 18, 2014
