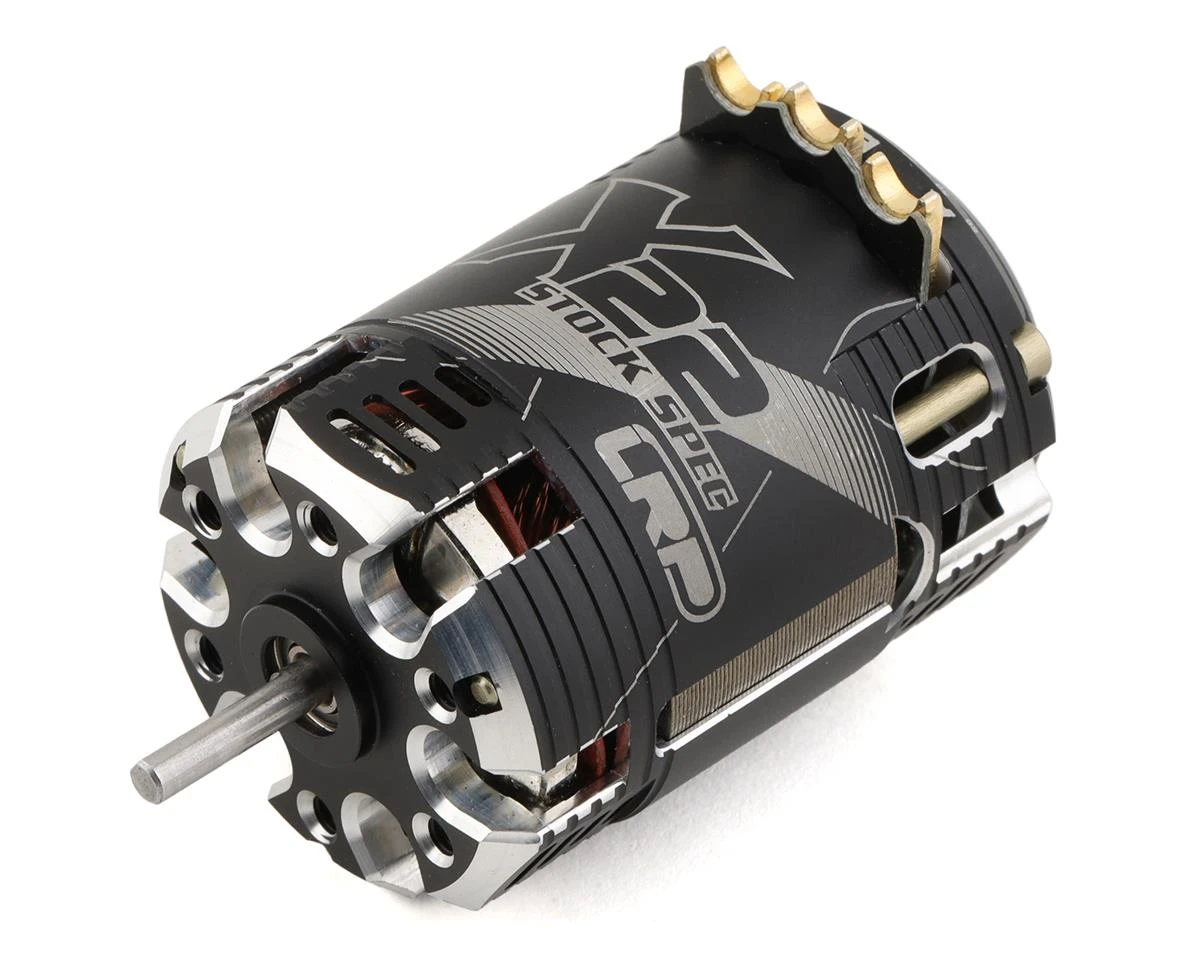

LRP X22 Stock Spec 540 Sensored Brushless Motor (13.5T) (30° Fixed Timing)

The LRP X22 Stock Spec Motor is a completely redesigned electric motor that is designed for the most extreme performance. Using high quality materials, which guarantee a perfect current flow, in a housing with large cooling openings, aluminum end plate and light aluminum screws make it great for on/off-road performance.

This stock spec motor features a fixed timing set to 30° and can be used in compliance with certain track regulations. This motor uses a biaxial, balanced, sintered rotor shaft with longer mounting surface in the 2018 specification, combined with smaller 3x10x4 ABEC-5 precision bearings, ensure precise and vibration-free running. The X22 motor series is designed to meet the requirements of IFMAR, EFRA, ROAR, FEMCA, JMRCA, BRCA and DMC.

NOTE: When using this motor with a LRP Flow X ESC, a LRP Flow X Level Converter Sensor Wire is required (LRP500902/LRP500903).

• Air Vent features increased cooling surface and openings for maximum heat dissipation
• Uses competition grade materials for most efficient current flux and improved driving feel

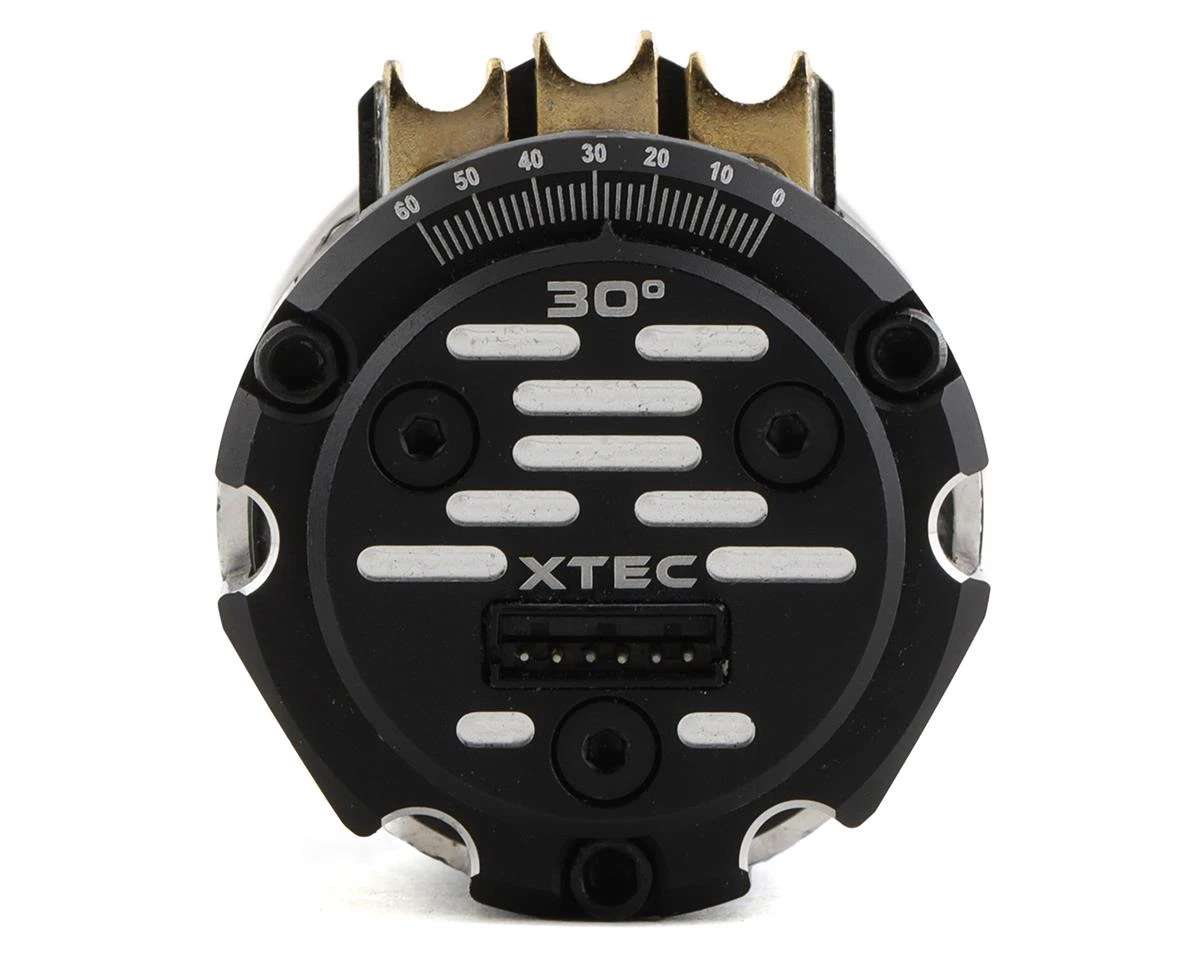

• Fixed timing to be in compliance with certain track regulations
• Highest grade magnet material with updated shaft preparation for maximum performance strength and reliability
• Military quality black anodizing
• Dual axis balanced rotor
• Machined 7075-T6 housing
• Improved power delivery and efficiency

Turn: 13.5T

Type: Sensored Brushless

Voltage: 1-2S LiPo

Winding: Star (Multi-strand Copper Winding)

Diameter: 35.9mm

Length: 52.2mm

Weight: 149-155g

Rotor Diameter: 12.5mm
