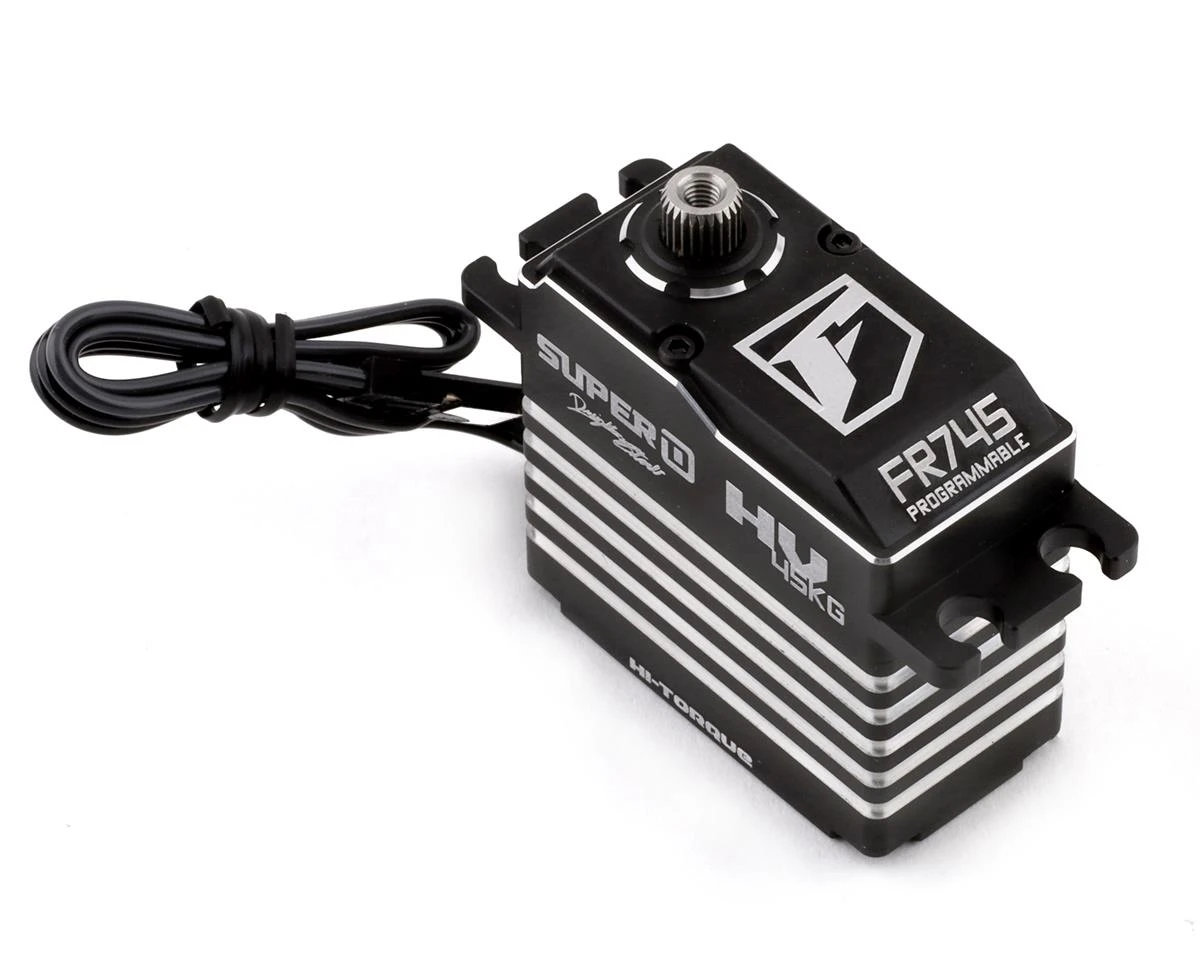

Fantom FR745 “Super D” Standard Programmable Servo. This servo was developed with the help from Fantom team driver Dreighton Stoub a.k.a. “Super D”. The gear train is powered by a brushless motor and included in the package is an aluminum servo horn.
Features:
- High Performance Standard Profile Digital Racing Servo
- Precision Steel Gears
- Chrome Steel Shaft
- High Performance Brushless Motor
- Triple Ball Bearings
- Full Aluminum Cooling Case
- Water and Dust Resistant (not water proof)
- Programmable with Fantom USB Programmer (FAN22805)
- Includes 25 Tooth Aluminum Servo Horn
- Ideal for for all surface 1/10 and 1/8 scale racing applications
Specifications:
- Operating Voltage: 4.8-8.4 V
- Speed:
- 6.0V: 0.115sec/60°
- 7.4V: 0.100sec/60°
- 8.4V: 0.085sec/60°
- Stall Torque:
- 6.0V: 34 kg-cm (473 oz-in)
- 7.4V: 39 kg-cm (542 oz-in)
- 8.4V: 45 kg-cm (625 oz-in)
- Control System: PWM (Pulse Width Modulation)
- Signal Mode: Digital
- Refresh Rate: 333 Hz
- Neutral Position: 1520uS
- Signal Range: 500 to 2500 uSec
- Dead Band: 2 uSec
- Operating Travel: 180º ± 10°
- Mechanical Angle: 220°
- Gears: Steel
- Case Material: Full Aluminum
- Size LxWxH: 40mmx20x37.2mm (1.57×0.78×1.46in)
- Operating Temperature: 5° to 158º F.
- Weight: 83g
- Connector Wire: 150mm JR
Includes:

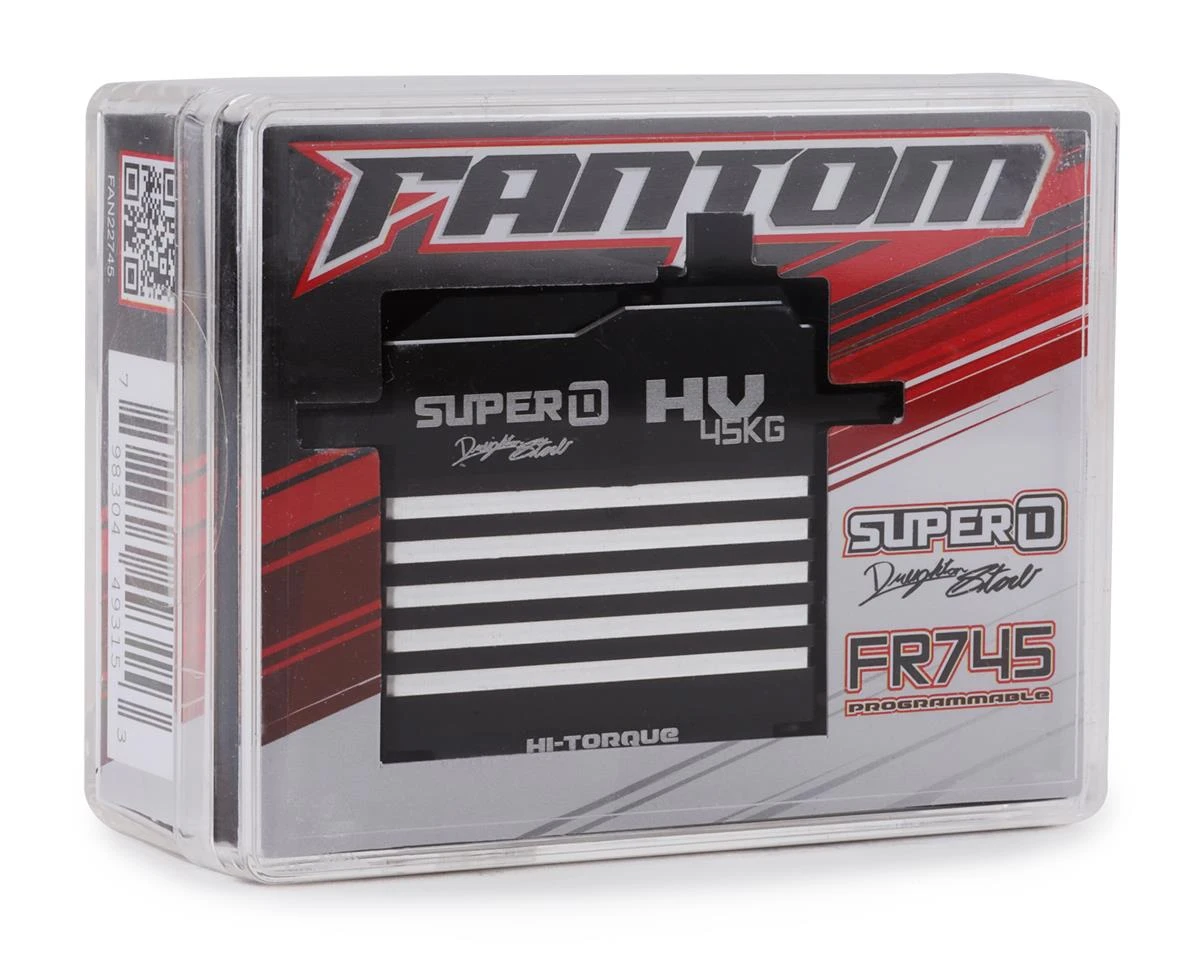

- (1) FR745 Servo
- (1) Aluminum servo horn
- (2) Plastic servo horns
- Mounting hardware
This product was added to our catalog on June 18, 2021
